Home /Products/Cable Soldering Machine/High-Quality Wire Harness Crimping Machine with 5 Servo Motors, Customizable Cutting Length, and High-Definition Screen

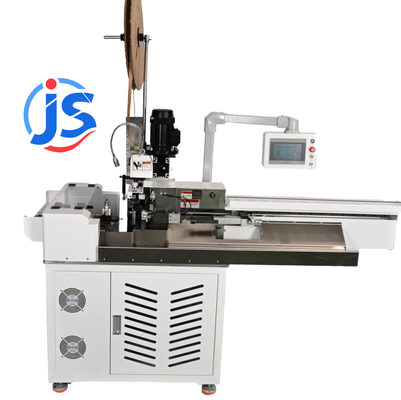

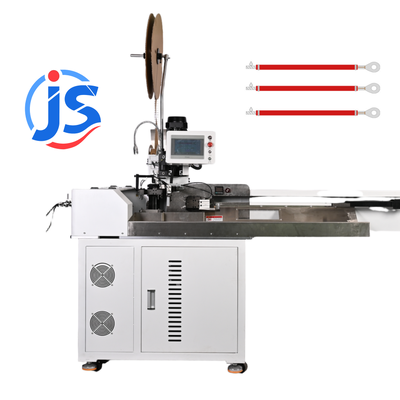

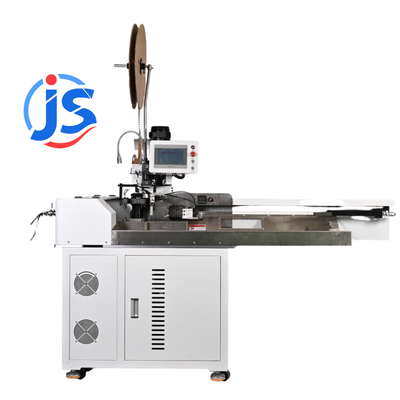

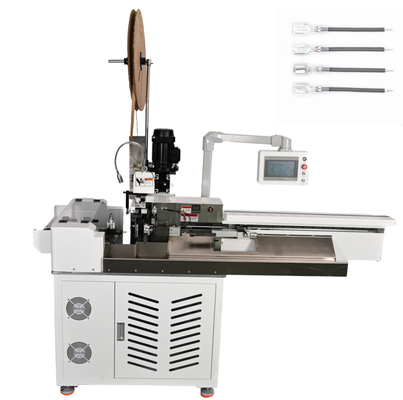

High-Quality Wire Harness Crimping Machine with 5 Servo Motors, Customizable Cutting Length, and High-Definition Screen

1
MOQ
6850
Price
High-Quality Wire Harness Crimping Machine with 5 Servo Motors, Customizable Cutting Length, and High-Definition Screen
Features Gallery Product Description Chat Now
Features
Specifications
Voltage: 220V
Rear Stripping Length: 1-12mm (Customizable Beyond Range)
Production Capacity: Approx. 5,000 Pcs/hour 8-wire: Approx. 8,000 Pcs/hour (Optional)
Size: 120*90*145cm
Weight: 300KG
Front Stripping Length: 1-9mm (Customizable Beyond Range)
Wire Range: 16AWG-32AWG
Cutting Length: 35-1000mm (customizable Outside The Range)
Twisting Length: Front/Rear: 3-12mm (Customizable Beyond Range)
Tinning Length: Front/Rear: 1-12mm (Customizable Beyond Range)
Servo Motors: 5 Sets
Display Screen: High-definition Screen, Brand: We-con
Linear Guides: Brand: HIWIN (Taiwan)
Ball Screws: Brand: TBI Motion (Taiwan)
Drives: 5 Sets
Highlight:

5 Servo Motors Wire Harness Crimping Machine

,

Customizable Cutting Length Automatic Soldering Machine

,

High-Definition Screen Terminal Crimping Machine
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-PY05E
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description
High Quality Wire Harness Tinning Quick Disconnect / Flag Terminal Crimping Machine

High Quality Wire Harness Tinning Quick Disconnect / Flag Terminal Crimping Machine

Download Technical Specifications (3-HR-PY05E.xlsx)
Machine Specifications
  • Driven by 5 servo motors with high-definition LCD display
  • Wire range: 16AWG-32AWG
  • Cutting length: 35-1000mm (customizable outside range)
  • Front stripping length: 1-9mm (customizable outside range)
  • Rear stripping length: 1-12mm (customizable outside range)
  • Twisting length: 3-12mm (customizable outside range)
  • Tin plating length: 1-12mm (customizable outside range)
  • Production capacity: Approximately 5000 pieces/hour for 5 wires
