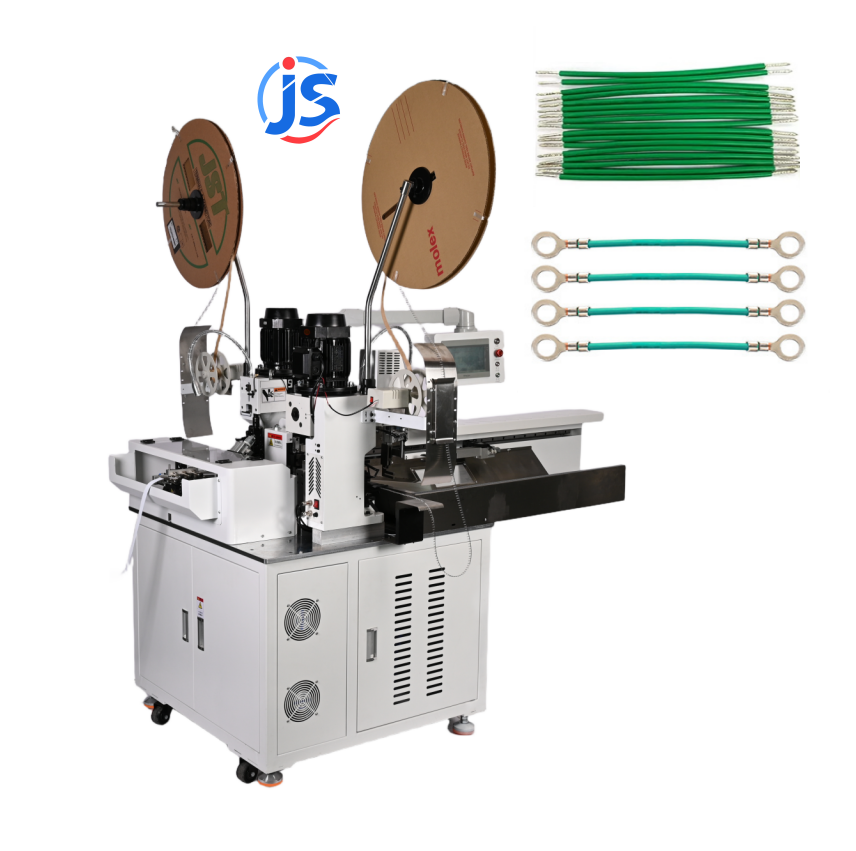

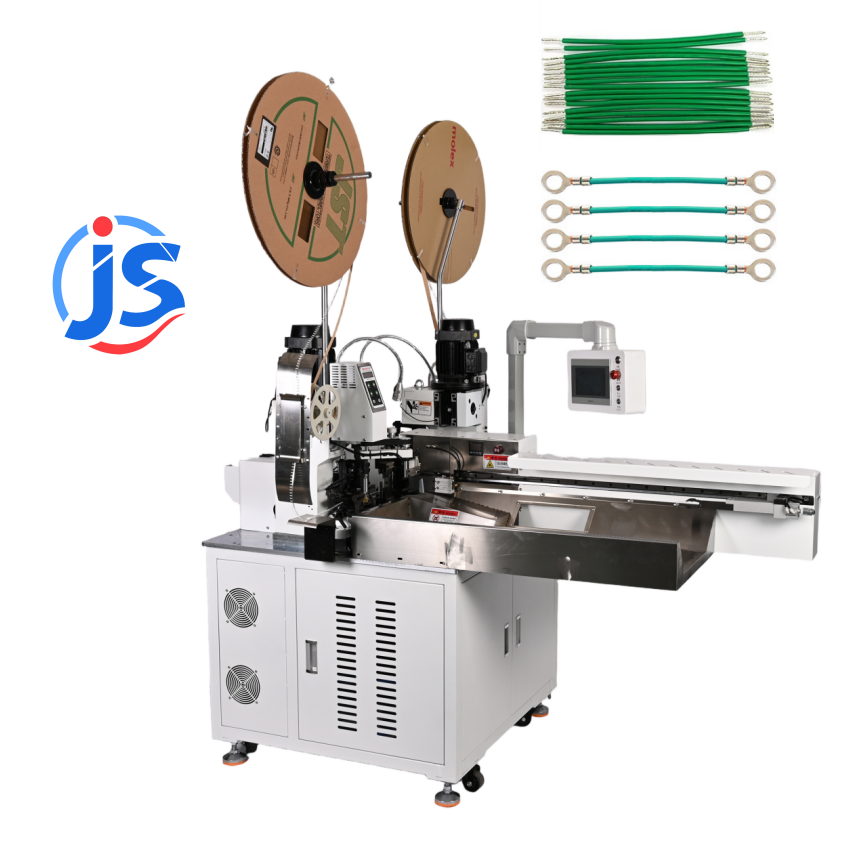

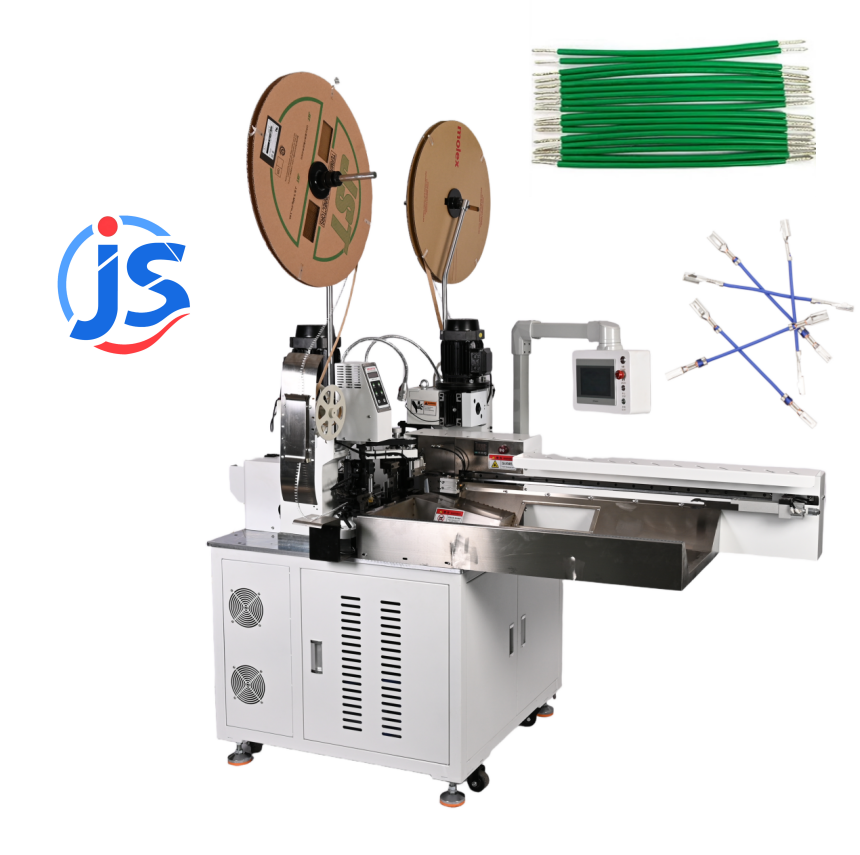

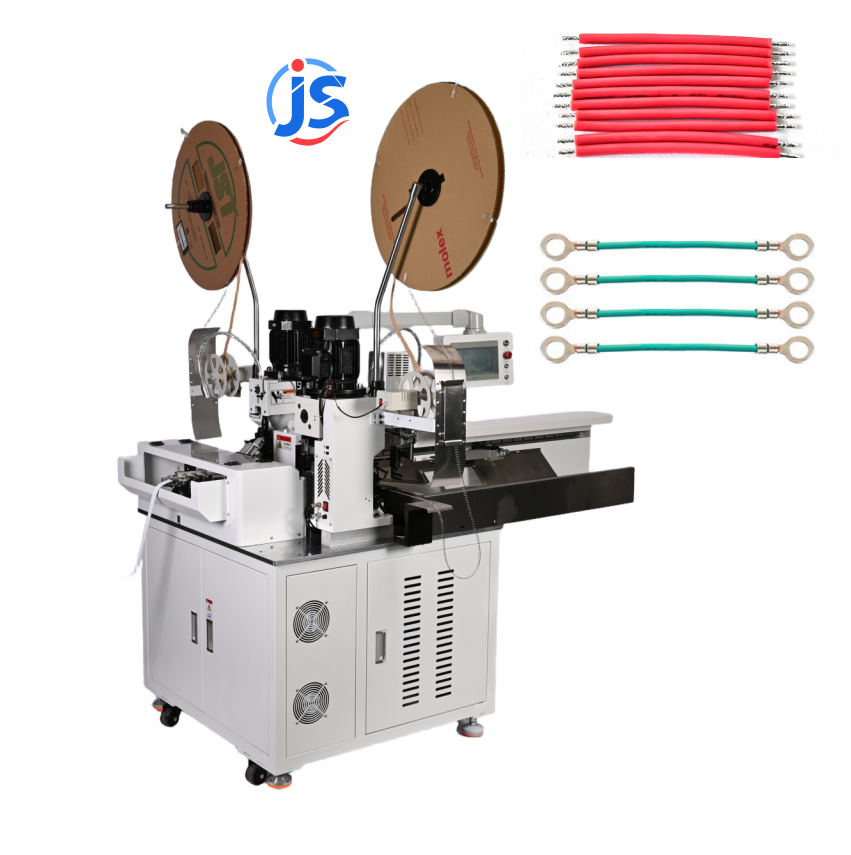

Servo Drive Automatic Soldering Machine Touch Screen Wire Stripping And Twisting Machine

1
MOQ
10500
Price
Servo Drive Automatic Soldering Machine Touch Screen Wire Stripping And Twisting Machine
Features Gallery Product Description Chat Now
Features
Specifications
Cutting Length: 20-1000mm (Customizable Beyond Range)
Pressure: 2 Ton
Production Capacity: 1×5 Wires, Approx. 5,000 Pcs/hour Ribbon Cable: 2P, 5 Wires: Approx. 4,000 Pcs/hour 3P-4P, 3 Wires: Approx. 2,400 Pcs/hour 6P-12P, 2 Wires: Approx. 1,500 Pcs/hour 8P-24P, 1 Wire: Approx. 700 Pcs/hour
Front Stripping Length: 1-7mm (Customizable Beyond Range)
Linear Guides: Brand: HIWIN (Taiwan)
Ball Screws: Brand: TBI Motion (Taiwan)
Display Screen: High-definition Screen, Brand: We-con
Motors & Drives: 6 Sets Of Servo Motors & Drives
Electronic Wire: 18AWG-32AWG
Tinning Length: 1-12mm (Customizable Beyond Range)
Cylinders: Brand: Airtac (Taiwan)
Twisting Length: 3-12mm (Customizable Beyond Range)
Ribbon Cable: 2P-4P
Rear Stripping Length: 1-12mm (Customizable Beyond Range)
Highlight:

Servo Drive Automatic Soldering Machine

,

Automatic Soldering Machine Touch Screen

,

Touch Screen Wire Soldering Machine
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-2DSC
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description
Fully Automatic Wire Stripping and Soldering Machine with Dual Line Processing, Adjustable Sizes, and 5,000 pcs/hour Capacity
Technical Specifications
Download Technical Specifications Sheet
  • Dual Line Processing Mode and Wide Line Compatibility
    Supports two working specifications: 18AWG-32AWG cable handling and 2P-24P cable handling, covering the most common sizes of thin electronic wires to meet diverse wiring production needs.
  • Adjustable Multi-Size Machining Parameters
    Fully customizable processing dimensions: cutting length can be adjusted between 20mm and 1000mm, front and rear peel length 1-10mm, twist length 3-12mm, tin plating length 1-12mm. Flexible adaptation to different terminal assembly and welding requirements.
  • Efficient Production Capacity
    Wire Type Configuration Output (pcs/hour)
    Single Wire 1×5 wires Approx. 5,000
    Ribbon Cable 2P, 5 wires Approx. 4,000
    Ribbon Cable 3P-4P, 3 wires Approx. 2,400
    Ribbon Cable 6P-12P, 2 wires Approx. 1,500
    Ribbon Cable 8P-24P, 1 wire Approx. 700
Exhibition & Events
Junsheng equipment exhibition and trade show display
Packaging & Certification
Junsheng product packaging and shipping process
Junsheng product quality certification
