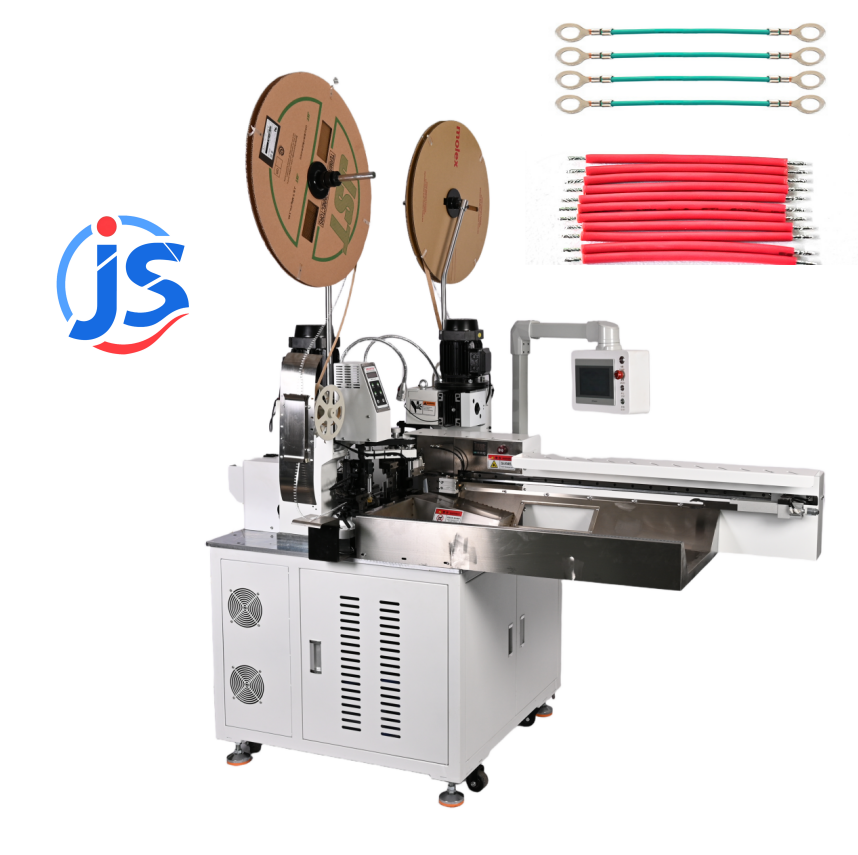

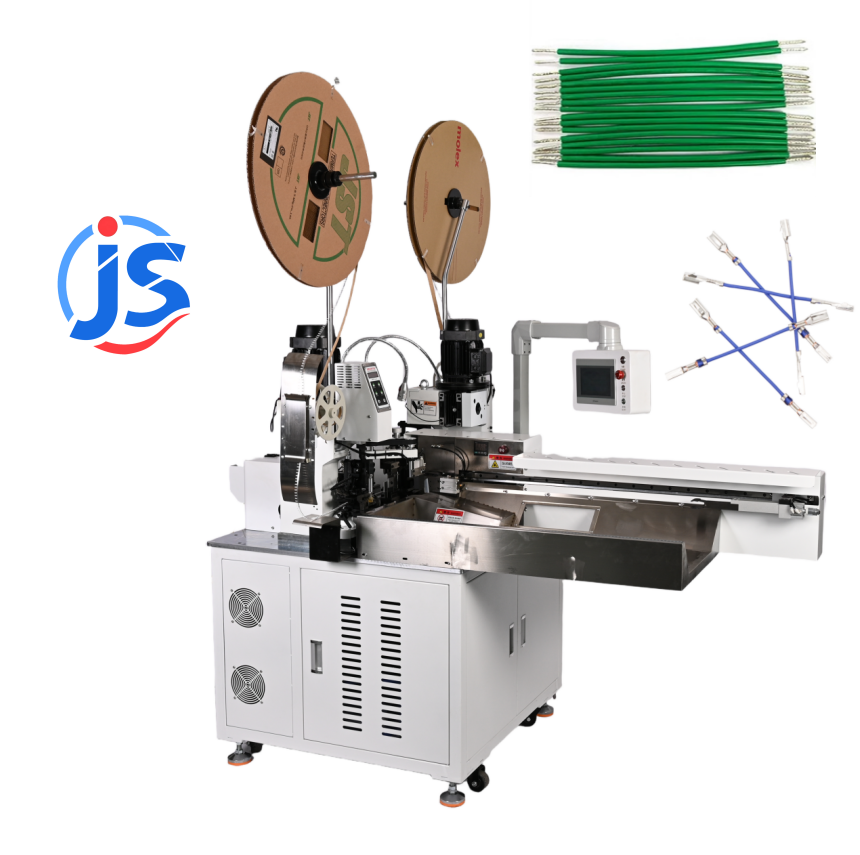

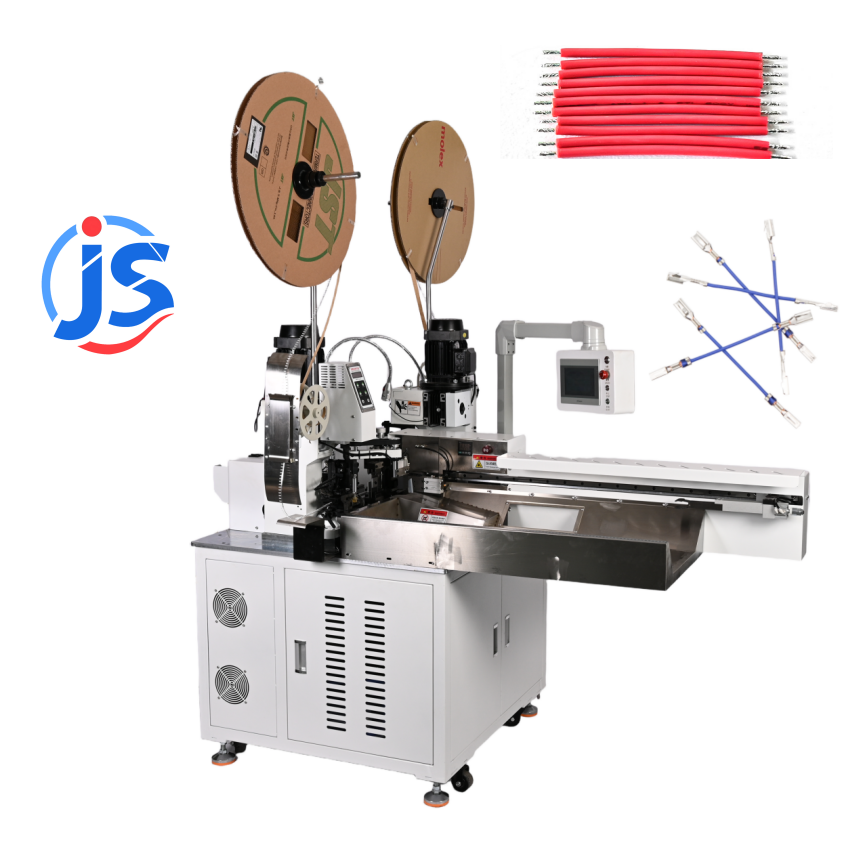

Ribbon Cable Automatic Soldering Machine 2Ton Cut Strip Crimp Machine

1
MOQ
11000
Price
Ribbon Cable Automatic Soldering Machine 2Ton Cut Strip Crimp Machine
Features Gallery Product Description Chat Now
Features
Specifications
Front Stripping Length: 1-7mm (Customizable Beyond Range)
Linear Guides: HIWIN (Taiwan)
Ball Screws: TBI Motion (Taiwan)
Cutting Length: 20-1000mm (Customizable Beyond Range)
Ribbon Cable: 2P-4P
Twisting Length: 3-12mm (Customizable Beyond Range)
Motors & Drives: 6 Sets Of Servo Motors & Drives
Production Capacity: 1×5 Wires, Approx. 5,000 Pcs/hour Ribbon Cable: 2P, 5 Wires: Approx. 4,000 Pcs/hour 3P-4P, 3 Wires: Approx. 2,400 Pcs/hour 6P-12P, 2 Wires: Approx. 1,500 Pcs/hour 8P-24P, 1 Wire: Approx. 700 Pcs/hour
Rear Stripping Length: 1-12mm (Customizable Beyond Range)
Electronic Wire: 18AWG-32AWG
Cylinders: Airtac (Taiwan)
Tinning Length: 1-12mm (Customizable Beyond Range)
Display Screen: High-definition Screen, We-con
Pressure: 2 Ton
Highlight:

Ribbon Cable Automatic Soldering Machine

,

Automatic Soldering Machine 2Ton

,

2Ton Cut Strip Crimp Machine
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-2DSC
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description
Automatic Wire Stripping and Soldering Machine with Dual Line Processing, Adjustable Multi Size Machining, and Efficient Production Capacity
Product Documentation

Download Technical Specifications (6-HR-2DSC.xlsx)

Key Features
  • Dual Line Processing Mode and Wide Line Compatibility
    Supports two working specifications: 18AWG-32AWG cable handling and 2P-24P cable handling, covering the most common sizes of thin electronic wires to meet diverse wiring production needs.
  • Adjustable Multi-Size Machining Parameters
    Fully customizable processing dimensions: cutting length can be adjusted between 20mm and 1000mm, front and rear peel length 1-10mm, twist length 3-12mm, tin plating length 1-12mm. Flexible adaptation to different terminal assembly and welding requirements.
  • Efficient Production Capacity
    Stable high hourly output with various configurations:
Configuration Production Capacity
1*5 wires Approx. 5,000 pcs/hour
Ribbon Cable 2P, 5 wires Approx. 4,000 pcs/hour
Ribbon Cable 3P-4P, 3 wires Approx. 2,400 pcs/hour
Ribbon Cable 6P-12P, 2 wires Approx. 1,500 pcs/hour
Ribbon Cable 8P-24P, 1 wire Approx. 700 pcs/hour

Exhibition & Trade Shows
Junsheng equipment exhibition and trade show display showcasing industrial automation equipment
Packaging & Quality Assurance
Junsheng product packaging and shipping process showing secure packaging methods
Junsheng quality certification and compliance documentation
