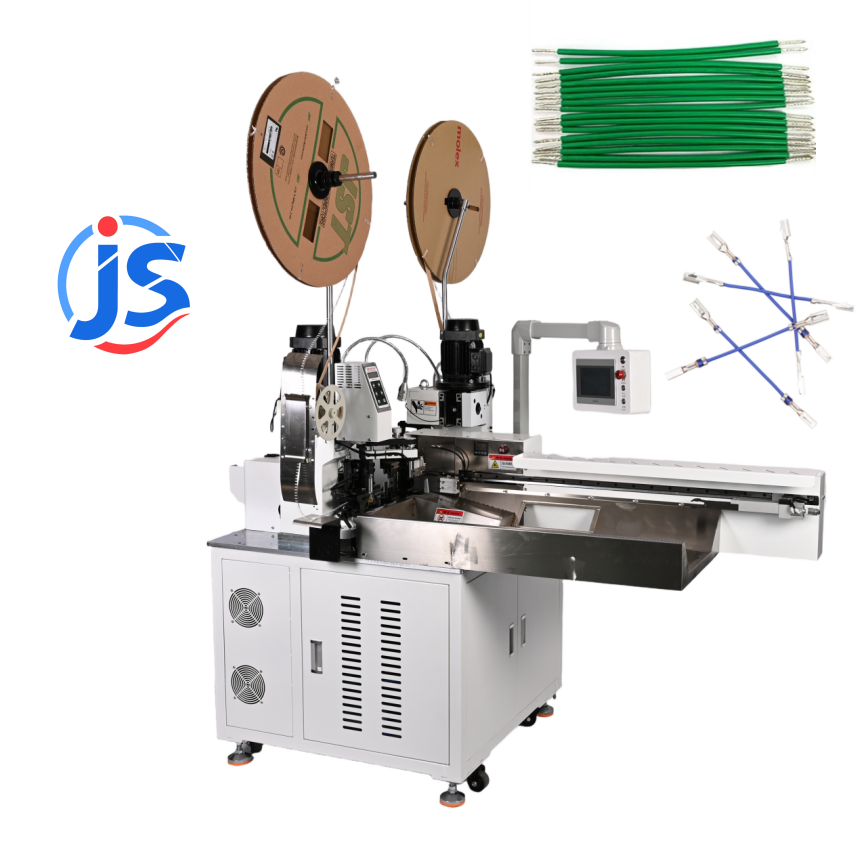

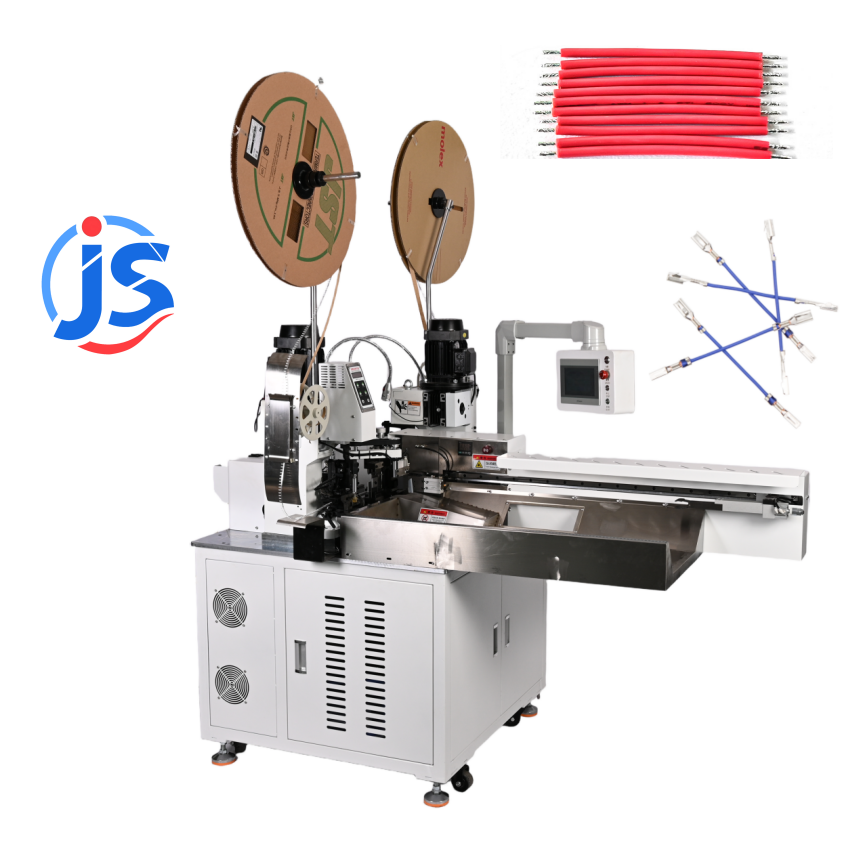

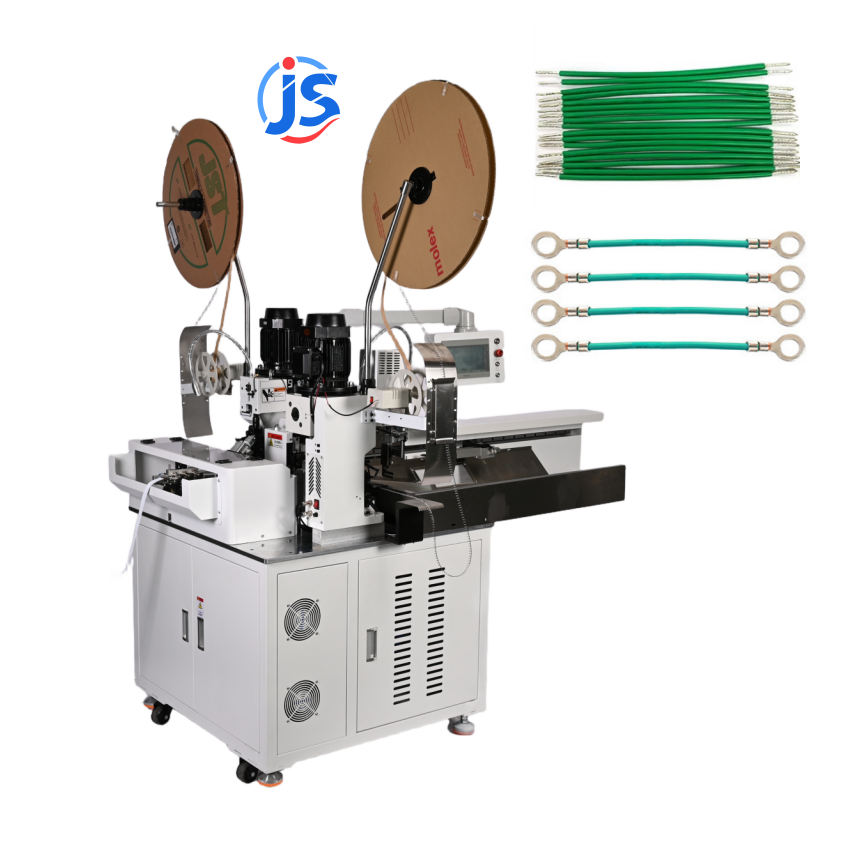

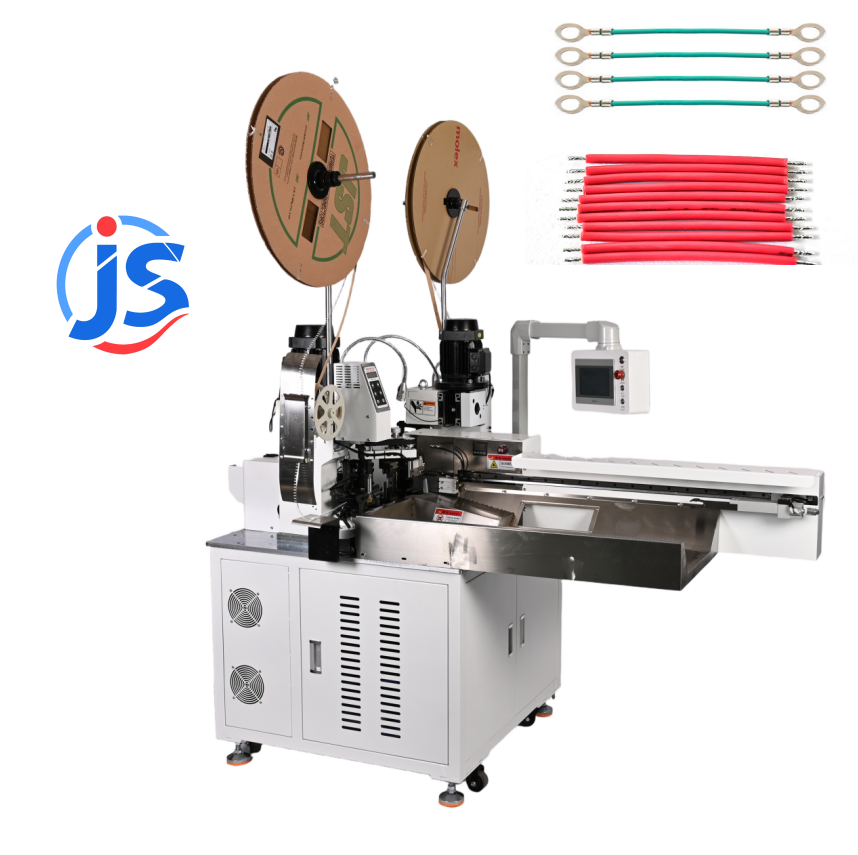

Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine

1
MOQ
10800
Price
Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
Features Gallery Product Description Chat Now
Features
Specifications
Production Capacity: 1×5 Wires, Approx. 5,000 Pcs/hour Ribbon Cable: 2P, 5 Wires: Approx. 4,000 Pcs/hour 3P-4P, 3 Wires: Approx. 2,400 Pcs/hour 6P-12P, 2 Wires: Approx. 1,500 Pcs/hour 8P-24P, 1 Wire: Approx. 700 Pcs/hour
Front Stripping Length: 1-7mm (Customizable Beyond Range)
Linear Guides: HIWIN (Taiwan)
Ball Screws: TBI Motion (Taiwan)
Display Screen: High-definition Screen, We-con
Motors & Drives: 6 Sets Of Servo Motors & Drives
Cutting Length: 20-1000mm (Customizable Beyond Range)
Pressure: 2 Ton
Electronic Wire: 18AWG-32AWG
Tinning Length: 1-12mm (Customizable Beyond Range)
Cylinders: Airtac (Taiwan)
Twisting Length: 3-12mm (Customizable Beyond Range)
Ribbon Cable: 2P-4P
Rear Stripping Length: 1-12mm (Customizable Beyond Range)
Highlight:

Touch Screen Automatic Soldering Machine

,

Automatic Soldering Machine Servo Drive

,

Servo Drive Stripping And Crimping Machine
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-2DSC
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description
Fully Automatic Wire Stripping and Soldering Machine with 5,000 pcs/hour Capacity for 18AWG-32AWG Wires and HIWIN Linear Guides
Download Technical Specifications
Key Features
  • Dual line processing mode and wide line compatibility - Supports two working specifications: 18AWG-32AWG cable handling and 2P-24P cable handling, covering the most common sizes of thin electronic wires to meet diverse wiring production needs.
  • Adjustable multi size machining parameters - Fully customizable processing dimensions: cutting length can be adjusted between 20mm and 1000mm, front and rear peel length 1-10mm, twist length 3-12mm, tin plating length 1-12mm. Flexible adaptation to different terminal assembly and welding requirements.
  • Efficient production capacity - Stable high hourly output with various configurations.
Production Capacity
Configuration Output (per hour)
1×5 wires Approx. 5,000 pcs/hour
Ribbon Cable - 2P, 5 wires Approx. 4,000 pcs/hour
Ribbon Cable - 3P-4P, 3 wires Approx. 2,400 pcs/hour
Ribbon Cable - 6P-12P, 2 wires Approx. 1,500 pcs/hour
Ribbon Cable - 8P-24P, 1 wire Approx. 700 pcs/hour

Facility & Operations
Shenzhen Junsheng Automation Equipment Company facility and equipment showing manufacturing workspace
Junsheng equipment exhibition and trade show display showcasing products at industry event
Junsheng product packaging and shipping process showing secure packaging methods
Junsheng quality certification and compliance documentation
