Home /Products/Cable Soldering Machine/Fully Automatic Soldering Machine with 5 Servo Motors, Customizable Cutting Length, and High-Definition Screen for Wire Harness Processing

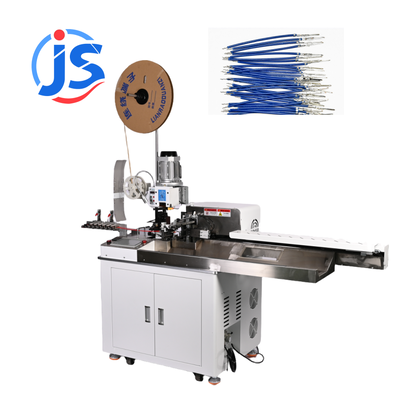

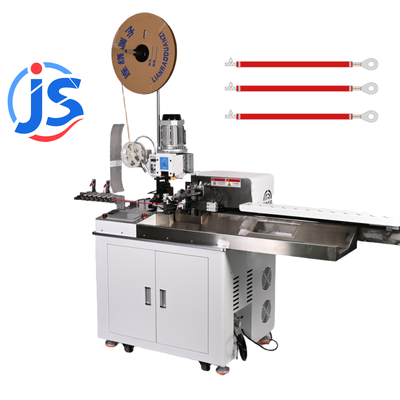

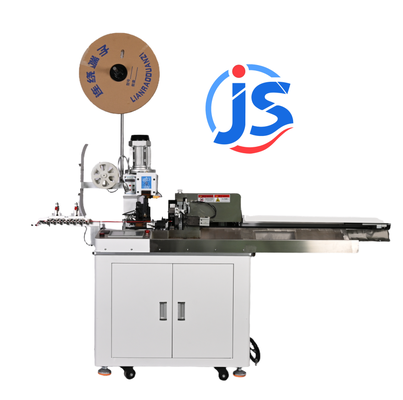

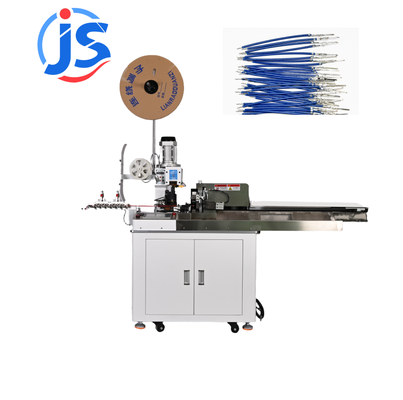

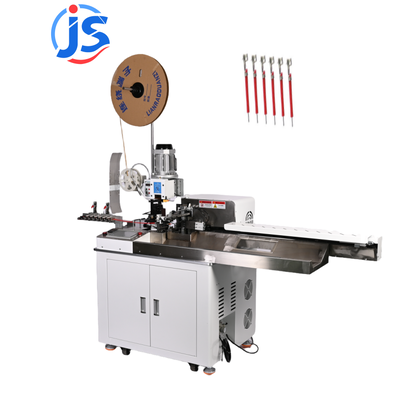

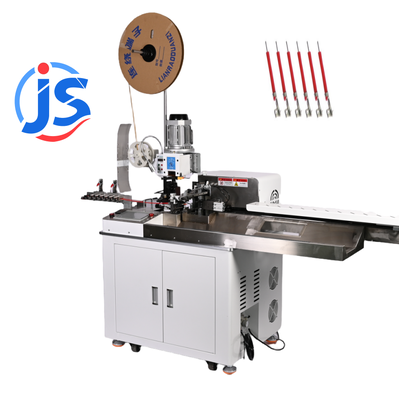

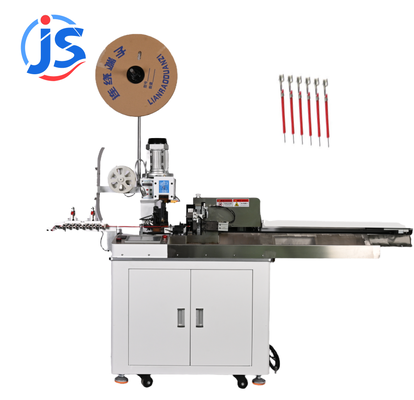

Fully Automatic Soldering Machine with 5 Servo Motors, Customizable Cutting Length, and High-Definition Screen for Wire Harness Processing

1
MOQ
6000
Price
Fully Automatic Soldering Machine with 5 Servo Motors, Customizable Cutting Length, and High-Definition Screen for Wire Harness Processing
Features Gallery Product Description Chat Now
Features
Specifications
Front Stripping Length: 1-8mm (Customizable Beyond Range)
Rear Stripping Length: 1-12mm (Customizable Beyond Range)
Wire Range: 16AWG-32AWG
Tinning Length: Front/Rear: 1-12mm (Customizable Beyond Range)
Weight: 300KG
Cutting Length: 35-1000mm (customizable Outside The Range)
Motors & Drives: 5 Sets Of Servo Motors & Drives
Twisting Length: Front/Rear: 3-12mm (Customizable Beyond Range)
Size: 120*90*145cm
Production Capacity: 5 Wire: Approx. 5,000 Pcs/hour
Voltage: 220V
Display Screen: High-definition Screen, Brand: We-con
Ball Screws: Brand: TBI Motion (Taiwan)
Cylinders Brand: Airtac (Taiwan)
Linear Guides: Brand: HIWIN (Taiwan)
Highlight:

5 Servo Motors Automatic Soldering Machine

,

Customizable Cutting Length Wire Harness Crimping Machine

,

High-Definition Screen Wire Processing Machine
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-BT05E
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description
Fully Automatic Wire Harness Tinning Spade / Fork Terminal Wire Stripping and Crimping Machine

Fully Automatic Wire Harness Tinning Spade / Fork Terminal Wire Stripping and Crimping Machine

Download Technical Specifications (2-HR-BT05E1.xlsx)
Machine Specifications
  • Driven by 5 servo motors with high-definition LCD display screen
  • Wire range: 16AWG-32AWG
  • Cutting length: 35-1000mm (customizable outside range)
  • Front stripping length: 1-8mm (customizable outside range)
  • Rear stripping length: 1-12mm (customizable outside range)
  • Twisting length: 3-12mm (customizable outside range)
  • Tin plating length: 1-12mm (customizable outside range)
  • Production capacity: Approximately 5000 pieces/hour for 5 wires
Factory
Fully automatic wire harness machine in factory setting
Close-up view of wire harness machine components
Wire harness machine operational view
Exhibition
Junsheng equipment exhibition and trade show display
Junsheng equipment exhibition and trade show display
Package And Shipping
Junsheng product packaging and shipping process
Junsheng product packaging and shipping process
Certificate
Junsheng quality certification
Junsheng quality certification
Tag:

Wire Soldering Machine

Automatic Wire Processing Machine

Strip And Crimp Machine
