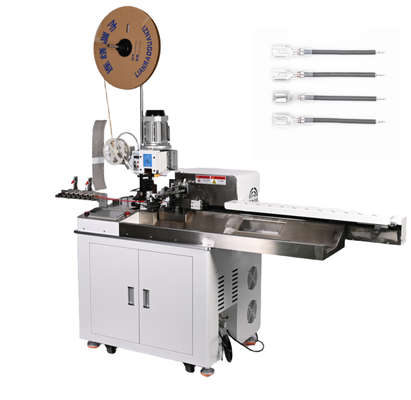

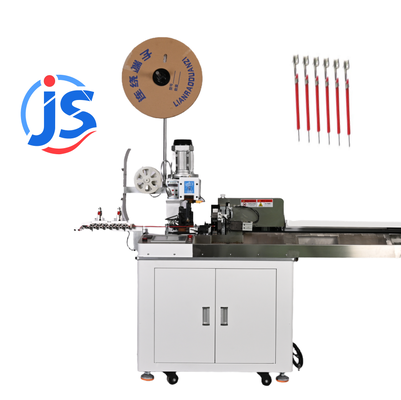

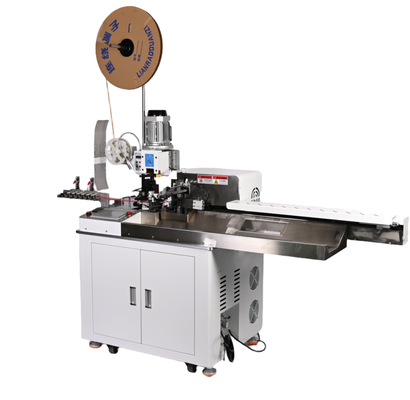

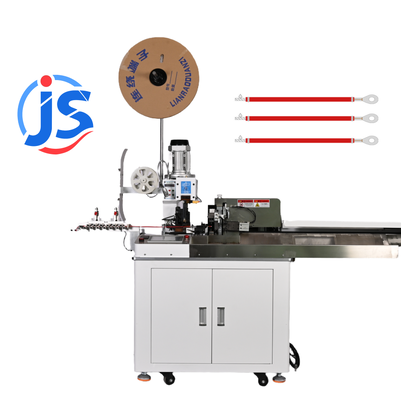

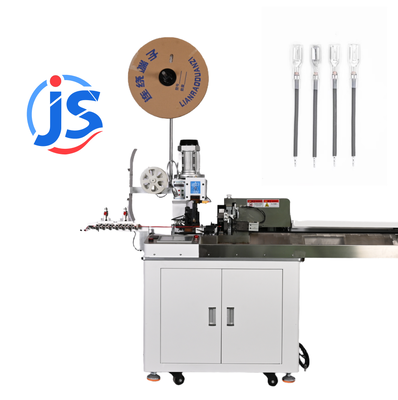

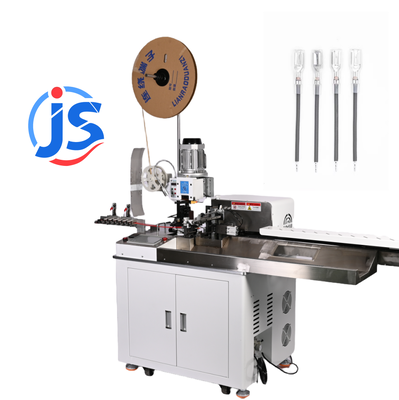

Fully Automatic Wire Harness Tinning Spade / Fork Terminal Crimping Machine and High-Definition Screen

1
MOQ
6000
Price
Fully Automatic Wire Harness Tinning Spade / Fork Terminal Crimping Machine and High-Definition Screen
Features Gallery Product Description Chat Now
Features
Specifications
Motors & Drives: 5 Sets Of Servo Motors & Drives
Rear Stripping Length: 1-12mm (Customizable Beyond Range)
Weight: 300KG
Size: 120*90*145cm
Front Stripping Length: 1-8mm (Customizable Beyond Range)
Tinning Length: Front/Rear: 1-12mm (Customizable Beyond Range)
Cutting Length: 35-1000mm (customizable Outside The Range)
Production Capacity: 5 Wire: Approx. 5,000 Pcs/hour
Wire Range: 16AWG-32AWG
Twisting Length: Front/Rear: 3-12mm (Customizable Beyond Range)
Voltage: 220V
Display Screen: High-definition Screen, Brand: We-con
Ball Screws: Brand: TBI Motion (Taiwan)
Cylinders Brand: Airtac (Taiwan)
Linear Guides: Brand: HIWIN (Taiwan)
Highlight:

5 Servo Motors Wire Harness Crimping Machine

,

Customizable Cutting Length Automatic Soldering Machine

,

High-Definition Screen Wire Processing Machine
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-BT05E
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description
Fully Automatic Wire Harness Tinning Spade / Fork Terminal Crimping Machine
Advanced automated solution for wire harness processing with integrated tinning and terminal crimping capabilities.
Download Technical Specifications (2-HR-BT05E1.xlsx)
Machine Specifications
  • Driven by 5 servo motors with high-definition LCD display screen
  • Wire range: 16AWG-32AWG
  • Cutting length: 35-1000mm (customizable outside range)
  • Front stripping length: 1-8mm (customizable outside range)
  • Rear stripping length: 1-12mm (customizable outside range)
  • Twisting length: 3-12mm (customizable outside range)
  • Tin plating length: 1-12mm (customizable outside range)
  • Production capacity: Approximately 5000 pieces/hour for 5 wires
Factory Operations
Fully Automatic Wire Harness Machine in factory setting
Close-up view of wire processing mechanism
Machine control panel and display interface
Exhibition Display
Junsheng equipment exhibition and trade show display
Junsheng equipment exhibition and trade show display
Packaging & Shipping
Junsheng product packaging and shipping process
Junsheng product packaging and shipping process
Quality Certification
Junsheng quality certification
Junsheng quality certification
