Display Screen:
High-definition Screen, Brand: We-con
Production Capacity:
18AWG-32AWG, 8-wire: Approx. 8,000 Pcs/hour14AWG-32AWG, 5-wire: Approx. 5,000 Pcs/hour
Ball Screws:
Brand: TBI Motion (Taiwan)
Linear Guides:
Brand: HIWIN (Taiwan)
Motors & Drives:
6 Sets Of Servo Motors & Drives
Twisting Length:
3-10mm (Customizable Beyond Range)
Weight:
300KG
Voltage:
220V
Front/Rear Stripping Length:
1-10mm (Customizable Beyond Range)
Cylinders:
Brand: Airtac (Taiwan)
Cutting Length:
20-1000mm (Customizable Beyond Range)
Tinning Length:
1-10mm (Customizable Beyond Range)
Wire Range:
18AWG-32AWG (8-wire);14AWG-32AWG (5-wire)
Dual Wire Processing:
5-wire & 8-wire Simultaneous Processing
Adjustable Parameters:
Cutting, Stripping, Twisting, Tinning Lengths Customizable
Dual Wire Modes:
5-wire & 8-wire Processing
Wire Compatibility:
14AWG-32AWG (5-wire); 18AWG-32AWG (8-wire)
Cutting Range:
20mm-1000mm
Stripping Range:
1-10mm
Twisting Range:
3-10mm
Tinning Range:
1-10mm
Output Rate:
5,000 Pcs/hour (5-wire); 8,000 Pcs/hour (8-wire)
Front Stripping Length:
1-10mm (Customizable Beyond Range)
Rear Stripping Length:
1-10mm (Customizable Beyond Range)
Efficient Production:
5,000 Pcs/hour (5-wire); 8,000 Pcs/hour (8-wire)
Servo Motors:
6 Sets
Customizable Dimensions:
Cutting: 20-1000mm; Stripping: 1-10mm; Twisting: 3-10mm; Tinning: 1-10mm
Efficient Capacity:
5,000 Pcs/hour (5-wire); 8,000 Pcs/hour (8-wire)
Stable Output:
5,000-8,000 Pcs/hour
Highlight:

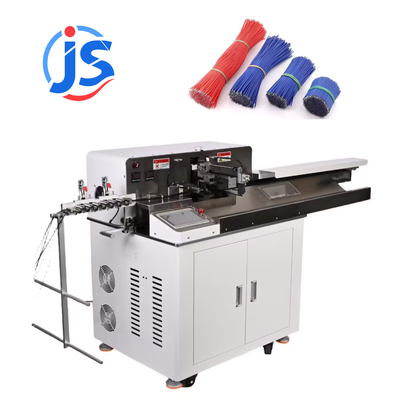

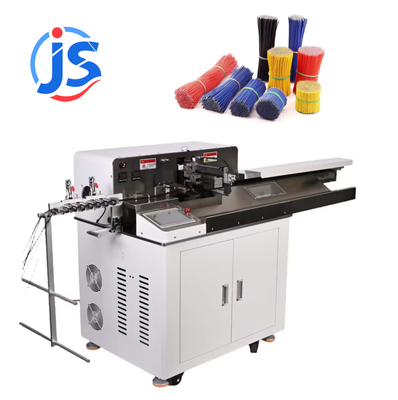

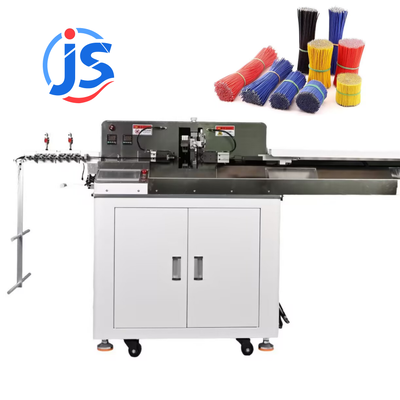

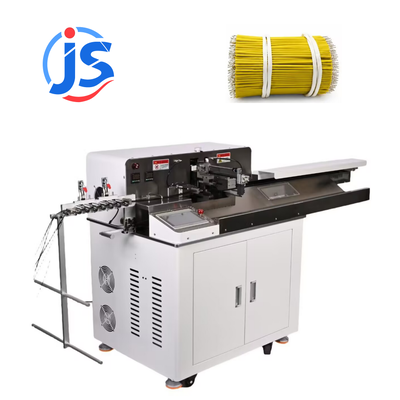

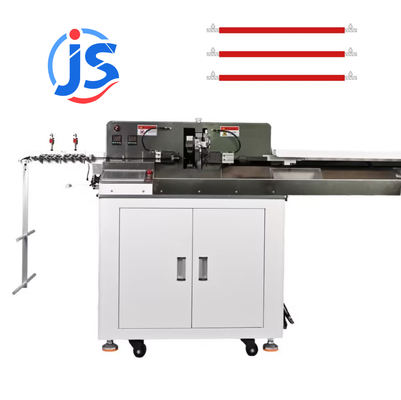

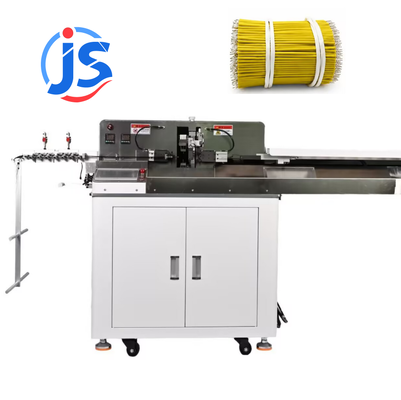

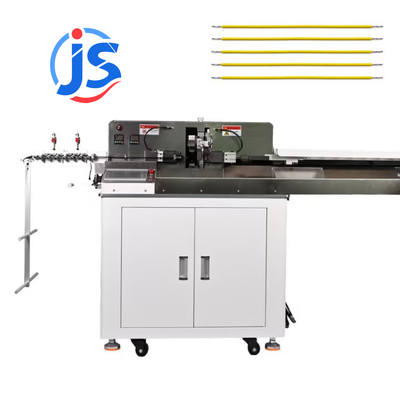

High-definition Screen Wire Harness Processing Machine
, 8000 pcs/hour Automatic Soldering Machine
, Customizable Cutting Length Wire Crimping Machine
