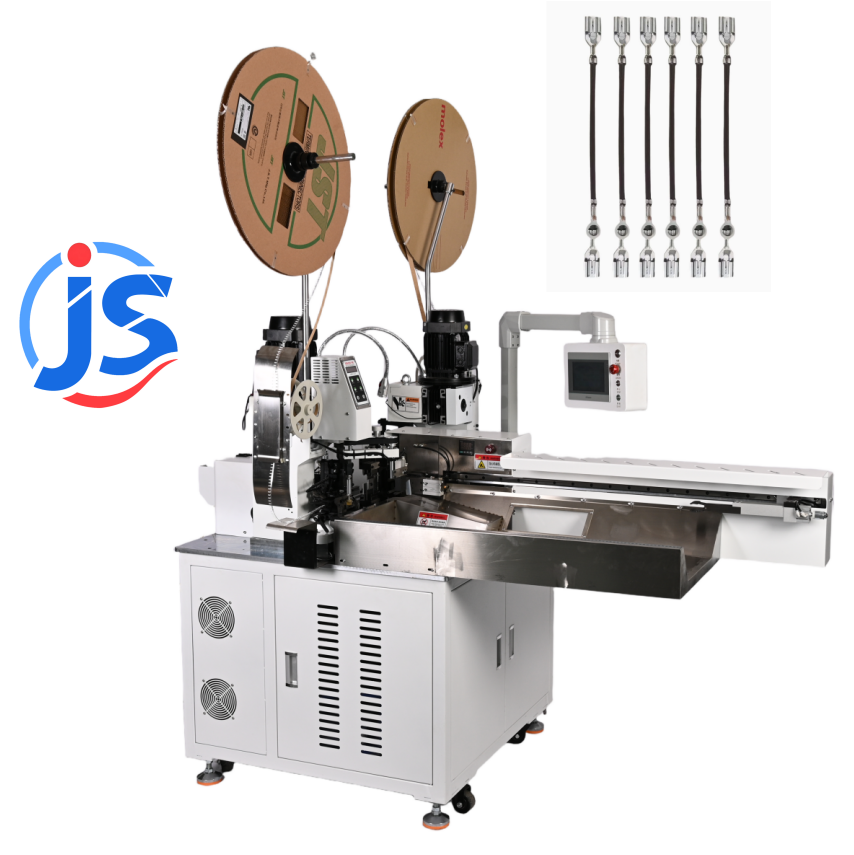

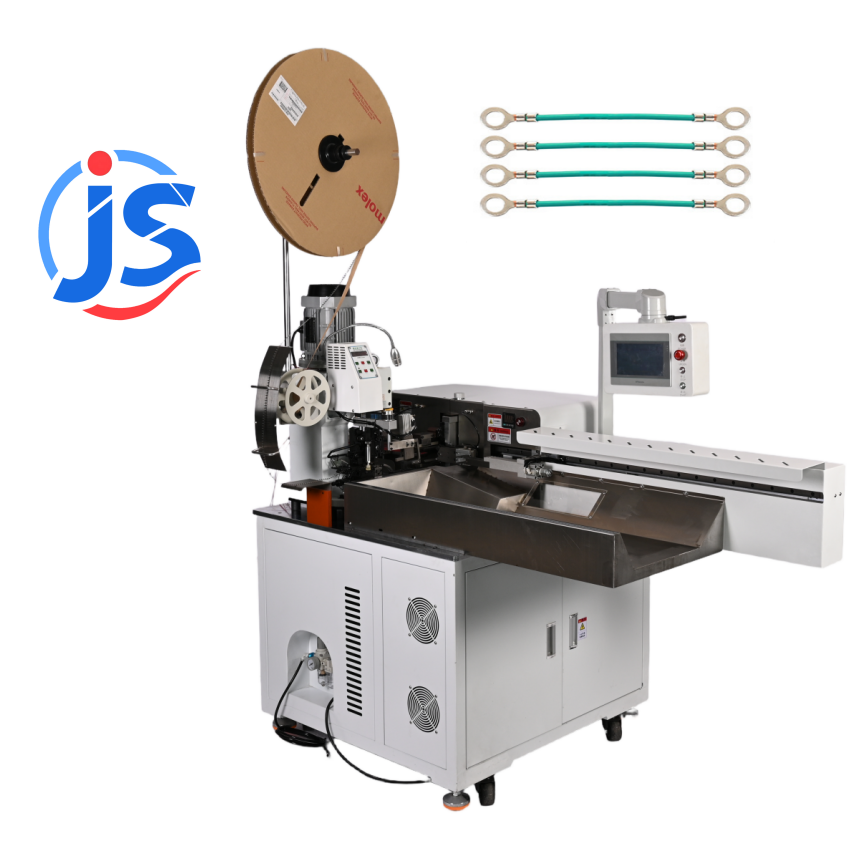

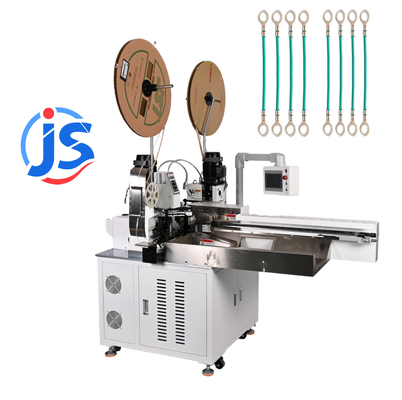

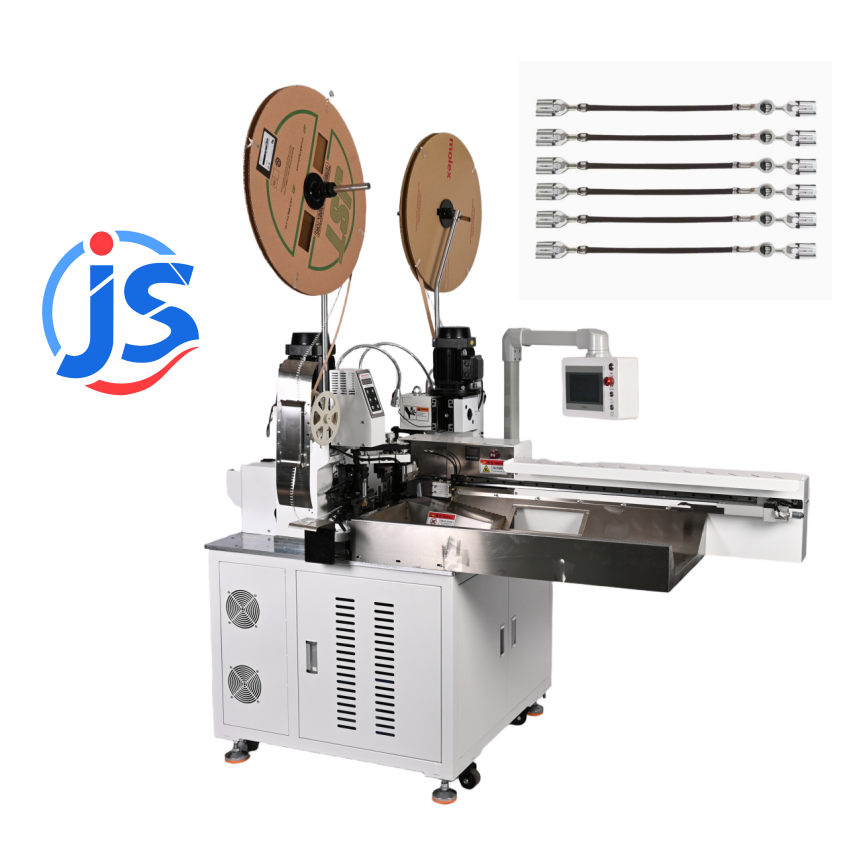

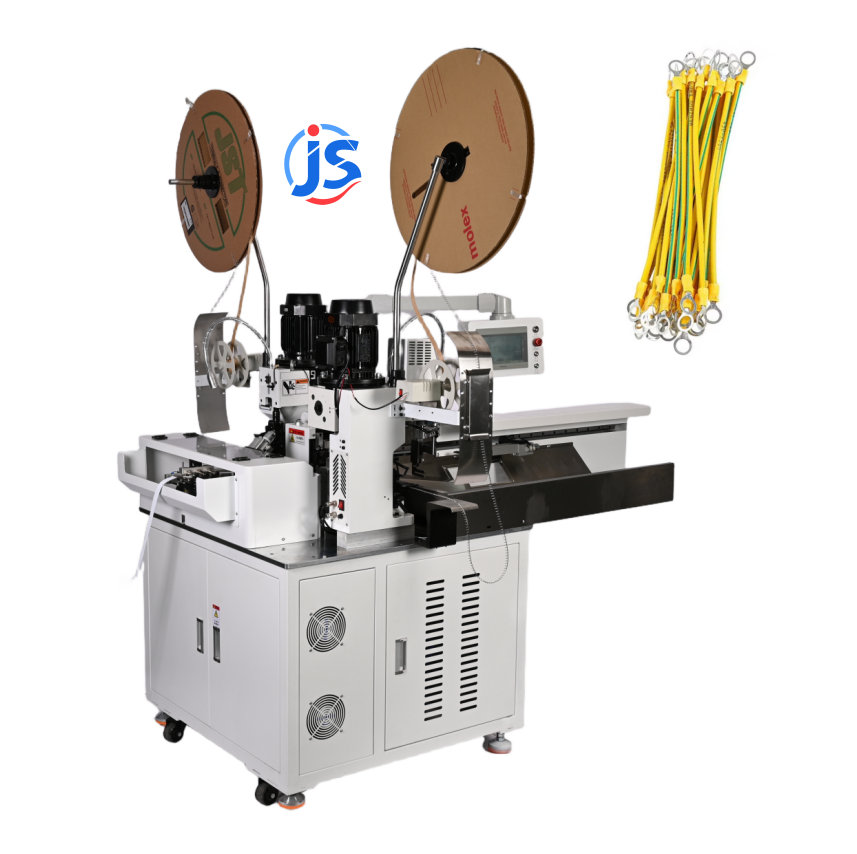

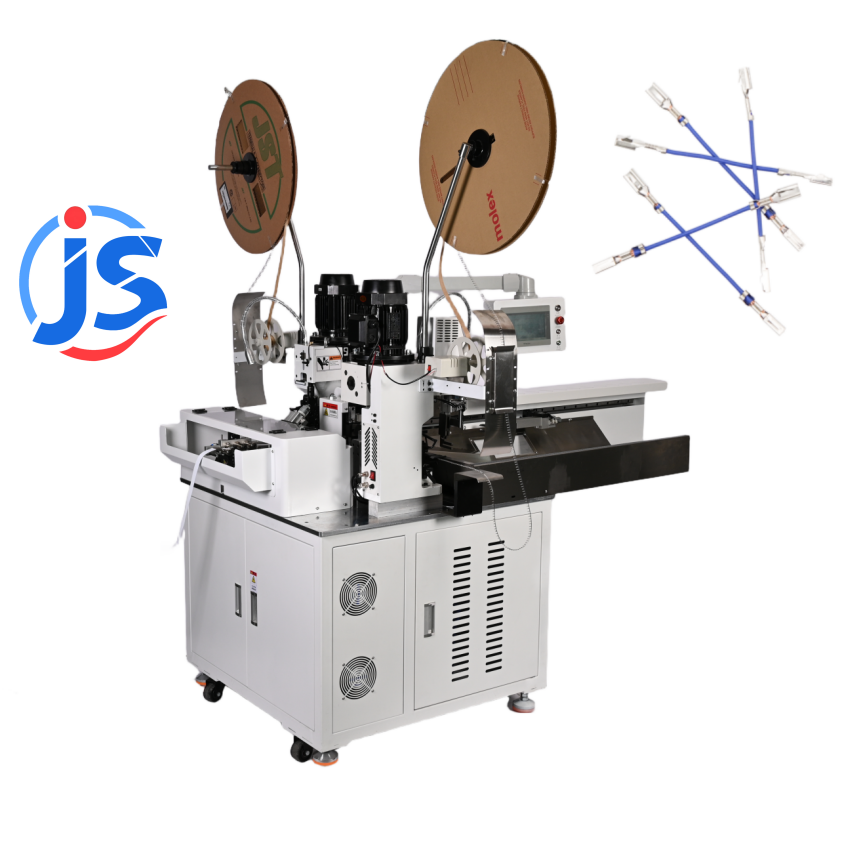

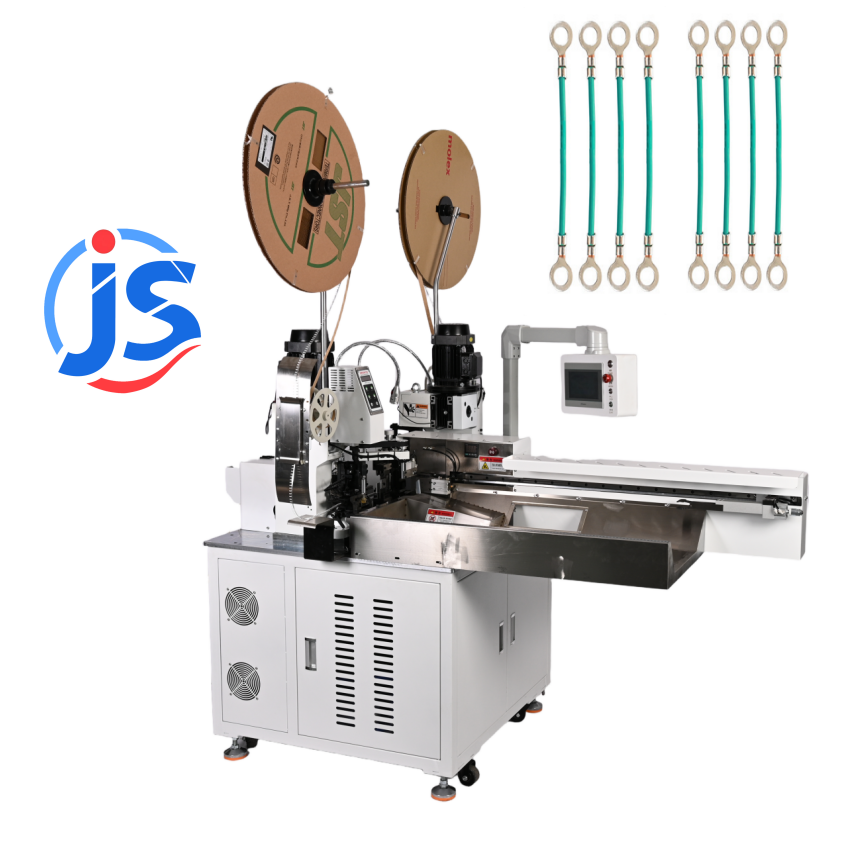

2Ton Wire Stripping And Cutting Machine Cat6 Wire Tinning Machine

1
MOQ
8700
Price
2Ton Wire Stripping And Cutting Machine Cat6 Wire Tinning Machine
Features Gallery Product Description Chat Now
Features
Specifications
Weight: 300KG
Pressure: 2Ton (Optional: 3T Or 4T)
Production Capacity: 5 Wire: Approx. 5,000 Pcs/hour 8-wire: Approx. 8,000 Pcs/hour
Voltage: 220V
Rear Stripping Length: 1-9mm (Customizable Beyond Range)
Cutting Length: 40-1000mm (Customizable Beyond Range)
Front Stripping Length: 1-12mm (Customizable Beyond Range)
Motors & Drives: 6 Sets Of Servo Motors & Drives
Display Screen: High-definition Screen, Brand: We-con
Linear Guides: Brand: HIWIN (Taiwan)
Cylinders Brand: Brand: Airtac (Taiwan)
Ball Screws: Brand: TBI Motion (Taiwan)
Wire Range: 15AWG-32AWG
Servo Motors: 6 Yancon Servo Motors, Mitsubishi Servo Optional
Guides: HIWIN Guides
Screws: TBI Screws
Cylinders: Airtac Cylinders
Molds: Fengcheng Molds
Control System: We-con Touch Screen & PLC Control
Parameter Memory: Yes
Highlight:

2Ton Wire Stripping And Cutting Machine

,

Wire Stripping And Cutting Machine Cat6

,

Cat6 Wire Tinning Machine
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-602-5
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description
Fully Automatic Cat6 Cable Wire Stripping Machine with 6 Servo Motors for 8,000 pcs/hour and Customizable Stripping Length
Technical Specifications
Download Technical Specifications Sheet
  • Full servo drive with 6 Yancon servo motors (Mitsubishi optional), matched with HIWIN guides, TBI screws, Airtac cylinders and Fengcheng molds for high precision and stable operation
  • Wide applicable wire range: 15AWG-32AWG, cutting length 40-1000mm, adjustable front/rear stripping length, customizable parameters beyond standard range
  • Flexible crimp pressure: standard 2T, optional 3T/4T to accommodate various terminal types
  • Dual production modes: 5-wire (5,000 pcs/hour) and 8-wire (8,000 pcs/hour) for enhanced production efficiency
  • Intelligent We-con touch screen & PLC control with parameter memory function, easy operation for new operators
  • All-in-one cutting, stripping and crimping functionality saves labor, reduces factory space requirements, and minimizes defective rates

Exhibition & Quality Assurance
Junsheng equipment exhibition and trade show display
Junsheng product packaging and shipping process
Junsheng quality certification and standards
