Touch Screen Automatic Soldering Machine Wire Terminal Crimping Machine

1
MOQ
5750
Price
Touch Screen Automatic Soldering Machine Wire Terminal Crimping Machine
Features Gallery Product Description Chat Now
Features
Specifications
Front Stripping Length: 1-10mm
Rear Stripping Length: 1-10mm
Wire Range: 18AWG-32AWG (8-wire);14AWG-32AWG (5-wire)
Front Twisting Length: 3-10mm
Rear Twisting Length: 3-10mm
Production Capacity: 8,000 Pcs/hour (8-wire);5,000 Pcs/hour (5-wire)
Cutting Length: 20-1000mm
Front Tinning Length: 1-10mm
Rear Tinning Length: 1-10mm
Servo Motors: 6 Sets
Display Screen: High-definition Screen
Cylinders Brand: Airtac (Taiwan)
Linear Guides Brand: HIWIN (Taiwan)
Ball Screws Brand: TBI Motion (Taiwan)
Screen Brand: We-con
Highlight:

Touch Screen Automatic Soldering Machine

,

Touch Screen Wire Crimping Machine

,

Automatic Soldering Machine Wire Crimping Machine
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-02DS
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description

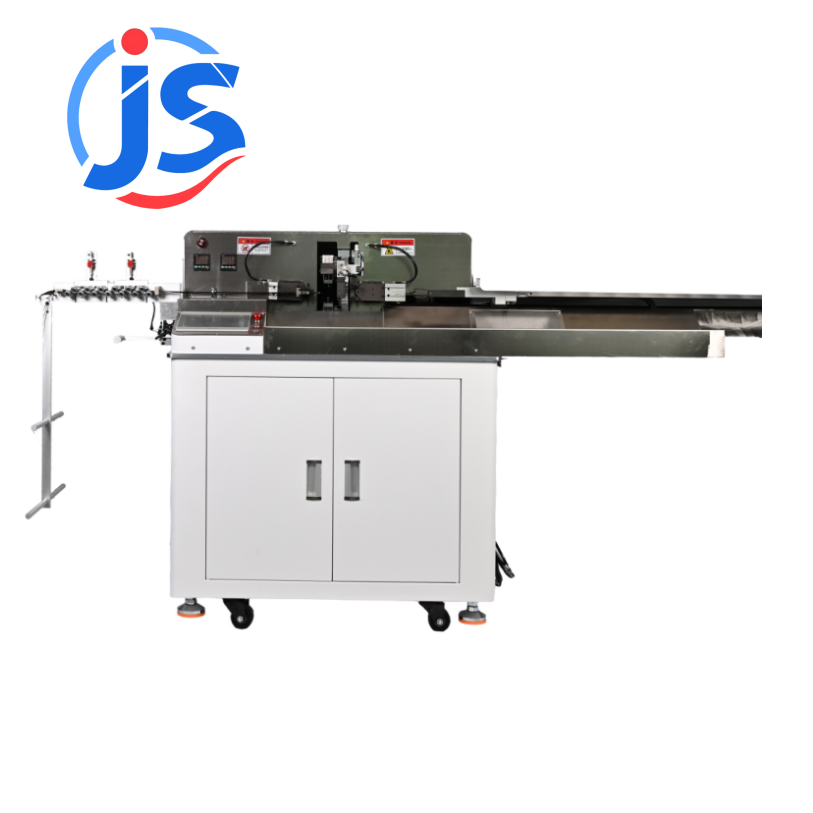

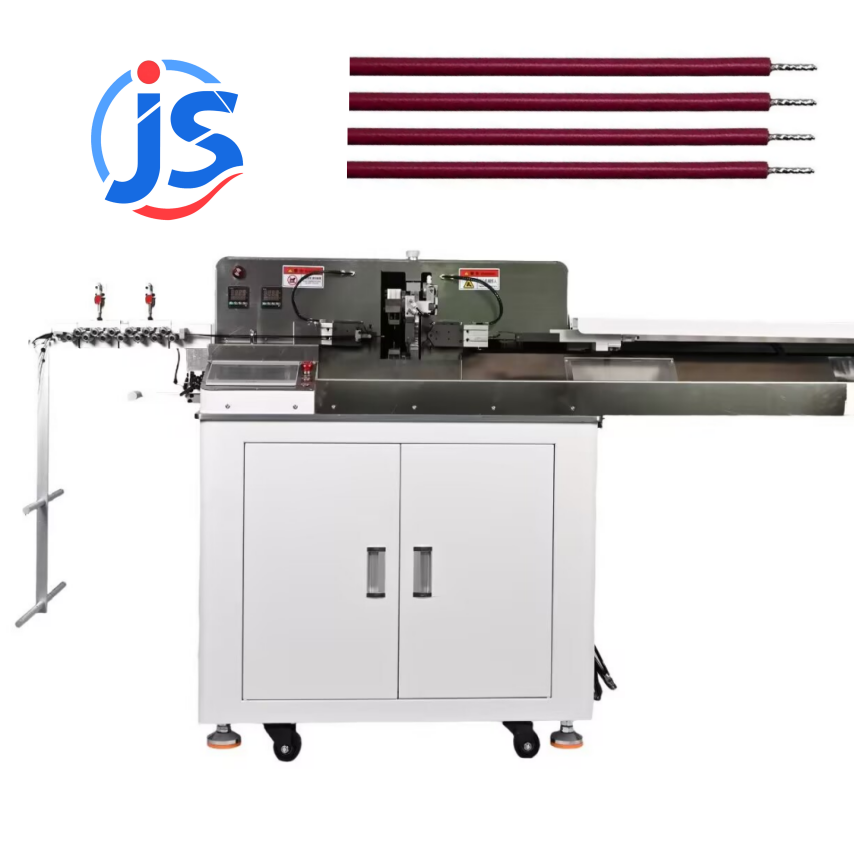

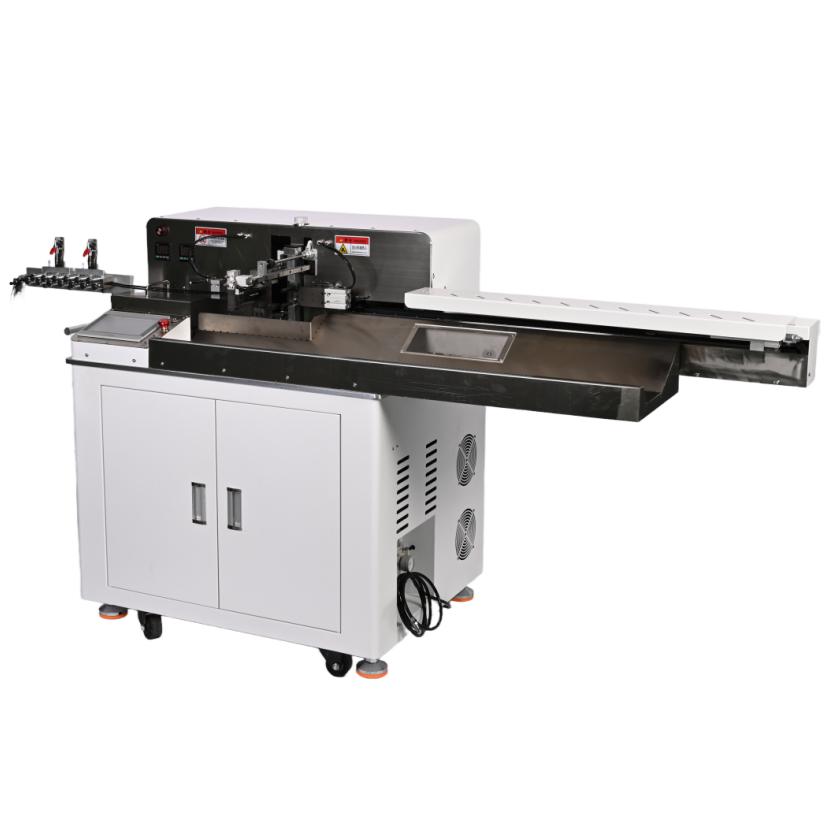

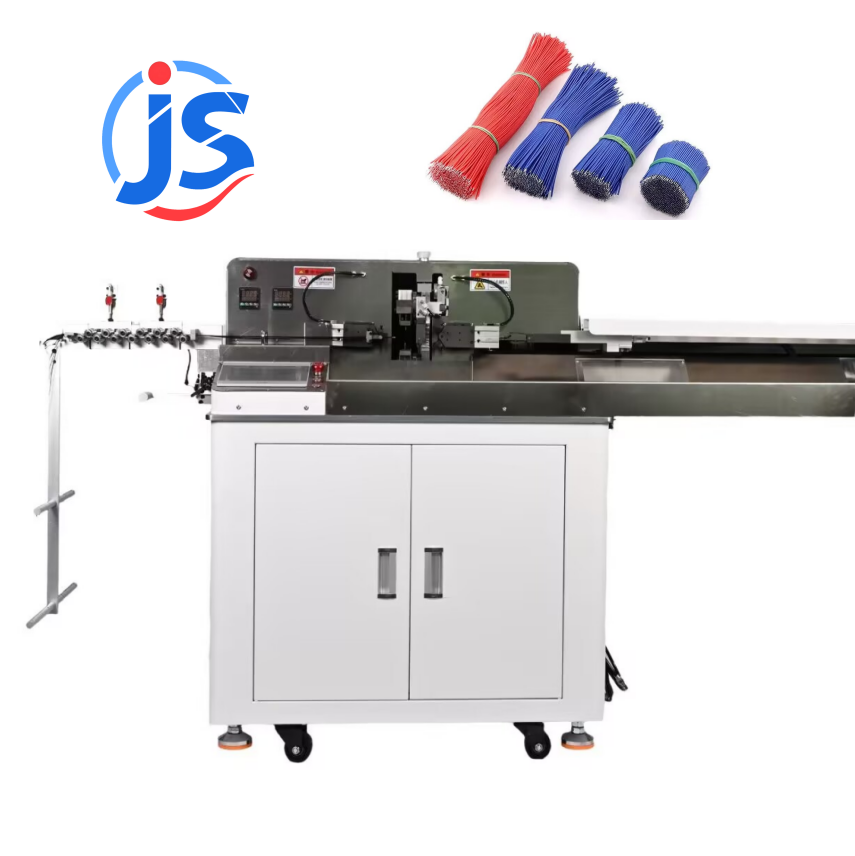

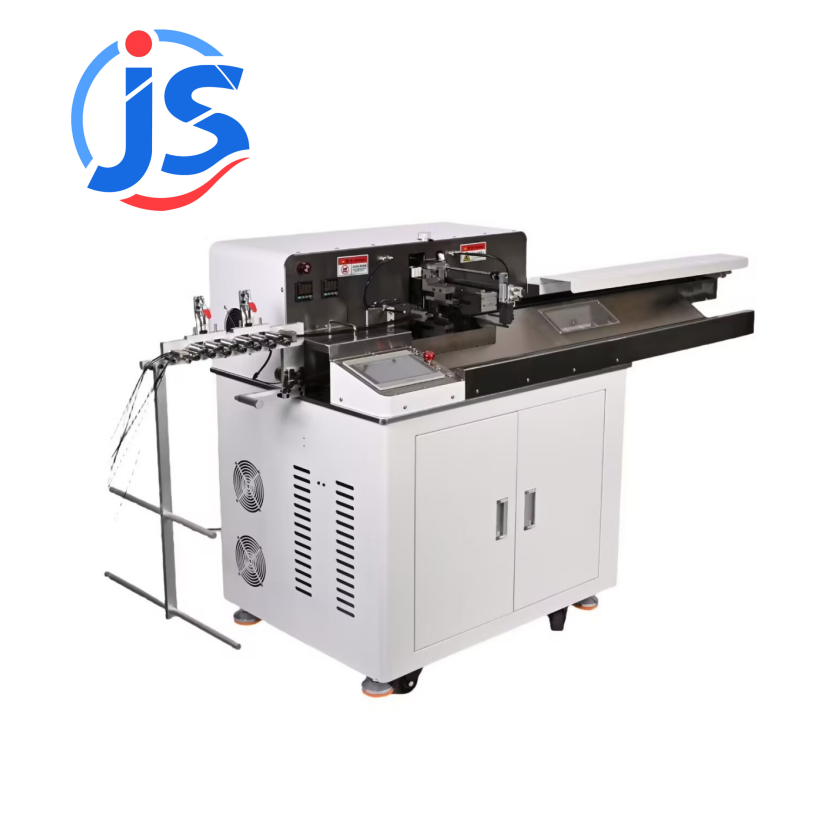

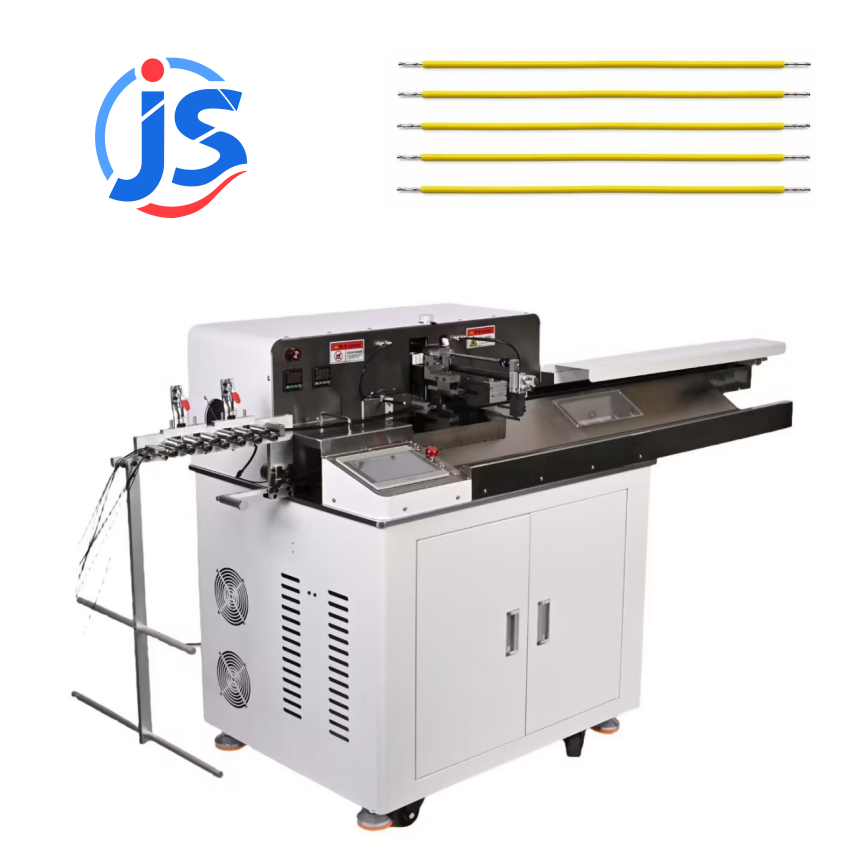

HR-02DS Fully Automatic Wire Harness Cutting Ring Terminal Crimping Machine
Technical Specifications
Download Technical Specifications (XLSX)
  • Dual Wire Processing Modes & Wide Wire Compatibility: Supports two working specifications: 5-wire simultaneous processing for 14AWG-32AWG cables and 8-wire processing for 18AWG-32AWG cables, covering most common thin electronic wire sizes to meet diversified wiring production demands.
  • Adjustable Multi-Size Processing Parameters: Fully customizable processing dimensions: cutting length adjustable from 20mm to 1000mm, front & rear stripping length 1-10mm, twisting length 3-10mm, and tinning length 1-10mm. Adapts to different terminal assembly and soldering requirements flexibly.
  • High Efficient Production Capacity: Stable high hourly output: around 5,000 pieces per hour for 5-wire processing and up to 8,000 pieces per hour for 8-wire processing, greatly boosting workshop production efficiency and shortening order delivery cycles.
