Servo Drive Automatic Soldering Machine High Capacity Wire Harness Crimping Machine

1
MOQ
5900
Price
Servo Drive Automatic Soldering Machine High Capacity Wire Harness Crimping Machine
Features Gallery Product Description Chat Now
Features
Specifications
Cutting Length: 20-1000mm (Customizable Beyond Range)
Tinning Length: 1-10mm (Customizable Beyond Range)
Ball Screws Brand: TBI Motion (Taiwan)
Cylinders Brand: Airtac (Taiwan)
Twisting Length: 3-10mm (Customizable Beyond Range)
Display Screen: High-definition Screen, Brand: We-con
Production Capacity: 18AWG-32AWG, 8-wire: Approx. 8,000 Pcs/hour; 14AWG-32AWG, 5-wire: Approx. 5,000 Pcs/hour
Linear Guides: HIWIN (Taiwan)
Motors & Drives: 6 Sets Of Servo Motors & Drives
Stripping Length: 1-10mm (Customizable Beyond Range)
Wire Range: 18AWG-32AWG (8-wire); 14AWG-32AWG (5-wire)
Dual Wire Modes: 5-wire & 8-wire Processing
Adjustable Parameters: Cutting, Stripping, Twisting, Tinning Lengths Customizable
Hourly Output: 5,000 Pcs/hour (5-wire); 8,000 Pcs/hour (8-wire)
Wire Compatibility: 14AWG-32AWG (5-wire); 18AWG-32AWG (8-wire)
Highlight:

Servo Drive Automatic Soldering Machine

,

Automatic Soldering Machine High Capacity

,

High Capacity Wire Harness Crimping Machine
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-02DS
Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description

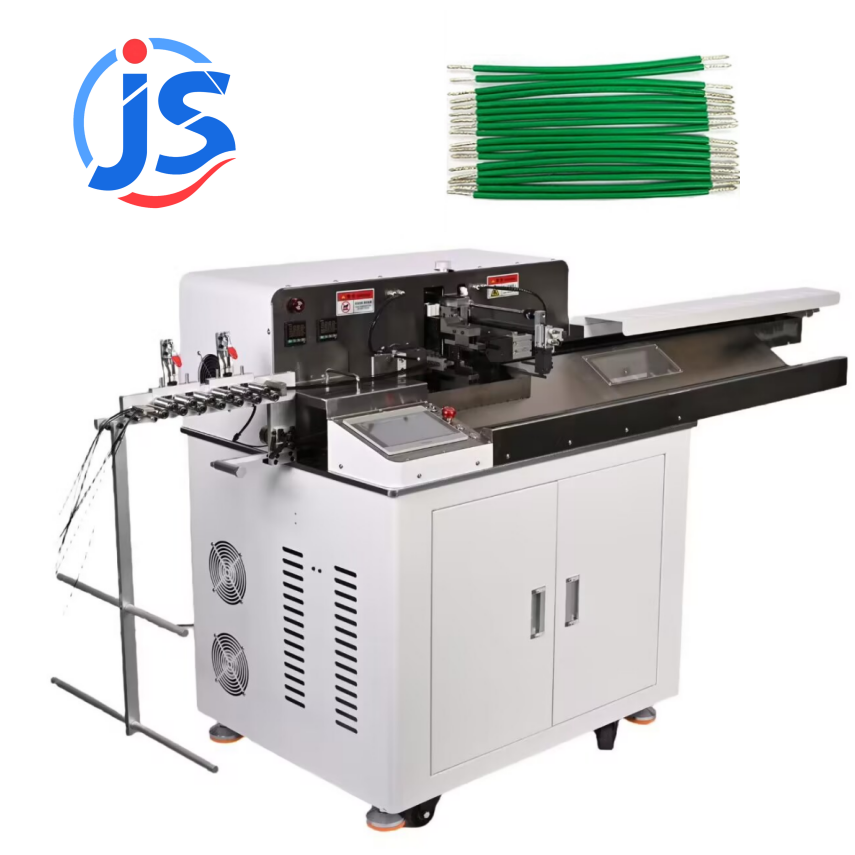

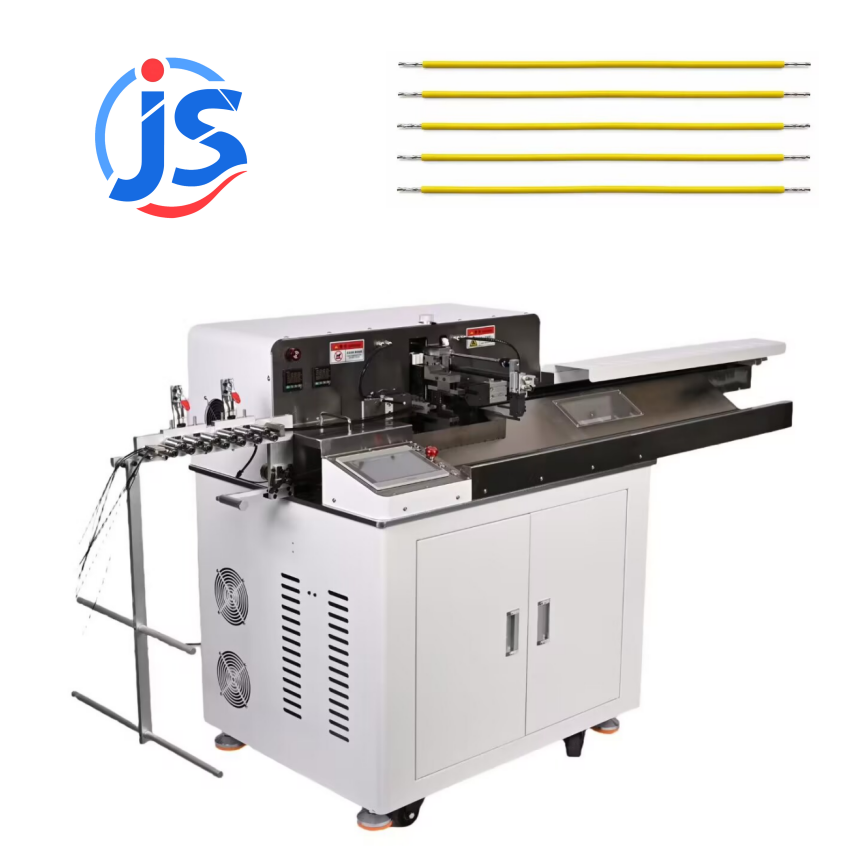

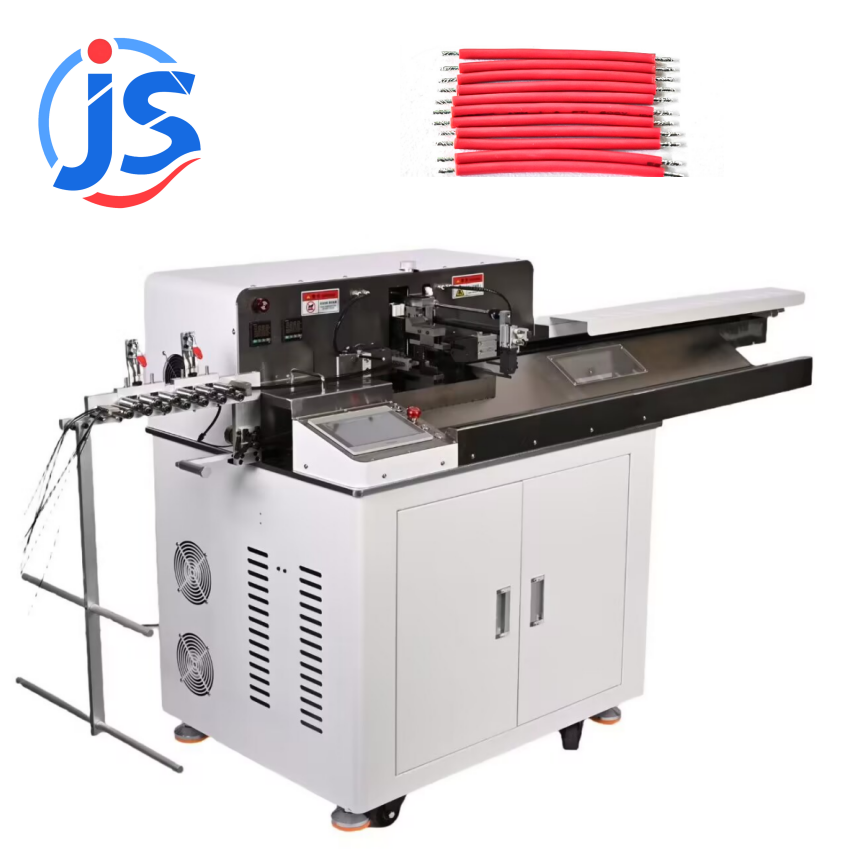

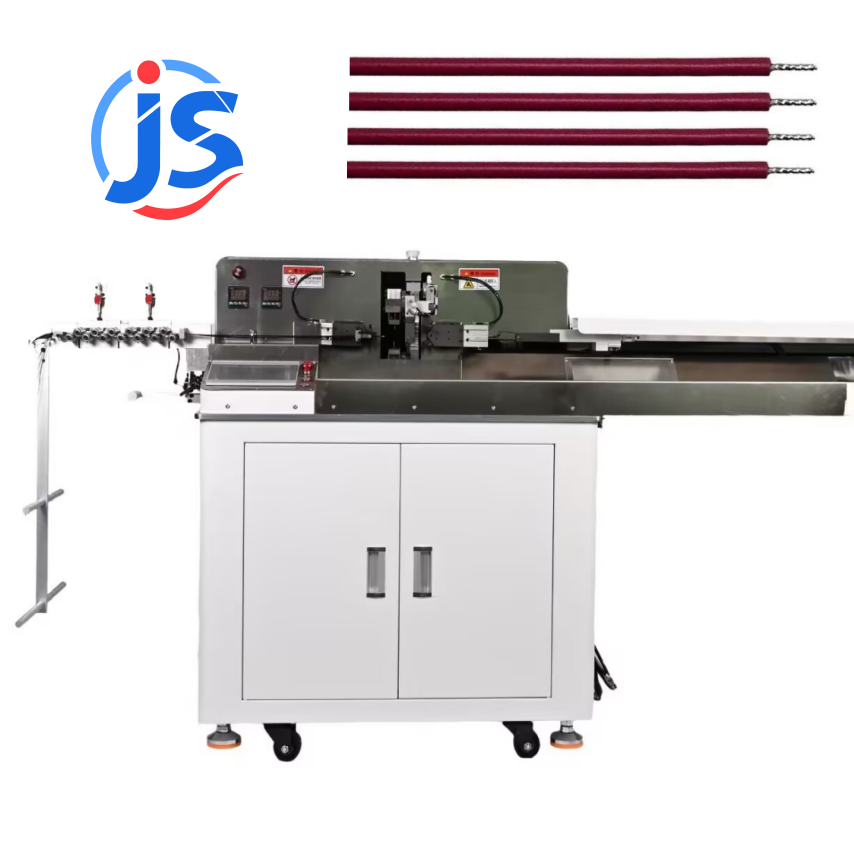

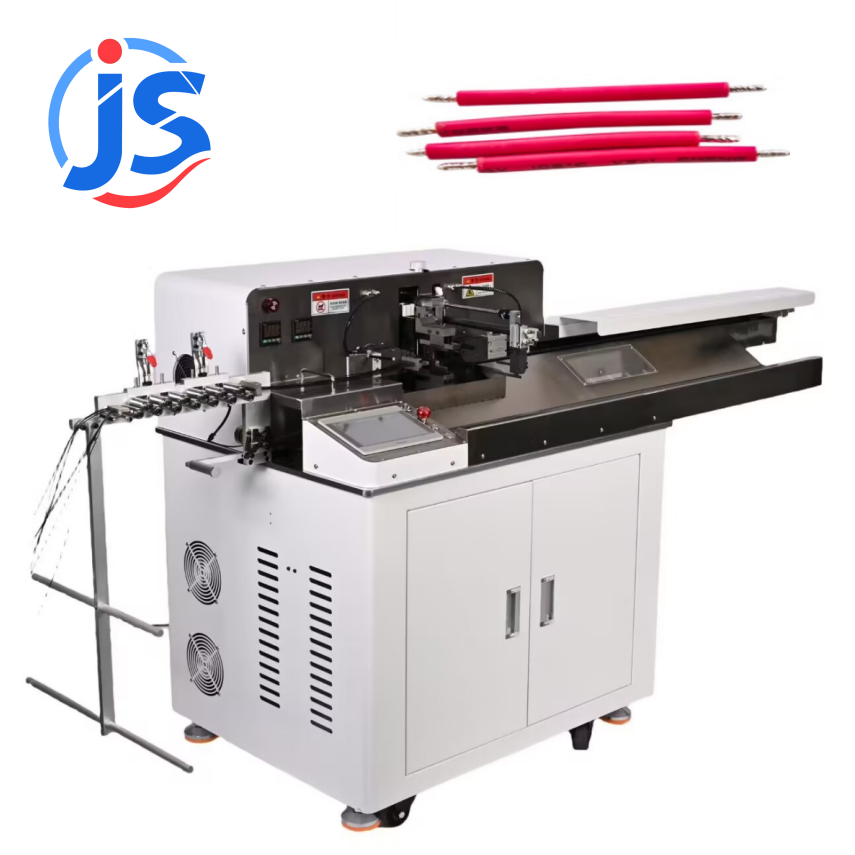

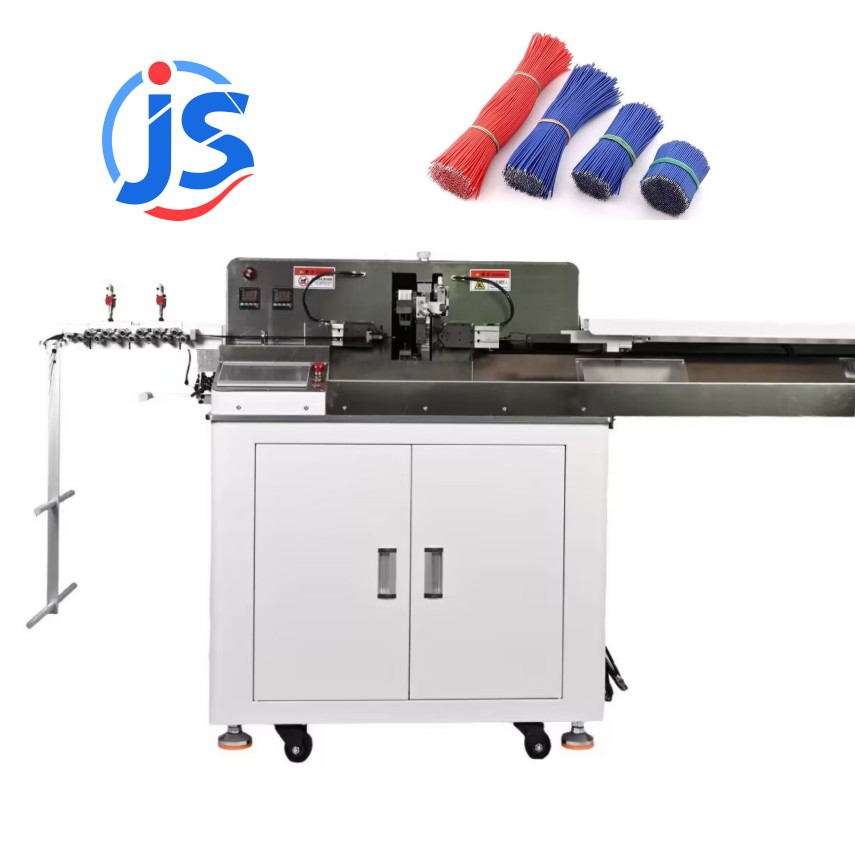

HR-02DS Fully Automatic Wire Harness Cutting Ring Terminal Crimping Machine
Download Product Specifications (XLSX)
Key Features
  • Dual Wire Processing Modes & Wide Wire Compatibility: Supports two working specifications: 5-wire simultaneous processing for 14AWG-32AWG cables and 8-wire processing for 18AWG-32AWG cables, covering most common thin electronic wire sizes to meet diversified wiring production demands.
  • Adjustable Multi-Size Processing Parameters: Fully customizable processing dimensions: cutting length adjustable from 20mm to 1000mm, front & rear stripping length 1-10mm, twisting length 3-10mm, and tinning length 1-10mm. Adapts to different terminal assembly and soldering requirements flexibly.
  • High Efficient Production Capacity: Stable high hourly output: around 5,000 pieces per hour for 5-wire processing and up to 8,000 pieces per hour for 8-wire processing, greatly boosting workshop production efficiency and shortening order delivery cycles.
Exhibition
Junsheng equipment exhibition and trade show display
Package & Shipping
Junsheng product packaging and shipping process
Junsheng product certification
