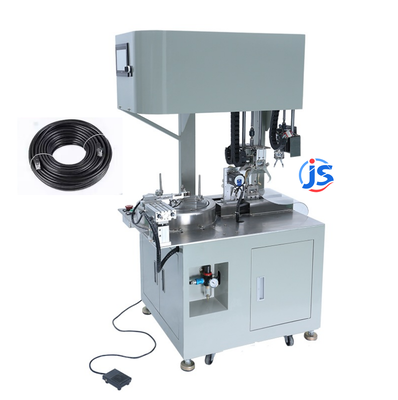

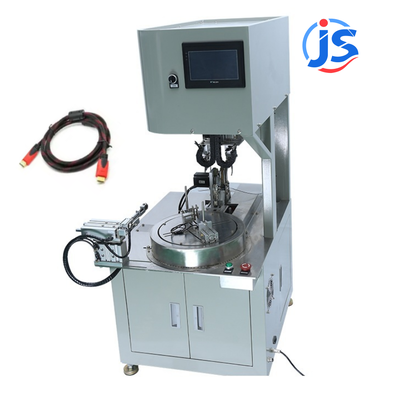

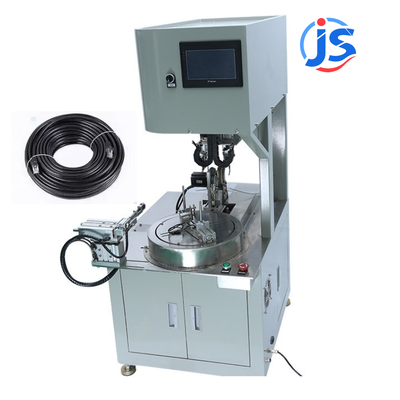

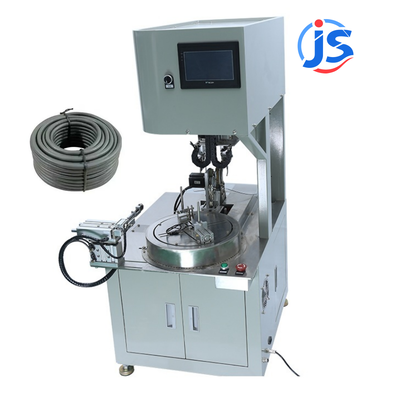

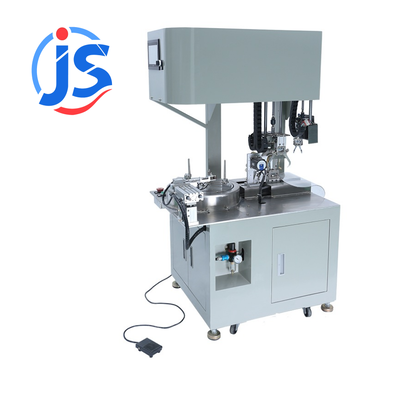

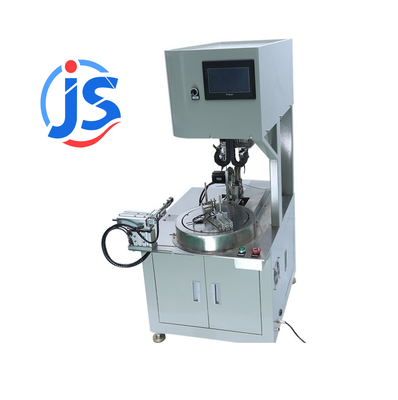

Automatic Cable Taping Machine with Figure-8 Winding and Single Taping, PLC Control Wire Harness Taping Machine

1
MOQ
3500
Price
Automatic Cable Taping Machine with Figure-8 Winding and Single Taping, PLC Control Wire Harness Taping Machine
Features Gallery Product Description Chat Now
Features
Specifications
Numbers Of Coil: Adjustable
Diameter Of Coil: ≤50mm
Spacing Of Winding: 80-180mm
Capacity: 1800pcs/h
Wire Length: Depends On Cable Type And OD
Applicable Wire Diameter: ≤10mm
Pressure Of Air Source: 0.4-0.5Mpa
Tie Type: Environmental Plastic Iron Wire
Weight Limit: ≤3KG
Speed: 2100pcs/hour
Control System: PLC And Man-machine Interface
Cruise Mode: Available
Fault Alarm: Yes
Operation System Language: English
Workbench Design: Sitting Convenience
Coil Diameter: ≤50mm
Air Pressure: 0.4-0.5Mpa
Wire Diameter: ≤10mm
Winding Spacing: 80-180mm
Coil Count: Adjustable
Operation Language: English
Highlight:

Automatic wire harness winding machine

,

Figure-8 winding and taping machine

,

Cable taping machine with single taping
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-40XL
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,T/T,D/P
Supply Ability: 200
Product Description
Product Overview

This advanced automation machine handles a wide range of wire types, from USB cables to power cables, making it an ideal solution for manufacturers with diverse wire requirements.

Download Technical Specifications (HR-40XL.xls)
  • High-speed operation reaching 2,100 pieces per hour — 5 to 6 times faster than manual winding
  • Compact design with minimal space requirements
  • Ergonomic workbench designed for seated operation, reducing employee fatigue
  • Programmable controller (PLC) with a user-friendly interface
  • Cruise mode operation — no need for continuous switch pressing
  • Easy adjustment with an automatic fault point alarm system
Manufacturing Facility
Automatic wire winding machine in operation on the production floor
Automatic wire winding machine in operation
Close-up view of the wire winding and taping mechanism
Close-up of the wire winding mechanism
Cable figure-8 winding and single taping machine in the manufacturing facility
Shipping & Packaging
Machine prepared and packaged for shipping
Packed wire winding machine ready for transport
Shipping preparation of the cable winding and taping machine
Customer Applications
Customer using the automatic wire winding machine in production
Customer using the automatic wire winding machine
Product Certification
Junsheng product certification and quality standards documentation
Junsheng product certification and quality standards
