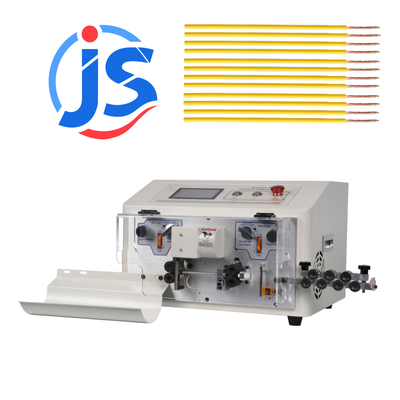

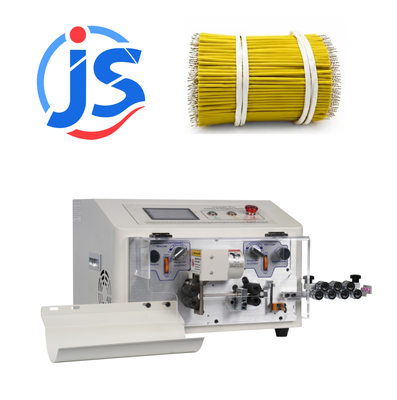

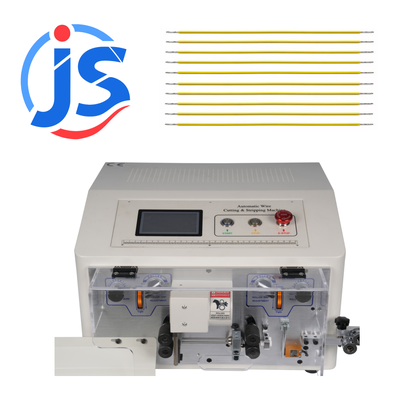

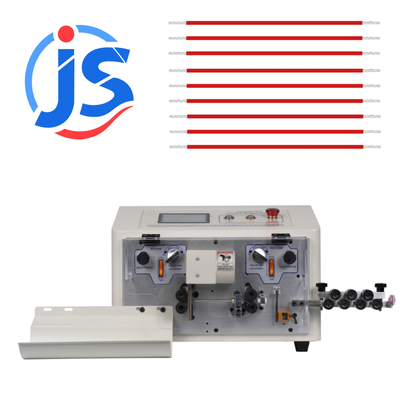

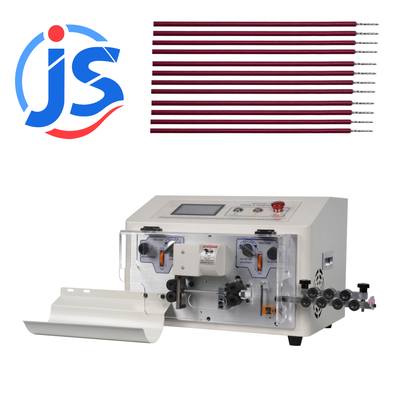

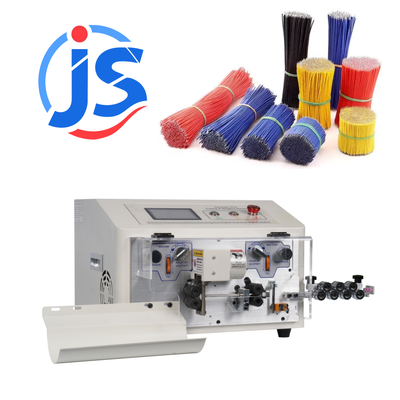

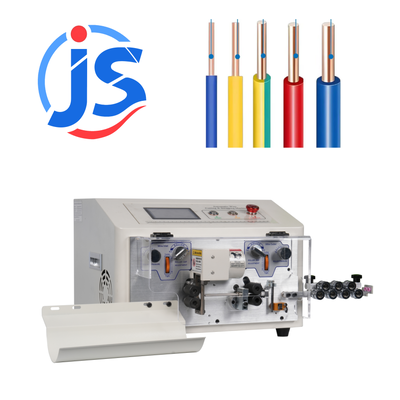

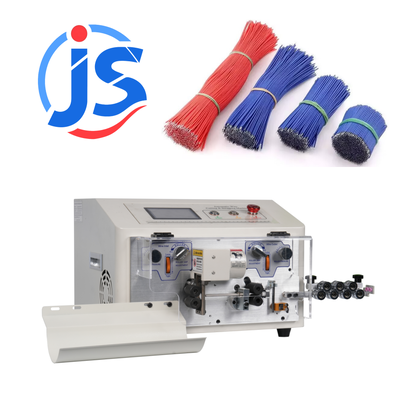

Automatic Cable Stripping Machine with 5000-10000 Pieces per Hour, 4.3 Inch Touch Screen, and Hard Tungsten Steel Blade

1
MOQ
850
Price
Automatic Cable Stripping Machine with 5000-10000 Pieces per Hour, 4.3 Inch Touch Screen, and Hard Tungsten Steel Blade
Features Gallery Product Description Chat Now
Features
Specifications
Display: 4.3 Inch Touch Screen
Power: 300W
Production Rate: 5000-10000 Pieces Per Hour
Machine Size: L460*W470*H330MM
Cutting Length: 1-9900mm
Blade Material: Hard Tungsten Steel
Processing Line Length: 1-9999mm
Front Strip Length: 1-30mm
Driving Mode: Four-wheel Drive
Length Accuracy: ± (0.002xL)mm
Intermediate Peeling Times: 16 Times
Rare Strip Length: 1-30mm
Wire Cross-sectional Area: Double Line 0.1-2.5mm²; Single Wire 0.1-4mm²
Capacity: 5000-10000PCS/H(L=100mm)
Voltage: 220V
Weight: 28KG
Back-end Peeling: 1-30mm
Drive Mode: Four-wheel Drive (silent Hybrid Stepper Motor, Advancing 0.1mm Per Step)
Highlight:

5000-10000 pieces per hour Automatic Cable Stripping Machine

,

4.3 inch touch screen Wire Harness Cutting Machine

,

Hard Tungsten Steel Blade Wire Processing Machine
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-SDB2S
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description
Clean Cut AVS Wire (Thin Wall) Wire Harness Cutting and Stripping Machine
The Clean Cut AVS Wire (thin wall) Wire Harness Cutting and Stripping Machine delivers precision processing for various wire types with high production capacity and advanced features.
Product Specifications
Download Complete Specifications (HR-SDB2S.xlsx)
  • 4.3-inch touchscreen display with Chinese/English language switching
  • Processing line length range: 1-9999mm
  • Front-end stripping: 1-30mm, Back-end stripping: 1-30mm
  • Processing wire cross-sectional area: Double line 0.1-2.5mm²; Single wire 0.1-4mm²
  • Length accuracy: ±(0.002xL) mm
  • Intermediate stripping times: 16 times
  • Machinable wire types: PVC, PTFE, braided, fiberglass wire, etc.
  • Production capacity: 5000-10000 pieces per hour
  • Drive mode: Four-wheel drive (silent hybrid stepper motor, advancing 0.1mm per step)
Exhibition & Trade Shows
Junsheng equipment exhibition display showcasing wire processing machines at international trade show
Our equipment showcased at international trade shows and exhibitions
Packaging & Shipping
Junsheng product packaging and secure shipping process for industrial equipment
Secure packaging and professional shipping process for global delivery
Quality Certification
Junsheng quality certification and compliance documentation for industrial standards
Our commitment to quality through recognized certifications and compliance
