Home /Products/Cable Stripping Machine/Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 5000-10000 Pieces per Hour

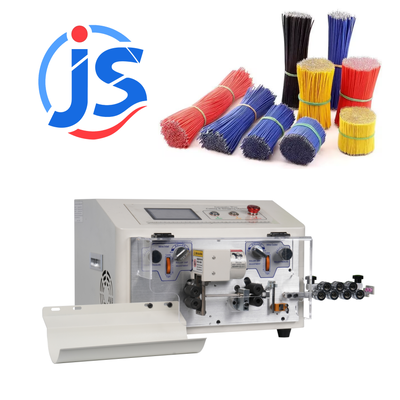

Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 5000-10000 Pieces per Hour

1
MOQ
850
Price
Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 5000-10000 Pieces per Hour
Features Gallery Product Description Chat Now
Features
Specifications
Display: 4.3 Inch Touch Screen
Power: 300W
Production Rate: 5000-10000 Pieces Per Hour
Front Strip Length: 1-30mm
Driving Mode: Four-wheel Drive
Length Accuracy: ± (0.002xL)mm
Intermediate Peeling Times: 16 Times
Rare Strip Length: 1-30mm
Applicator: PVC,PTFE,Braided,Fiberglass Wire
Wire Cross-sectional Area: Double Line 0.1-2.5mm²; Single Wire 0.1-4mm²
Cutting Length: 1-9900mm
Blade Material: Hard Tungsten Steel
Processing Line Length: 1-9999mm
Machine Size: L460*W470*H330MM
Capacity: 5000-10000PCS/H(L=100mm)
Voltage: 220V
Weight: 28KG
Back-end Peeling: 1-30mm
Drive Mode: Four-wheel Drive (silent Hybrid Stepper Motor, Advancing 0.1mm Per Step)
Machinable Wire Types: PVC, PTFE, Braided, Fiberglass Wire
Highlight:

5000-10000 pieces per hour Automatic Cable Stripping Machine

,

4.3 inch touch screen Wire Harness Cutting Machine

,

Hard Tungsten Steel Blade Wire Stripping Machine
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-SDB2S
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description
Clean Cut AVS Wire (Thin Wall) Wire Harness Cutting and Stripping Machine
Product Overview

The Clean Cut AVS Wire (thin wall) Wire Harness Cutting and Stripping Machine delivers precision processing for various wire types with high production efficiency and advanced features.

Technical Specifications
Display 4.3-inch touchscreen with Chinese/English language switching
Processing Length 1-9999mm range
Stripping Capability Front-end: 1-30mm, Back-end: 1-30mm
Wire Cross-Section Double line: 0.1-2.5mm²; Single wire: 0.1-4mm²
Length Accuracy ±(0.002xL) mm
Intermediate Stripping 16 times
Production Capacity 5000-10000 pieces per hour
Drive System Four-wheel drive with silent hybrid stepper motor (0.1mm per step)
  • Machinable wire types: PVC, PTFE, braided, fiberglass wire, and more
  • Advanced four-wheel drive system for precise control
  • High-capacity production with exceptional accuracy
Download Detailed Specifications (Excel)
Industry Presence
Junsheng wire processing machines displayed at international trade shows and exhibitions
Our equipment showcased at international trade shows and exhibitions
Packaging & Shipping
Secure packaging and professional shipping process for Junsheng industrial equipment
Secure packaging and professional shipping for global delivery
Quality Assurance
Junsheng quality certification and compliance documentation meeting industrial standards
Our commitment to quality through recognized certifications and compliance
Tag:

Automatic Wire Stripping Machine

Wire Stripper Machine

Cable Stripper Machine
