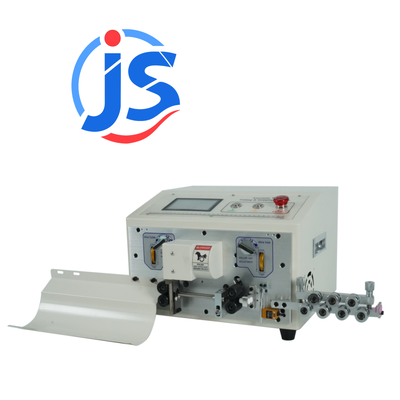

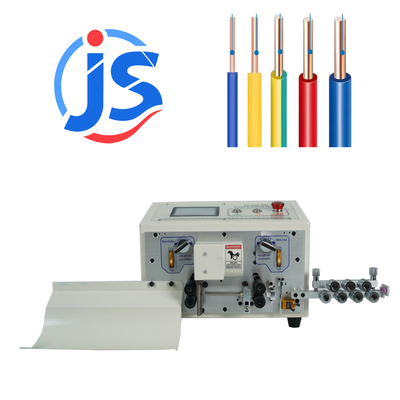

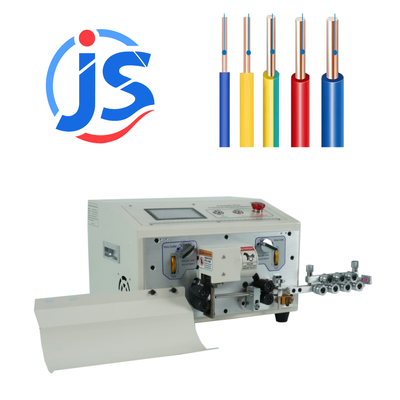

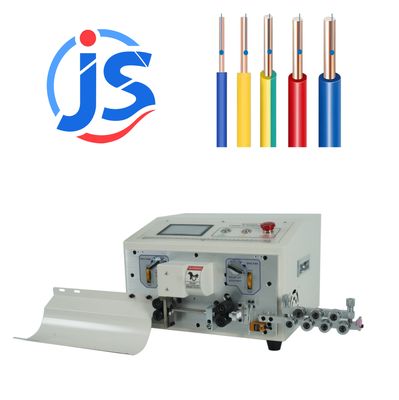

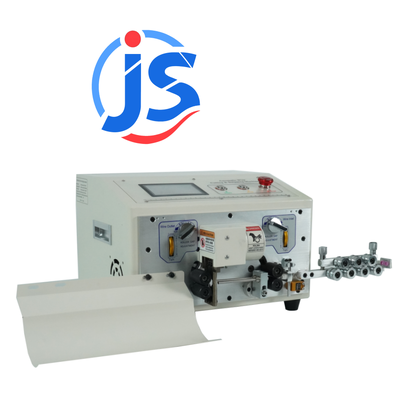

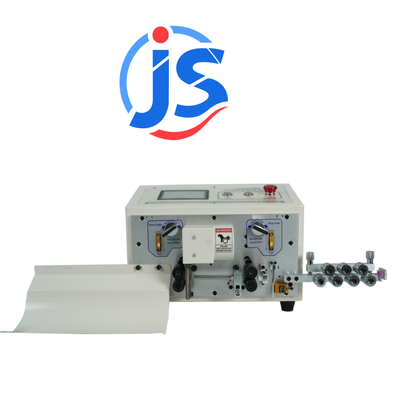

High Speed 5000-10000PCS/H FLRY Wire Cutting and Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade

1
MOQ
650
Price
High Speed 5000-10000PCS/H FLRY Wire Cutting and Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
Features Gallery Product Description Chat Now
Features
Specifications
Capacity: 5000-10000PCS/H(L=100mm)
Applicator: PVC,PTFE,Braided,Fiberglass Wire
Length Accuracy: ± (0.002xL)mm
Cutting Length: 1-9900mm
Display: 4.3 Inch Touch Screen
Front Strip Length: 1-30mm
Power: 300W
Rare Strip Length: 1-15mm
Machine Size: L460*W470*H330MM
Voltage: 220V
Intermediate Peeling Times: 16 Times
Blade Material: Hard Tungsten Steel
Driving Mode: Four-wheel Drive
Weight: 28KG
Processing Line Length: 1-9999mm
Wire Cross-sectional Area: Double Line 0.1-2.5mm²; Single Wire 0.1-4mm²
Maximum Catheter Diameter: 6mm
Production Rate: 5000-10000 Pieces Per Hour
Drive Step: 0.1mm Per Step
Back-end Peeling: 1-15mm
Highlight:

5000-10000PCS/H Automatic Cable Stripping Machine

,

4.3 inch touch screen Wire Cutting and Stripping Machine

,

Hard Tungsten Steel Blade FLRY Wire Stripper
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-SDBS
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description
Fast Stripping Speed FLRY Wire (Thin Wall) Cable Cutting and Stripping Machine
Product Overview

High-performance wire cable cutting and stripping machine specifically designed for FLRY thin wall wires, offering exceptional speed and precision for industrial manufacturing applications.

Technical Specifications
Download Full Specifications (Excel)
  • 4.3-inch touchscreen display with Chinese/English language switching
  • Processing length range: 1-9999mm
  • Front-end peeling: 1-30mm | Back-end peeling: 1-15mm
  • Wire cross-sectional area: Double line 0.1-2.5mm² | Single wire 0.1-4mm²
  • Length accuracy: ±(0.002×L) mm
  • Intermediate peeling capacity: 16 times
  • Maximum catheter inner diameter: 6mm
  • Compatible wire types: PVC, PTFE, braided, fiberglass wire, and more
  • Production rate: 5,000-10,000 pieces per hour
  • Drive system: Four-wheel drive with silent hybrid stepper motor (0.1mm per step advancement)
Exhibition & Trade Shows
Junsheng equipment exhibition and trade show display showcasing wire processing machinery
Our machinery displayed at international trade shows and exhibitions
Packaging & Shipping
Junsheng product packaging and shipping process for industrial equipment
Secure packaging and professional shipping process for global delivery
Quality Certification
Junsheng quality certification and compliance documentation for manufacturing standards
Industry-recognized quality certifications and compliance documentation
