Home /Products/Cable Taping Machine/Continuous Cable Taping Machine Figure 8 Wire Winding Machine

Continuous Cable Taping Machine Figure 8 Wire Winding Machine

1
MOQ
1050
Price
Continuous Cable Taping Machine Figure 8 Wire Winding Machine
Features Gallery Product Description Chat Now
Features
Specifications
Tying Speed: 0.6 Time/s
Weight: 50KG
Tying OD: 40-80mm
Winding Speed: 1-10 Circles/s
8 Type Length: 220-300mm
Size: 40*34*55cm
Winding OD: 50-200mm
Motor Type: Stepper Motor
Control System: PLC Touch Screen
Cutting Method: Automatic Cutting
Twisting Method: Automatic Twisting
Turns Setting: Adjustable
Speed Adjustment: Adjustable
Cable Compatibility: AC/DC/USB/HDMI
Operation Language: English
Highlight:

Continuous Cable Taping Machine

,

Figure 8 Cable Taping Machine

,

Figure 8 Wire Winding Machine
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-4080S
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description

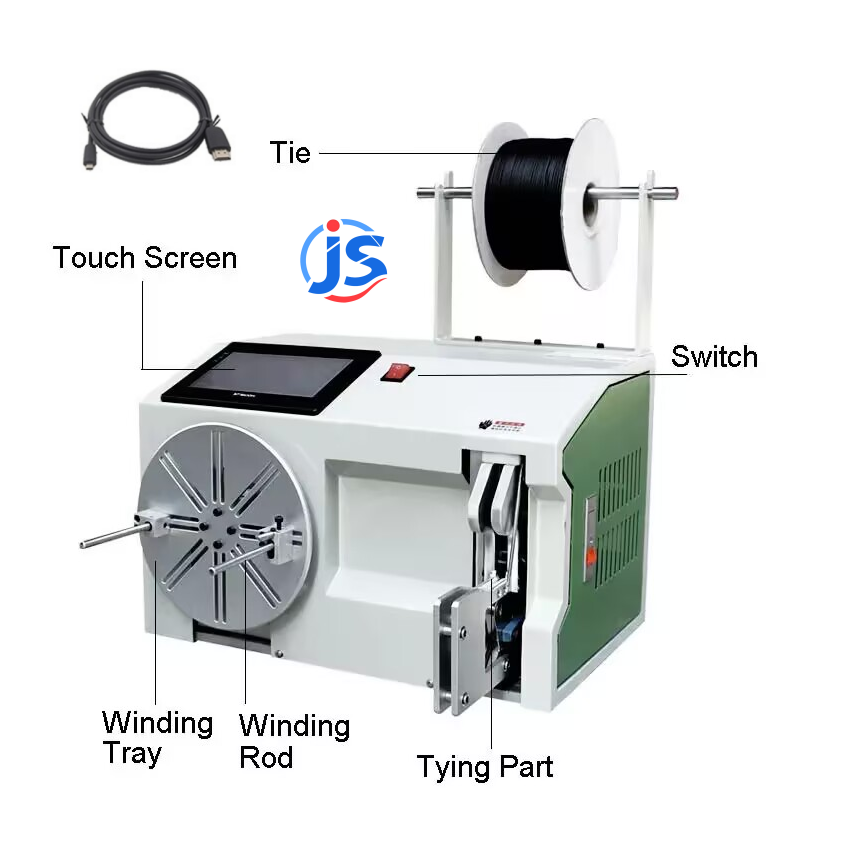

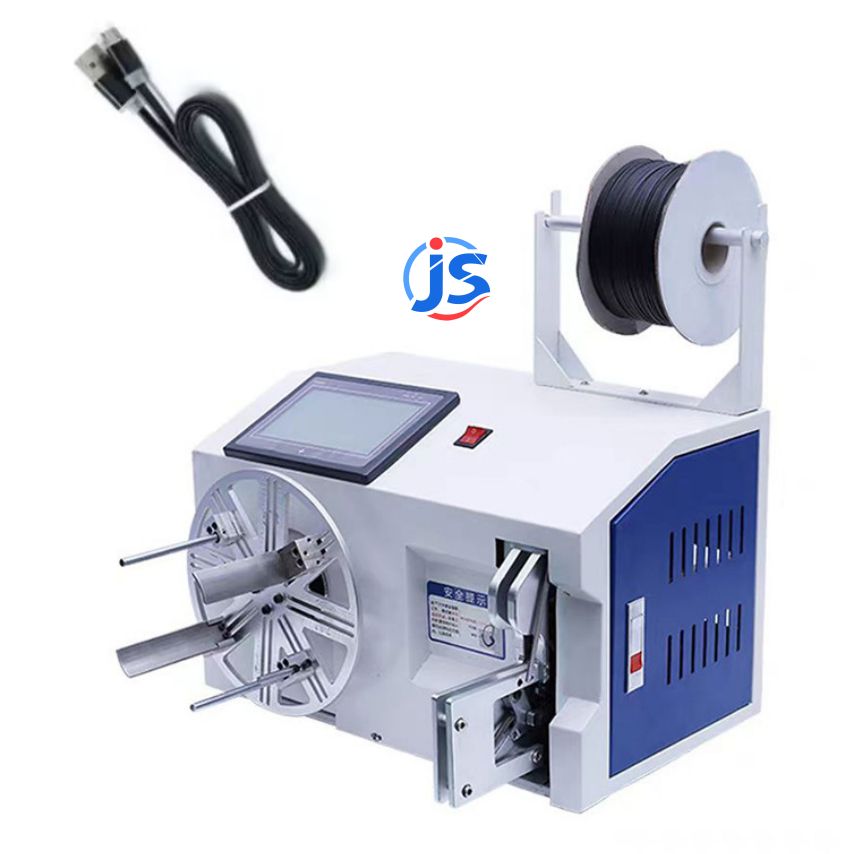

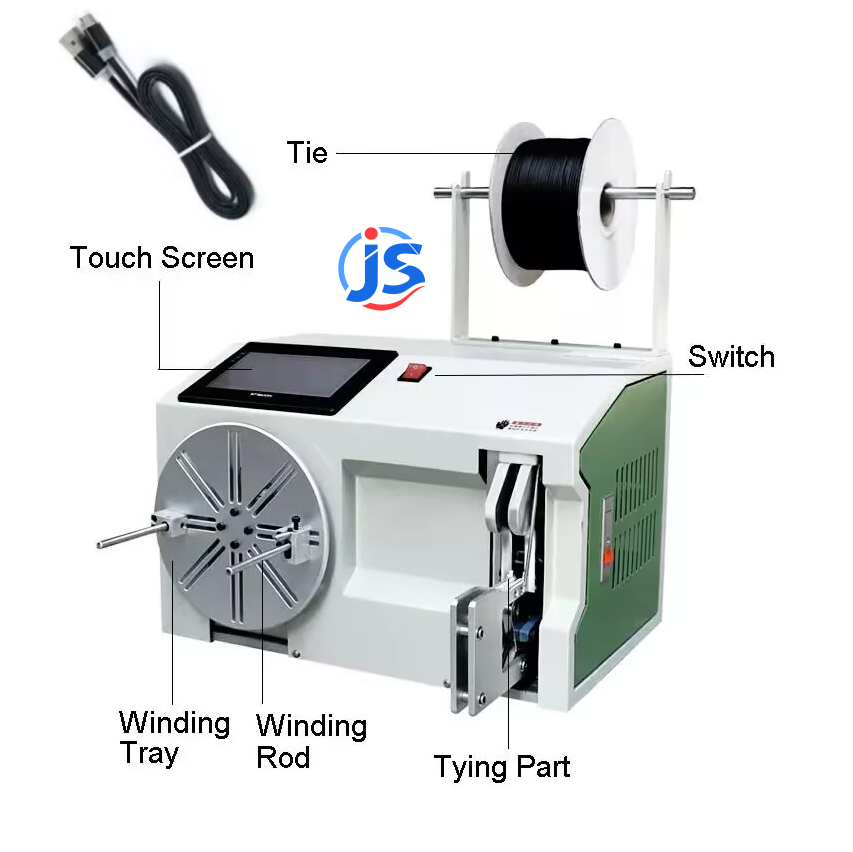

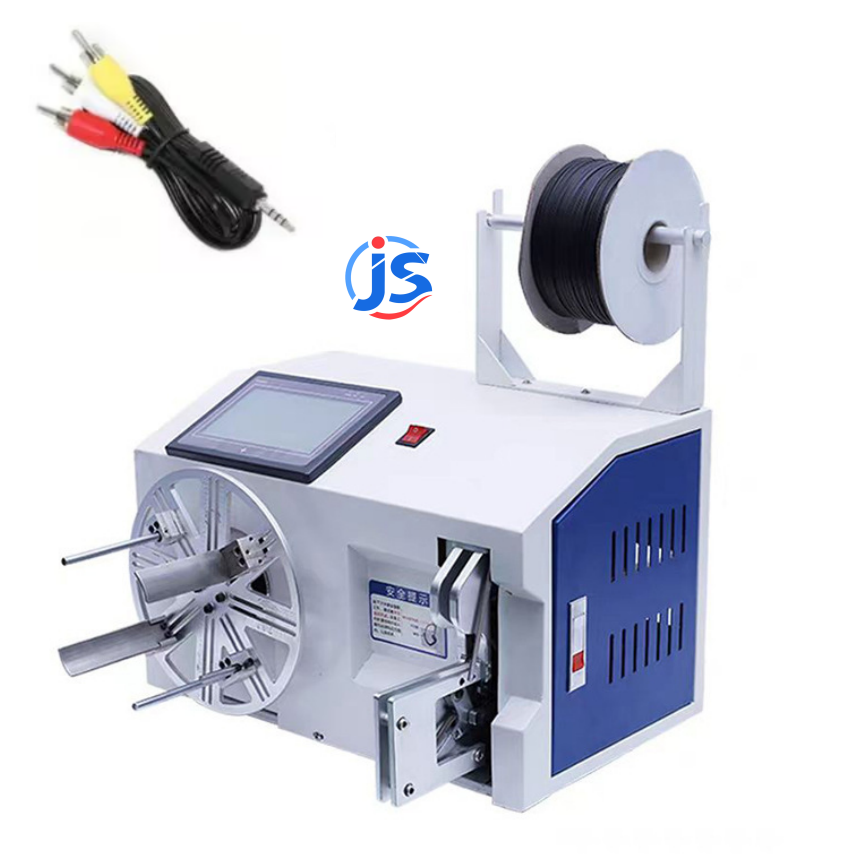

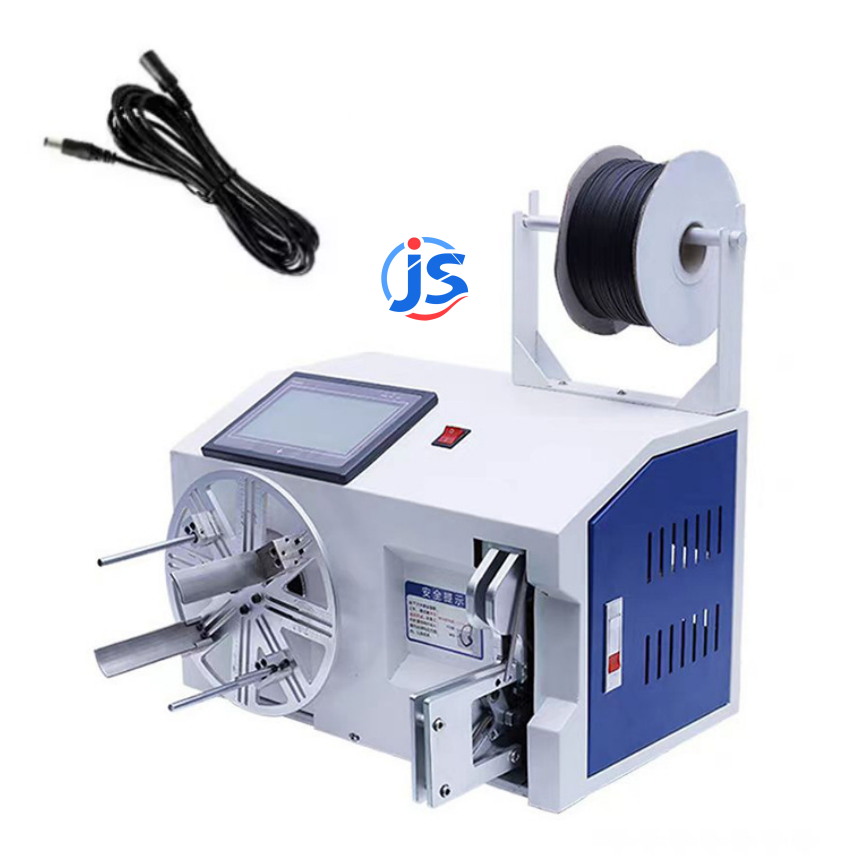

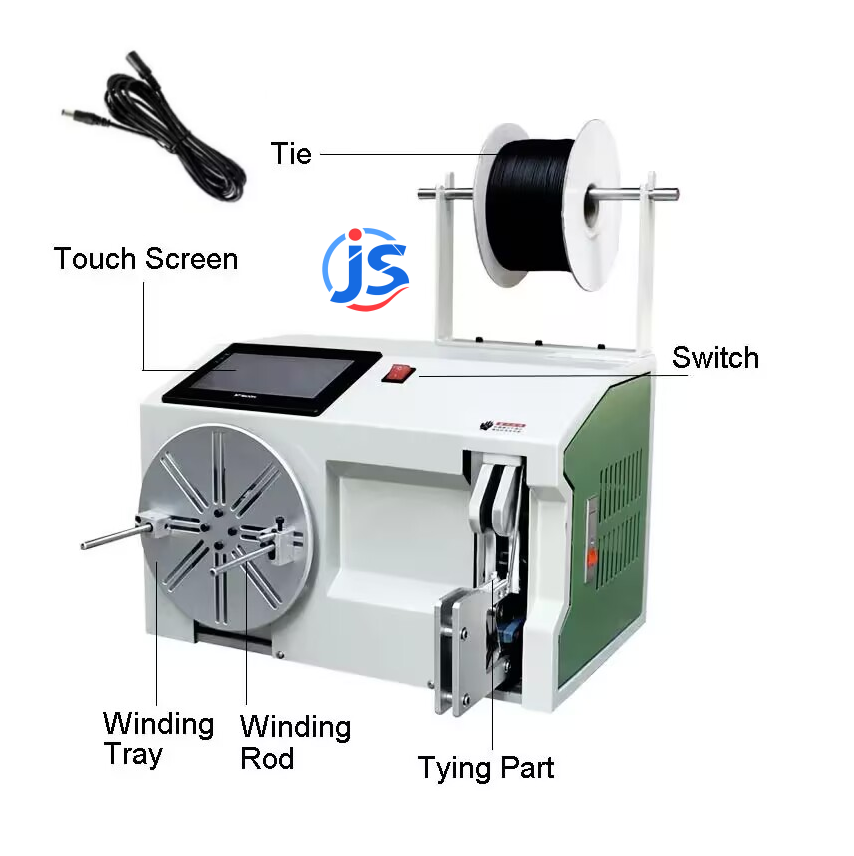

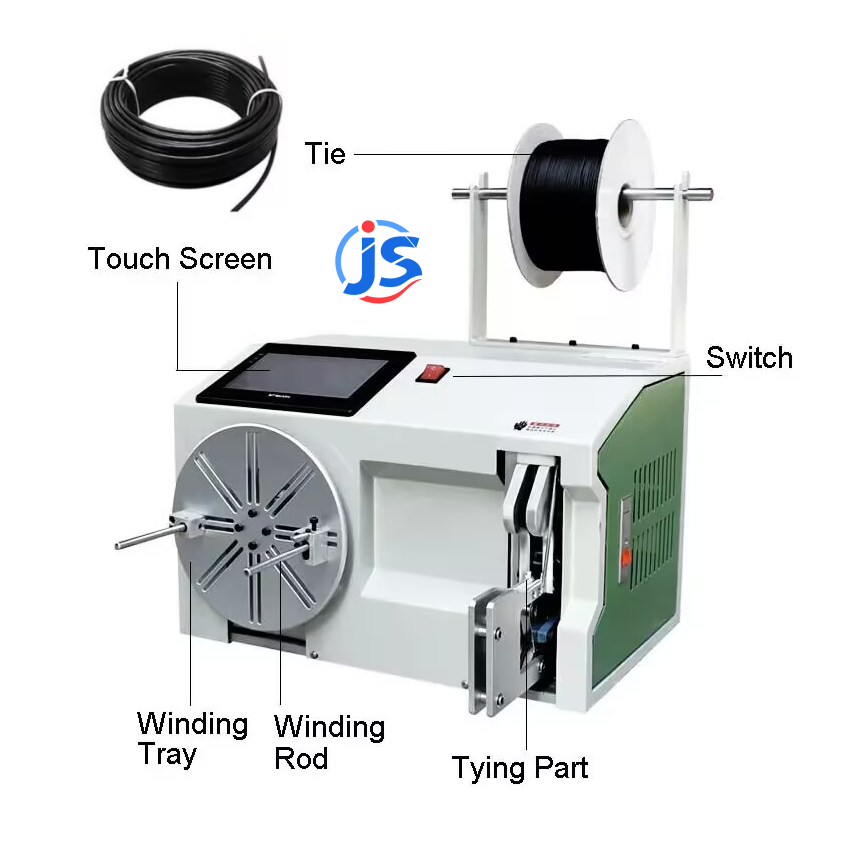

Continuous Wire Figure-8 Winding and Single Taping Machine with 40-80mm Tying OD, 1-10 circles/s Winding Speed, and 220-300mm 8-Type Winding Length
Product Specifications
  • Equipped with winding motor (stepper motor) with bundling outer diameter range: 40mm-80mm
  • PLC computer program touch screen control for ribbon length, automatic cutting and twisting
  • Adjustable number of turns and winding speed
  • Winding outer diameter range: 50-200mm
  • 8-type winding length: 220-300mm
  • Bundling speed: 0.6 times/second
  • Winding speed: 1-10 turns/second
Applications

This device is suitable for AC power cables, DC power cables, USB data cables, video cables, HDMI cables, and other rubber cores. Also used in industries such as hangers and bathroom hoses.

Download Technical Specifications (HR-4080S.xls)

Frequently Asked Questions
Is Shenzhen Junsheng Automation Equipment Co.,Ltd a factory or trade company?
We are manufacturer of different kinds of wire processing automatic equipment, and enjoy a great reputation in domestic and oversea market.
Is ODM service available in Shenzhen Junsheng Automation Equipment Co.,Ltd?
Yes, of course, we have 11 technical staff with rich experience in this field, just tell us what you need.
What kind of after sell service you can supply?
One year warranty and lifetime maintenance service. Normally, our machines are seldom with quality problems, but if you have some problems after use for long time, first send us pictures and videos, we have professional after sell service staff to give you solutions.
Your product is good in our market, can we be your agent in our city?
Well, we will see what kind of qualification you have, like sales channels, advertisement in market, and more details, and of course we give agent very competitive price and sales rebate.
Is your Machine operation systems in English?
Yes, for sure.
If we visit your factory, will you provide free training?
Sure thing! Most welcome to our factory and we will arrange free training for you.
Factory & Equipment
Factory interior showing manufacturing equipment Manufacturing equipment in operation Automated wire processing machinery
Customer Applications
Customer installation and usage examples
Product Certification
Junsheng product certification
