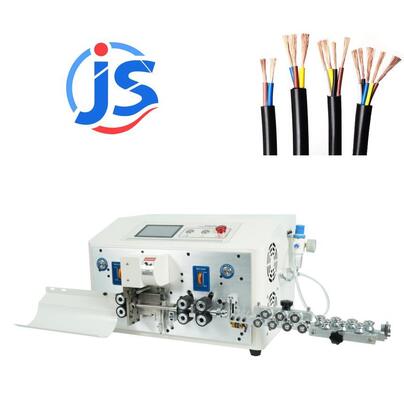

Touch Screen Automatic Cable Stripping Machine High Precision Wire Cutting Stripping Machine 550W

1
MOQ
1450
Price
Touch Screen Automatic Cable Stripping Machine High Precision Wire Cutting Stripping Machine 550W
Features Gallery Product Description Chat Now
Features
Specifications
Power: 550W
Blade Material: High Speed Steel
Output: 1000-1200pcs/hour
Wire Spe: ￠2-10mm (Round Sheath Wire)
Outer Front Strip: 1-210mm
Inner Core Rare Strip: 1-20mm
Weight: 45KG
Machine Size: 56*46*37cm
Wire Length Range: 1～9999mm
Inner Core Front Strip: 1-20mm
Voltage: 220V
Length Accuracy: ± (0.002xL)mm
Outer Rare Strip: 1-100mm
Inner Core Cable: 2 Cores, 3 Cores, 4 Cores,5cores
Display: 5 Inch PLC Screen
Max Conduit Diameter: ￠11mm
Screen Control: 1.5-inch PLC Touch Screen
Wire Types: PVC, Teflon, Braided, Fiberglass
Blade Type: Tungsten Steel
Core Condition: Free Of Deformation Or Scratches
Highlight:

Touch Screen Automatic Cable Stripping Machine

,

Automatic Cable Stripping Machine High Precision

,

Wire Cutting Stripping Machine 550W
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-SH10MM6
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description
High Precision Wire Cutting & Stripping Machine with 1000-1200pcs/hour Output and 5 Inch PLC Screen
Download Technical Specifications (HR-SH10MM6.xlsx)
Advanced 2-in-1 machine combining precision wire cutting and stripping capabilities for home appliance wire harness production.
  • 1.5-inch PLC touch screen control with precise length tolerance and adjustable cutting and peeling parameters
  • Multi-core wire compatibility (2/3/4/5 cores) with front-end stripping up to 210mm and back-end stripping up to 100mm for outer sheath, plus 20mm front and back stripping for inner sheath
  • Low power consumption design reducing energy usage while processing up to 1200 cables per hour
  • Compatible with various wire types including PVC, Teflon, Braided, and Fiberglass wires
  • Tungsten steel blades ensure clean, complete stripping of hard wire insulation without deformation or scratches to solid copper cores
Exhibition
Junsheng equipment exhibition and trade show display
Package And Shipping
Junsheng product packaging and shipping process
Quality Certifications:
Junsheng quality certification and standards documentation
