Home /Products/Cable Stripping Machine/One-key Stripping Medical Wire Harness Cable Stripper Machine with 4.3 Inch PLC Screen, High Speed Steel Blade, and 3000-4000pcs/hour Output

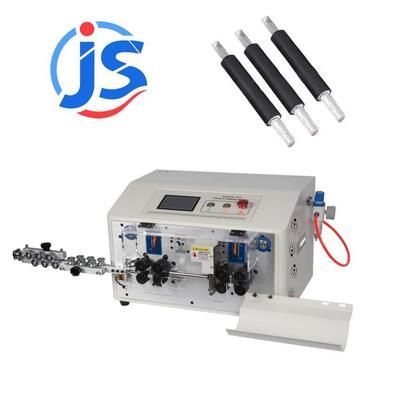

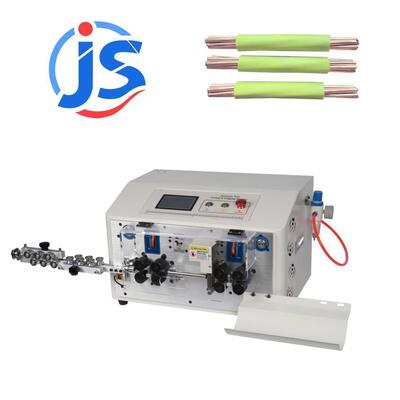

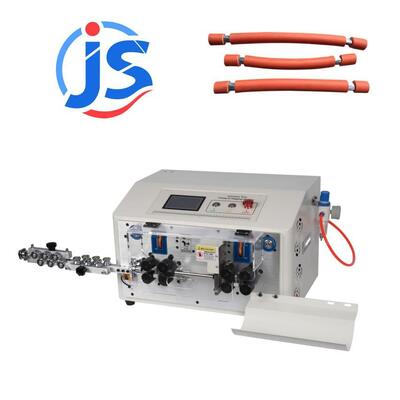

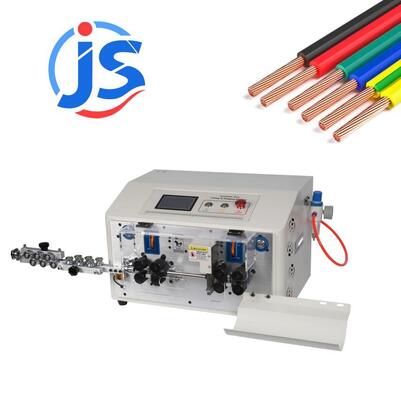

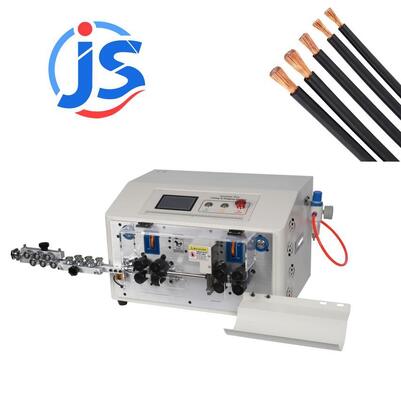

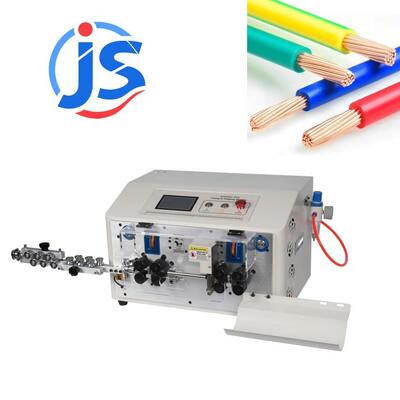

One-key Stripping Medical Wire Harness Cable Stripper Machine with 4.3 Inch PLC Screen, High Speed Steel Blade, and 3000-4000pcs/hour Output

1
MOQ
1350
Price
One-key Stripping Medical Wire Harness Cable Stripper Machine with 4.3 Inch PLC Screen, High Speed Steel Blade, and 3000-4000pcs/hour Output
Features Gallery Product Description Chat Now
Features
Specifications
Max Conduit Diameter: ￠11mm
Machine Size: 56*46*37cm
Front Strip Length: 1-80mm
Wire Type: PVC,Teflon,Braided,Fiberglass Wire
Blade Material: High Speed Steel
Power: 650W
Wire Length Range: 1～9999mm
Output: 3000-4000pcs/hour
Length Accuracy: ± (0.002xL)mm
Peeling Times: 16 Times
Weight: 50KG
Display: 4.3 Inch PLC Screen
Voltage: 220V
Rare Strip Length: 1-80mm
Back Strip Length: 80mm
Feeding Device: 8 Wheel
Blade Type: Tungsten Steel
Highlight:

4000pcs/hour wire stripper machine

,

4000pcs/hour cable stripper machine

,

high speed wire stripper machine
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-ST25MM8
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description
One-key Stripping Medical Wire Harness Cable Stripper Machine
Download Technical Specifications (HR-ST25MM8.xlsx)
Key Features
  • 1.4.3-inch PLC touch screen control with precise length tolerance and adjustable cutting and peeling parameters
  • 2.8 wheel feeding device specially customized for BV hard wire to ensure stable feeding and prevent wire bending and sliding during cutting and peeling processes
  • Various types of wire processing capability with front-end stripping length of 80mm and back-end stripping length of 80mm
  • Compatible with wire types including PVC, Teflon, Braided, and Fiberglass wire, with maximum endoscopic diameter of 11mm
  • High rigidity tungsten steel blades achieve clean and complete stripping of hard wire insulation with no deformation or scratches on the solid copper core

Exhibition
Junsheng equipment exhibition and trade show display
Package And Shipping
Junsheng product packaging and shipping process Junsheng product certification
Tag:

Automatic Wire Stripping Machine

Wire Stripper Machine

Cable Stripper Machine
