Home /Products/Cable Stripping Machine/Digital Display Wire Stripping Machine with 4.3 Inch PLC Screen and High Speed Steel Blades for 3000-4000pcs/hour Output

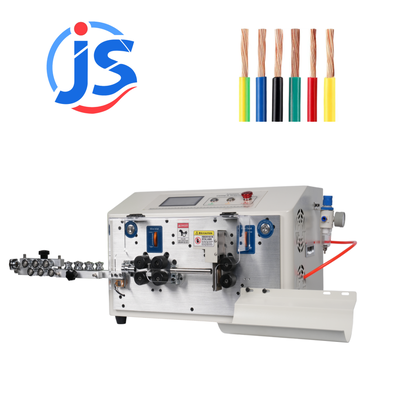

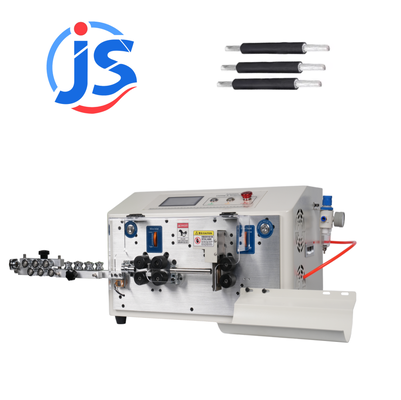

Digital Display Wire Stripping Machine with 4.3 Inch PLC Screen and High Speed Steel Blades for 3000-4000pcs/hour Output

1
MOQ
1250
Price
Digital Display Wire Stripping Machine with 4.3 Inch PLC Screen and High Speed Steel Blades for 3000-4000pcs/hour Output
Features Gallery Product Description Chat Now
Features
Specifications
Rare Strip Length: 1-80mm
Max Conduit Diameter: ￠11mm
Voltage: 220V
Weight: 43KG
Length Accuracy: ± (0.002xL)mm
Wire Length Range: 1～9999mm
Blade Material: High Speed Steel
Machine Size: 56*46*37cm
Peeling Times: 16 Times
Display: 4.3 Inch PLC Screen
Front Strip Length: 1-80mm
Power: 550W
Output: 3000-4000pcs/hour
Wire Types: PVC,Teflon,Braided,Fiberglass Wire
Back Strip Length: 80mm
Drive Wheels: 6-wheel Drive
Blade Type: Tungsten Steel
Processing Type: Single Strand Wire
Energy Consumption: Low Power
Core Protection: No Deformation/scratches
Highlight:

4000pcs/hour wire stripping machine

,

4000pcs/hour wire cutting stripping machine

,

high speed wire stripping machine
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-ST25MM6
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description
Digital Display Instrument Panel Harness Wire Stripping Machine
Download Technical Specifications (HR-ST25MM6.xlsx)
  • 1.4.3-inch touch screen with 6-wheel drive wire stripping system
  • Low power consumption and energy efficient operation
  • Single strand wire processing capability
  • Front-end stripping length: 80mm
  • Back-end stripping length: 80mm
  • Compatible with PVC, Teflon, Braided, and Fiberglass wires
  • Maximum endoscopic diameter: 11mm
  • High rigidity tungsten steel blades for clean, complete stripping

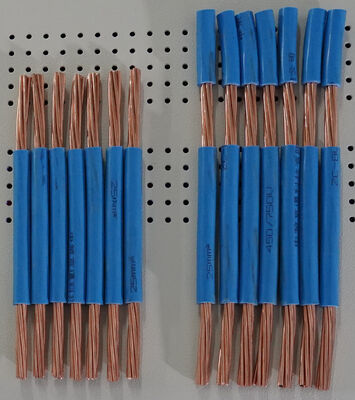

  • No deformation or scratches on solid copper core
Exhibition
Junsheng equipment exhibition and trade show display
Package And Shipping
Junsheng product packaging and shipping process
Junsheng product certification
