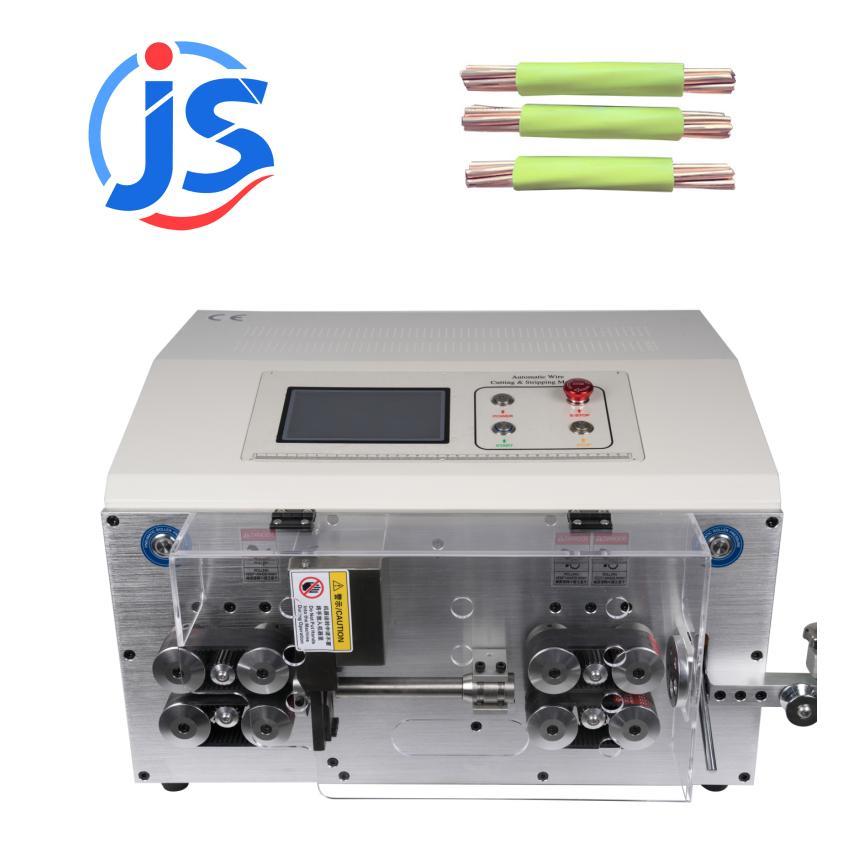

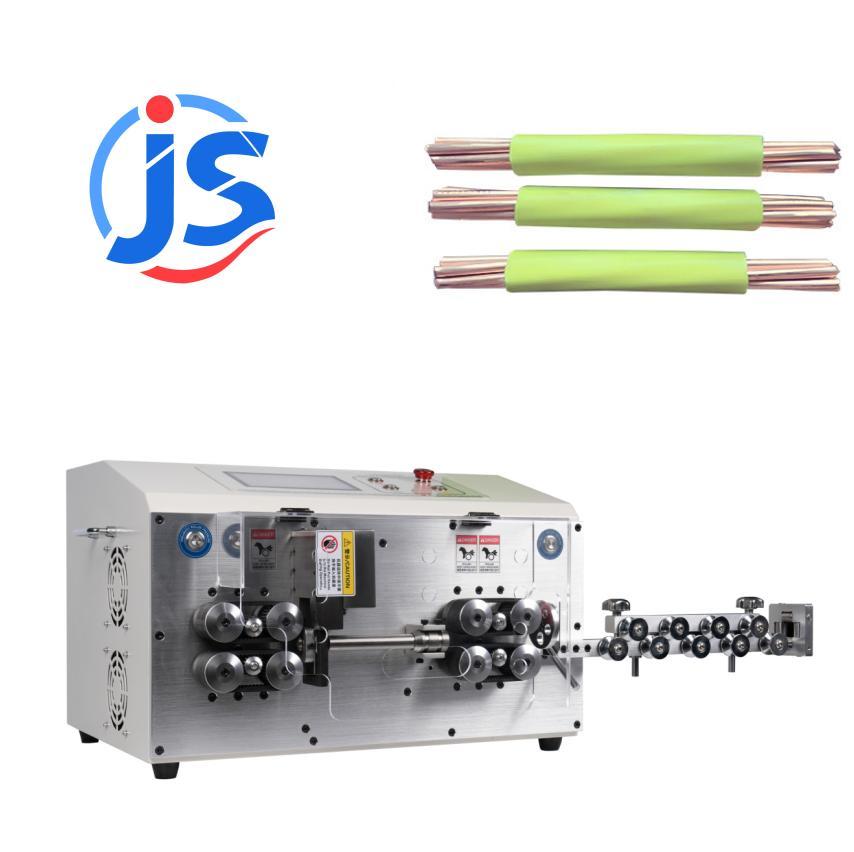

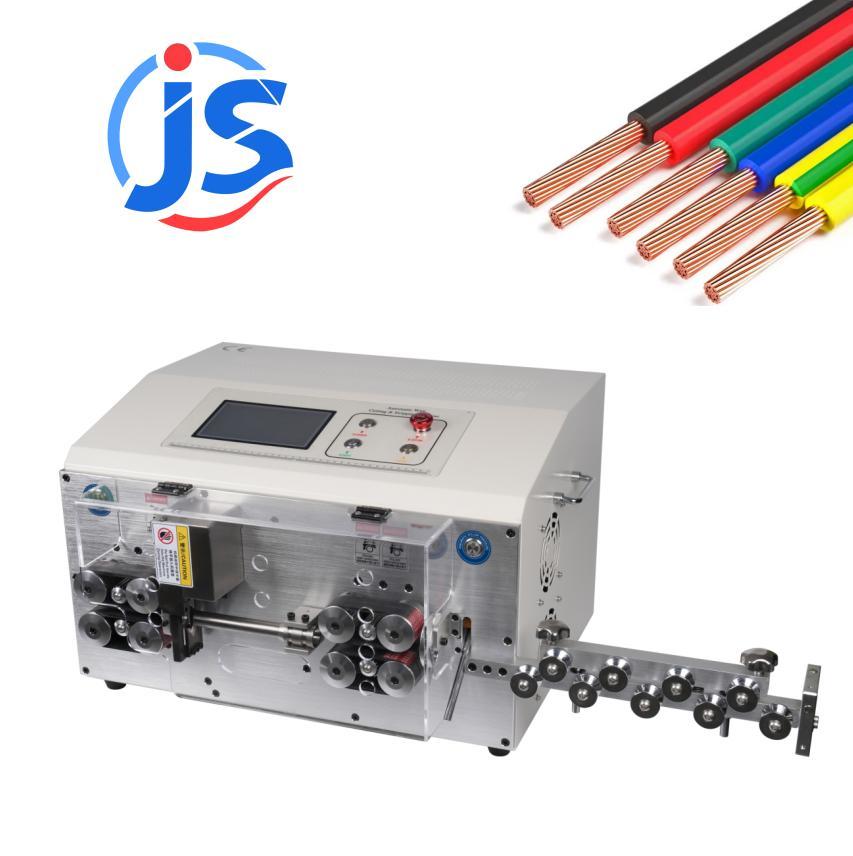

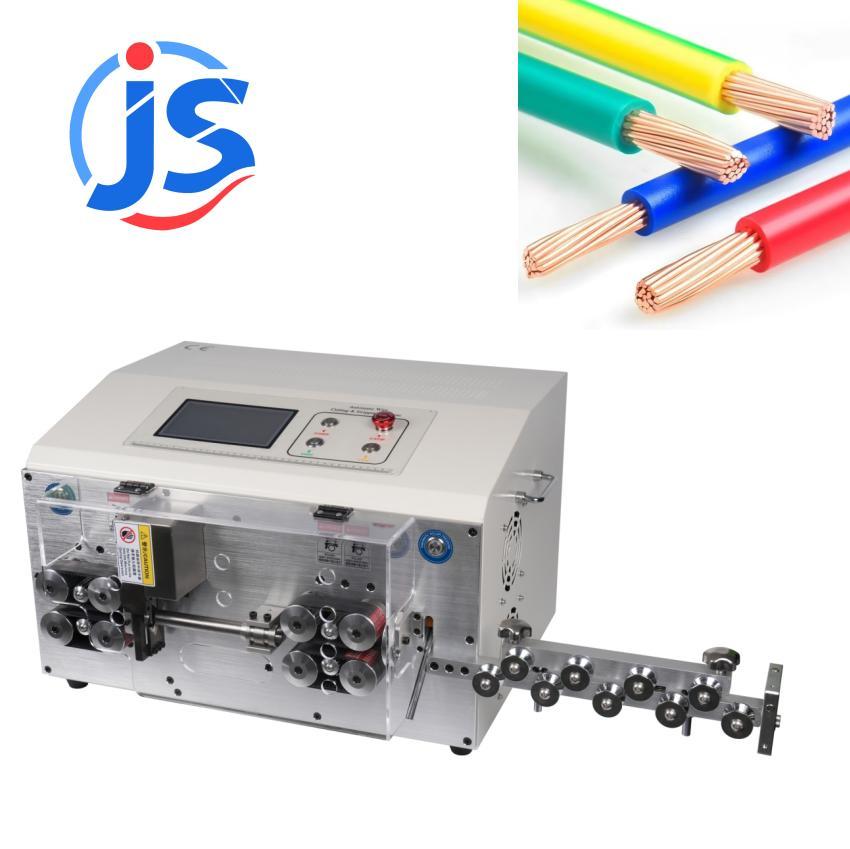

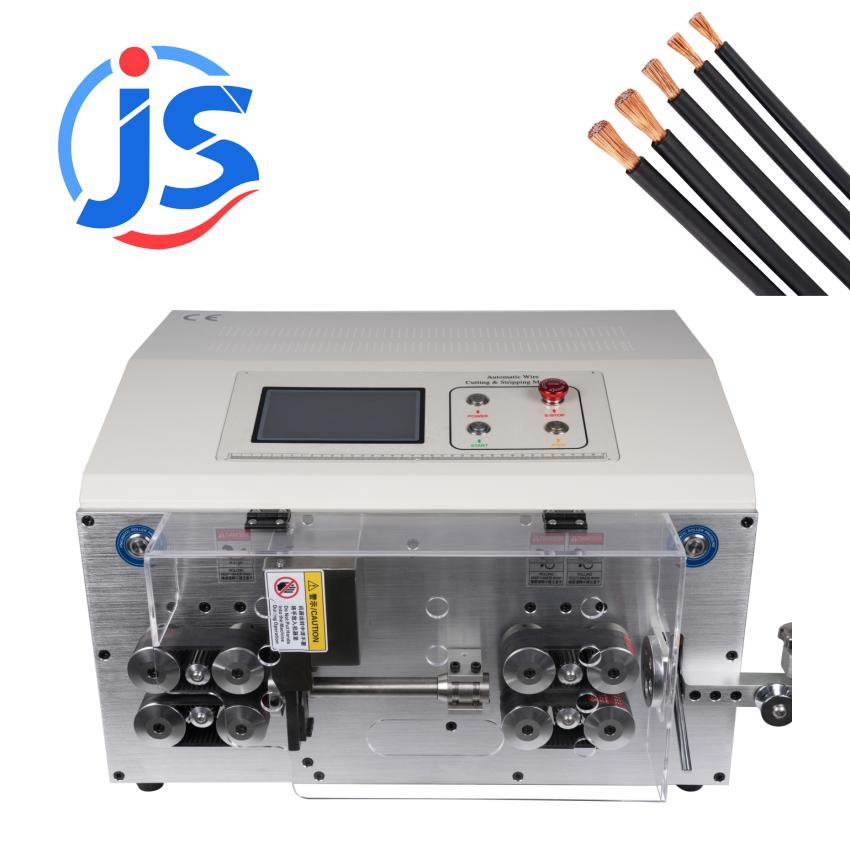

PLC Screen Automatic Cable Stripping Machine Programmable Cut And Strip Wire Machine 1000W

1
MOQ
2120
Price
PLC Screen Automatic Cable Stripping Machine Programmable Cut And Strip Wire Machine 1000W
Features Gallery Product Description Chat Now
Features
Specifications
Name: Automatic Cable Stripping Machine
Display: 7 Inch PLC Screen
Weight: 108KG
Cutting Length: 1-99999mm
Round Sheath Rare Strip: 1-100mm
Output: 2500-3000pcs/hour
Memory Capacity: 200pcs Program
Machine Size: 65*57*45cm
Driving Mode: 8-Wheel Belt Drive
Blade Material: High Speed Steel
Power: 1000W
Voltage: 220V
Round Sheath Front Strip: 1-100mm
Wire Cross-section: 1.0~70mm²
Max Circular Sheath: ￠ 18mm
Outer Steel Strip: Front End: 1-200mm, Rear End: 1-150mm
Strip Length: Front End: 1-100mm; Rear End: 1-100mm
Transportation Speed: 2500~3000 Pieces/hour
Drive Method: Screw Motor Drives Wheels
Stepper Motor: 0.1mm Per Step
Highlight:

PLC Screen Automatic Cable Stripping Machine

,

Programmable Cut And Strip Wire Machine

,

Cut And Strip Wire Machine 1000W
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-ST70D
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description
Programmable Automatic Cable Stripper with 70mm² Capacity and 8-Wheel Belt Drive for Wire Harness Processing
Product Specifications
Download Technical Specifications (HR-ST70D.xlsx)
  • 1.7-inch touch screen display with Chinese/English language switching
  • Wire processing capacity: MAX Ø 18mm (circular sheathed wire)
  • Wire cross-section range: 1.0~70mm² (50mm² max for BV wire, 70mm² max for BVR wire)
  • Outer steel strip length for circular sheath: Front end 1-200mm, Rear end 1-150mm
  • Strip length: Front end 1-100mm; Rear end 1-100mm
  • Blade material: High-speed steel
  • Production speed: 2500~3000 pieces/hour (L=200mm, depending on wire material)
  • Drive method: Screw motor drives inlet/outlet weir wheels
  • Automatic up/down adjustment of inlet/outlet steel wire pressure wheels
  • Drive mode: 8-wheel belt transmission with silent hybrid stepper motor (0.1mm per step)
