Home /Products/Cable Stripping Machine/Servo Motor BV Cable Cutting Stripping Machine Automatic Wire Cutting And Stripping Machine

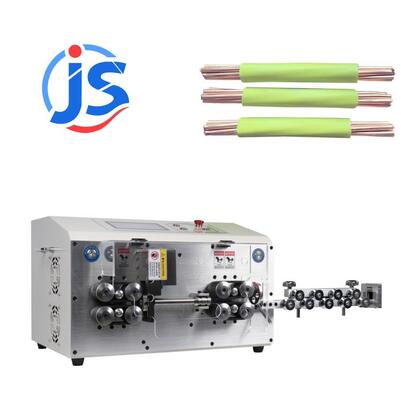

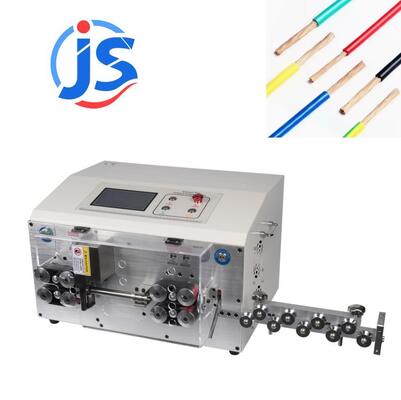

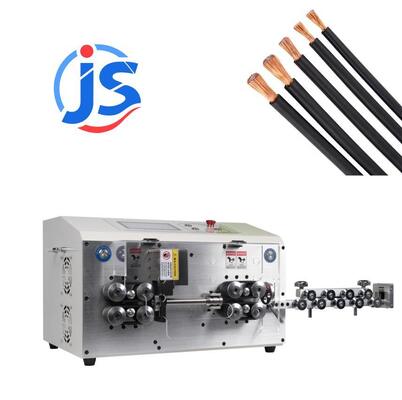

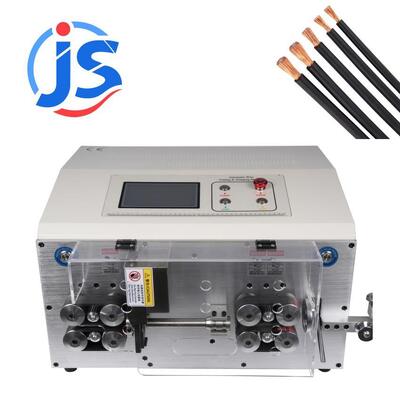

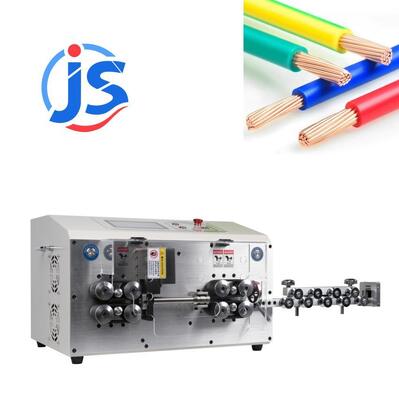

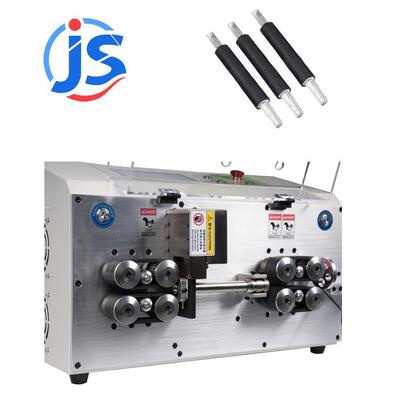

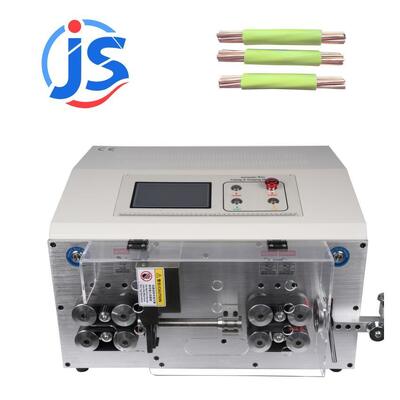

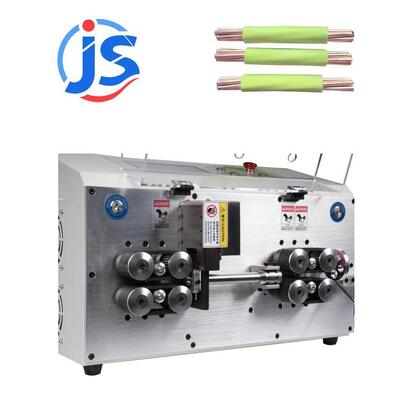

Servo Motor BV Cable Cutting Stripping Machine Automatic Wire Cutting And Stripping Machine

1
MOQ
2050
Price
Servo Motor BV Cable Cutting Stripping Machine Automatic Wire Cutting And Stripping Machine
Features Gallery Product Description Chat Now
Features
Specifications
Display: 7 Inch PLC Screen
Weight: 108KG
Cutting Length: 1-99999mm
Round Sheath Rare Strip: 1-100mm
Output: 2500-3000pcs/hour
Memory Capacity: 200pcs Program
Machine Size: 65*57*45cm
Blade Material: High Speed Steel
Voltage: 220V
Round Sheath Front Strip: 1-100mm
Power: 1000W
Driving Mode: 8-Wheel Belt Drive
Wire Cross-section: MAX ￠ 18mm
BV Wire Cross-section: 1.0~50mm²
BVR Wire Cross-section: 1.0~70mm²
Outer Steel Strip Front: 1-200mm
Outer Steel Strip Rear: 1-150mm
Strip Length Front: 1-100mm
Strip Length Rear: 1-100mm
Transportation Speed: 2500~3000 Pieces/hour
Highlight:

Servo Motor Cable Cutting Stripping Machine

,

BV Cable Cutting Stripping Machine

,

Automatic Wire Cutting And Stripping Machine
Basic Infomation
Place of Origin: China
Brand Name: JunSheng
Certification: CE /ISO
Model Number: HR-ST70D
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Within 5 Working Days
Payment Terms: L/C,D/A,Western Union,T/T,D/P
Supply Ability: 200
Product Description
Servo Motor BV Cable Wire Cutting and Stripping Machine with 7 Inch PLC Screen, High Speed Steel Blade, and 8-Wheel Belt Drive
Technical Specifications
Download Technical Specifications (Excel)
  • 1.7-inch touch screen display with Chinese/English language switching
  • Wire processing capacity: MAX Ø18mm (circular sheathed wire)
  • Wire cross-sections: 1.0~70mm² (50mm² max for BV wire, 70mm² max for BVR wire)
  • Outer steel strip length for circular sheath: Front end 1-200mm, Rear end 1-150mm
  • Strip length: Front end 1-100mm; Rear end 1-100mm
  • Blade material: High-speed steel
  • Production speed: 2500~3000 pieces/hour (L=200mm, depending on wire material)
  • Drive method: Screw motor drives inlet/outlet weir wheels
  • Automatic up/down adjustment of inlet/outlet steel wire pressure wheels
  • Drive mode: 8-wheel belt transmission (silent hybrid stepper motor, 0.1mm per step)
Exhibition
Our equipment is regularly featured at industry exhibitions and trade shows, showcasing our latest innovations and technological advancements.
Junsheng equipment exhibition and trade show display
Package and Shipping
We ensure secure packaging and reliable shipping for all our equipment to guarantee safe delivery to our customers worldwide.
Junsheng product packaging and shipping process
Junsheng product quality certificate
Tag:

Automatic Wire Stripping Machine

Wire Stripper Machine

Cable Stripper Machine
