From the USB cable to the power cable,it can be achieved by this machine.Especially for manufacturers with more wire types.The speed can reach 2100pcs/hour, which is 5-6 times than manual. it does not occupy the big place. The workbench is designed according to the convenience of sitting,reduces the fatigue strength of employees and improving work efficiency. This machine adopts programmable controller (PLC) control and man-machine interface control. The cruise mode can be set, and the operation can be continued without pressing the switch all the time.It is convenient to adjust and it will alarm the fault point when the equipment doesn’t work.
|

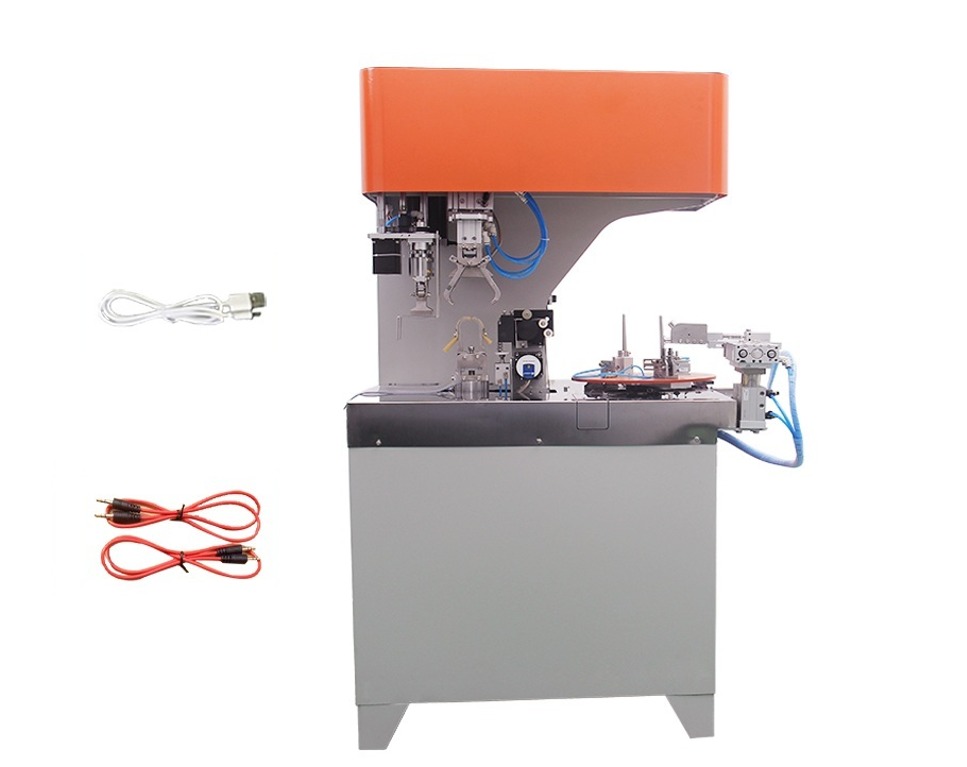

HR-40XL Factory Price Automatic Power Cable Coiling Wire Winding Bundling Tying Machine
|
|
|
Model
|
HR-40XL
|
|
Voltage
|
AC 220V/380V
|
|
Winding speed
|
≤1000pcs/h
|
|
Laps of tie length
|
Adjustable(minimum length 85mm)
|
|
Diameter of coil
|
≤50mm
|
|
Net Weight
|
120KGS
|
|
Package
|
Export Wooden Case with Foam
|
|
Numbers of coil
|
Adjustable
|
|
Spacing of winding
|
80-180mm
|
|
Applicable wire diameter
|
≤10mm
|
|
Pressure of air source
|
0.4-0.5Mpa( pure none moisture oil compressed air)
|
|
Capacity
|
1800pcs/h
|
|
Package Size
|
105*125*185cm
|
|
Machine Size
|
100*120*180cm
|
|
Delivery Time
|
Within 3 working days after deposit
|
|
Warranty
|
Warranty for one year with lifetime maintain service
|
