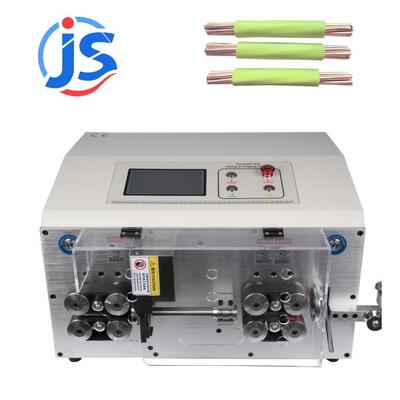

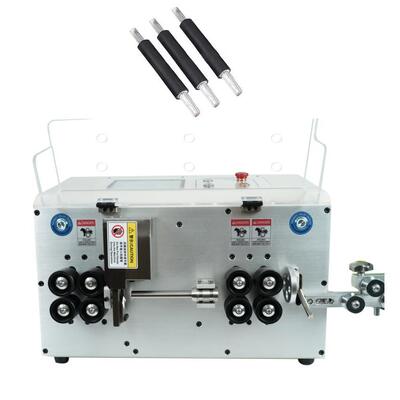

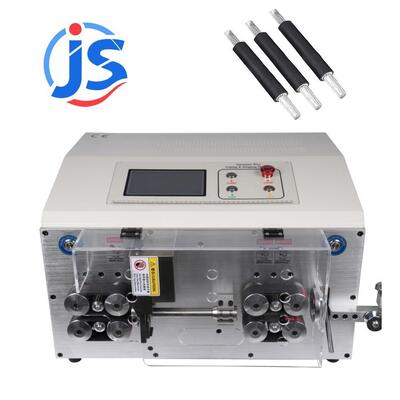

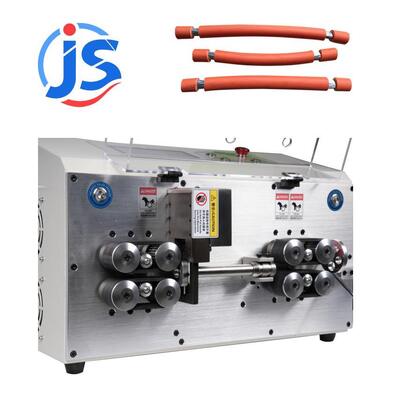

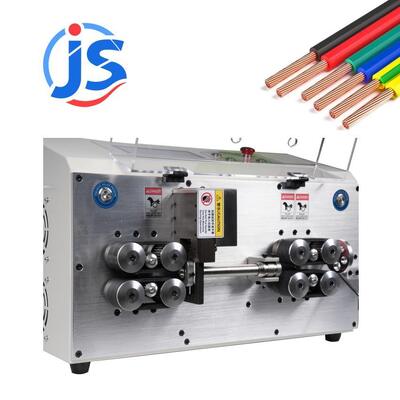

Wire Stripping and Cutting; Maximum Cross-sectional Area: BV Wire: 35 Mm²; BVR Wire: 50 Mm²; Maximum Diameter: 16 mm

Machine dimension: 650*570*425mm

Operation interface: 7 inch Chinese and English switching touch screen display

Wire cross section: MAX16mm (Round sheath wire)

Wire cross section: 1.0~50mm² (BV wire maximum 35mm², BVR wire maximum 50mm²)

Length accuracy: ± 0.2mm

Max conduit inside diameter:17mm (Motor driven jump tube, no need to connect air pump)

Wire length range:Max 100m

Round sheath outer wire strip length: Front end:1-200mm, rear end:1-150mm

50mm² wire strip length:Front end:1-100mm; rear end:1-100mm

Blade material: high-speed steel Transport speed: (L=200mm) 3000~3500pieces /hour piecesDepends on the material of the wire

Driving mode: 8-wheel belt drive (silent hybrid stepper motor, 0.1mm forward per step)

Founded in 2015, Shenzhen Junsheng Automation Equipment Co., Ltd. is a high-tech automation enterprise engaged in the R & D, manufacturing, sales and service of various types of automation equipment including cable harness processing equipment and automatic cutting equipment. Our main products are as below:Automatic Cable Cutting Machine;Automatic Cable Stripping Machine;Automatic Cable Twisting Machine;Automatic Cable Coiling Machine;Automatic Cable Bundling Machine;Automatic Cable Soldering Machine;Automatic Cable Testing Machine;Automatic Cable Scrap Machine;Automatic Cable Payoff Device;Mainly for the automobile and motorcycle, electronics, home appliances, electrical wiring harness production and harness processing business services. Division I have a complete and scientific quality management system, in strict accordance with the ISO9002 management procedures, the enterprise for the quality and efficiency of the struggle and strive to continue efforts. For the major electronic manufacturers at home and abroad to provide supporting products and equipment and improve after-sales service. Division I sincerely welcome all walks of life at home and abroad come to visit, study, business negotiations and guidance co-ambitious. The whole company up and down adhere to the "progressive and realistic rigorous unity" approach, and constantly blaze new trails, technology as the core, depending on the quality of life, Feng users for God and dedication to provide our clients with cost-effective products and meticulous after-sales service. "Rely on science and technology and development, and constantly provide users with the satisfaction of high-tech products" is our constant pursuit.
