HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine

5
MOQ
$3,200
Price
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
Features Gallery Product Description Chat Now
Features
Specifications
Usage: Crimping
Dimension(L*W*H): 100*70*155 Cm
Power(W): 2300W
Weight (KG): 400
Operating Mode: Automatic
Product Name: Full Automatic Wire Stripping Terminal Crimping Machine
Crimp Pressrue: 2T-4T
Voltage: 220V / 60/50Hz
Cable Range: AWG #30~AWG#14
Air Pressure: 0.4~0.5Mpa
Cable Size: 0.05mm2-2mm2
Cutting Accuracy: 0.5mm
Highlight:

Double-Head Wire Crimping Machine

,

Full Automatic Wire Stripping Crimping Machine

,

All-in-One Terminal Crimping Machine
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: JUNSHENG
Model Number: HR-602
Payment & Shipping Terms
Product Description
Product Overview

HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine

HR602 is with function of wire feeding, cutting, stripping,crimping All in One type machine. It is with digital control screen and imported spare parts. Worker can easily operate after training, it is easy to adjust the cutting length, depth and position of terminal. And output of this machine is higher than other machines for terminal crimping which lower cost of factory.
Products Description
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
Model
HR-602
Voltage
AC 220V
Cable Size
0.05mm2-2mm2
Wire Range
AWG #30～AWG#14
Air Pressure
0.4~0.5Mpa
Cutting Length
40-9999mm
Cutting Accuracy
0.5mm
Front Strip
 1-15mm（Half Strip 2-12mm）
Rare Strip
1-8mm（Half Strip 2-6mm）
Net Weight
390KGS
Output
4800 Pcs/H（Length 40mm）
Package
Export Wooden Case with Foam
Package Size
105*75*160cm
Machine Size
100*70*155cm
Delivery Time
Within 3 working days after deposit
Warranty
Warranty for one year with lifetime maintain service
Details Images

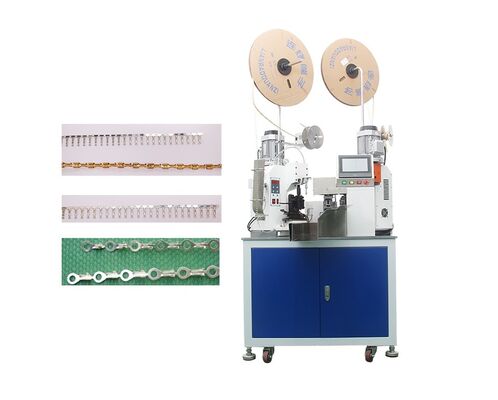

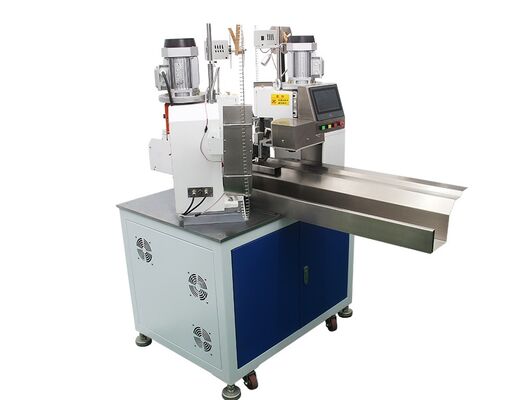

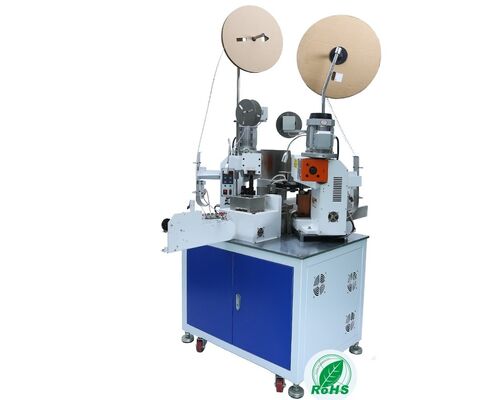

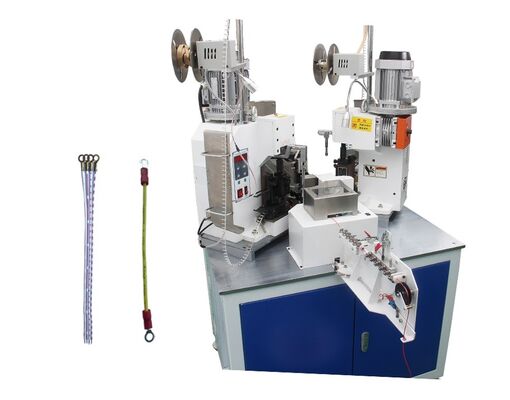

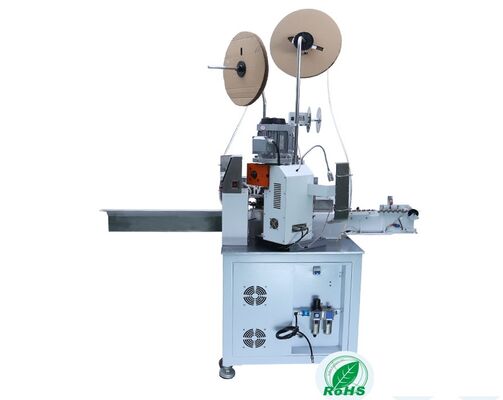

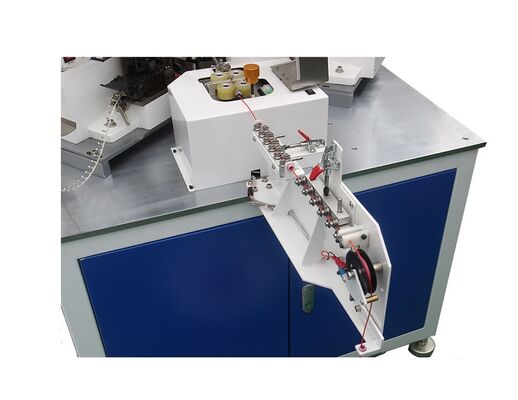

HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
Available Terminal Crimping
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
Product packaging
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
Exhibition & customer Photos
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
Company Profile
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
HR-602 Full Automatic Double -Head Wire Stripping Terminal Crimping Machine All in One type machine
FAQ
Q1. What is your delivery date?
A: The delivery date is about 5-7 working days after receive the payment.

Q2.What is the payment way ?
We provide Visa, Mastercard, T/t, Paypal, Apple Pay, Google Pay, Gc Real Time Bank Transfer.

Q3.What the service can you provide?
Support product customization, any requirements you need can be customized according to your requirements.

Q4.How about the after service and guarantee period?
We offer 1 year warranty since the arrival of the machine. Besides, we provide 7x24 hours Online support, or face-to-face online
communications, free training are available.

Q5.Do you provide the user manual and operating video to support us ?
A: We will provide the English user manual for free and the operating video is available. Our software is all English
