Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine

5
MOQ
$2,900
Price
Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine
Features Gallery Product Description Chat Now
Features
Specifications
Usage: Crimping
Dimension(L*W*H): 60*70*110 Cm
Power(W): 2300W
Weight (KG): 360
Operating Mode: Automatic
Product Name: Automatic Wire Cutting Stripping Terminal Crimping Machine
Crimping Pressure: 1.5T
Voltage: 110/220V /380V 60/50Hz
Cable SPE: AWG#18-AWG#32
Cutting Length: 25mm-99999mm
Stripping Length: 1.5mm-10mm
Gross Weight: 370kgs
Highlight:

Automatic Wire Cutting Crimping Machine

,

Wire Stripping Crimping Machine

,

Terminal Crimping Machine
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: JUNSHENG
Model Number: HR-601
Payment & Shipping Terms
Product Description
Product Overview

Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine

HR-601 is featured with high-tech variable frequency servo technology and electronic precise positioning no need to change blade,. This machine is good for very big non-standardized terminals with high accuracy. It is with tight structure and little size of machine, low noise, touch screen to change size of crimping, very easy to operate for normal workers
Products Description
Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine
Model
HR-601
Voltage
110V/220V/380V
Function
Cutting, Stripping, Twisting, Crimping process
Frequency
50HZ/60HZ
Crimping Pressure
1.5T
Air Pressure
0.5Mpa
Cable SPE
 AWG#18-AWG#32
Cutting Length
25mm-99999mm
Net Weight
360KGS
Gross Weight
370KGS
Package
Export Wooden Case with Foam
Package Size
65*75*115cm
Output
4000PCS-5000PCS/H (Length 200mm)
Cutting Accuracy
(1+L)*0.2%
Stripping Length
1.5mm-10mm
Machine Size
60*70*110cm
Delivery Time
Within 3 working days after deposit
Warranty
Warranty for one year with lifetime maintain service

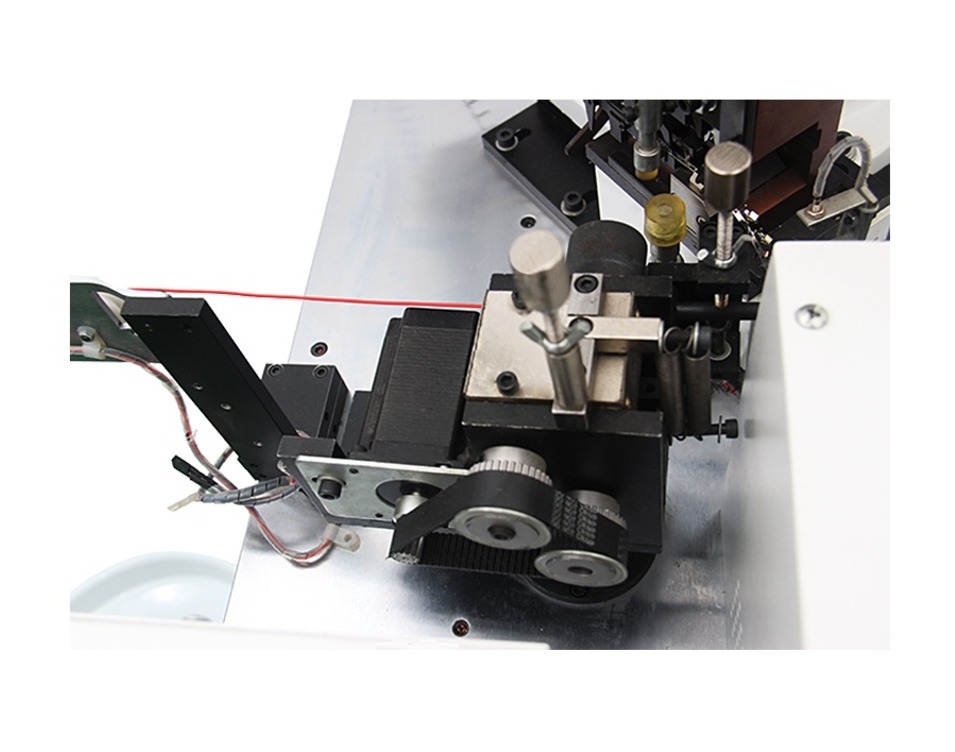

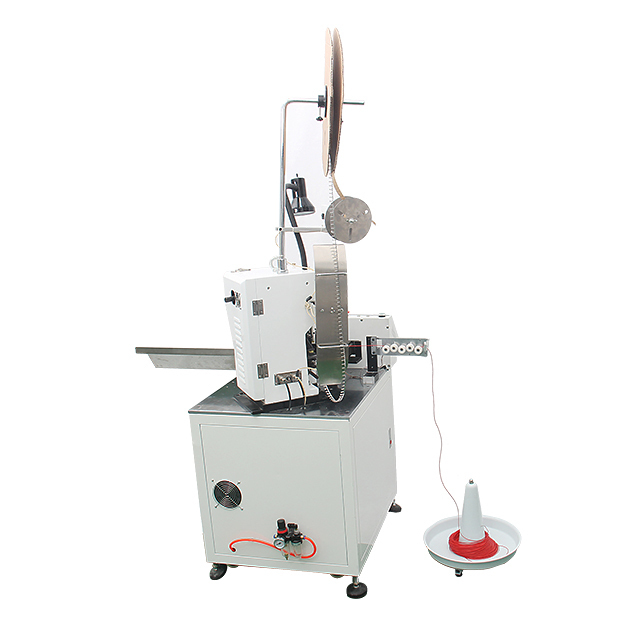

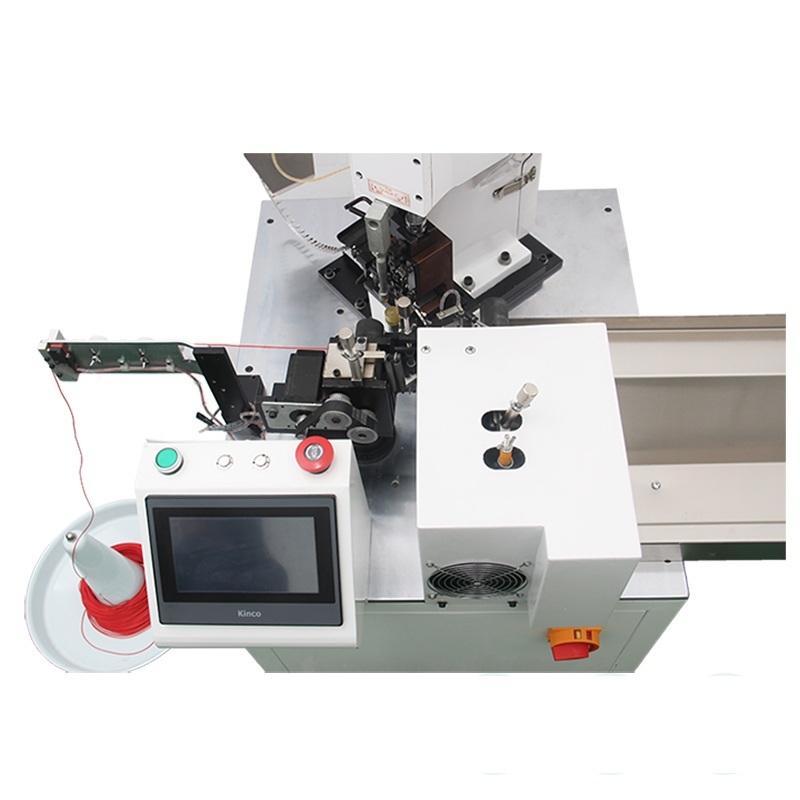

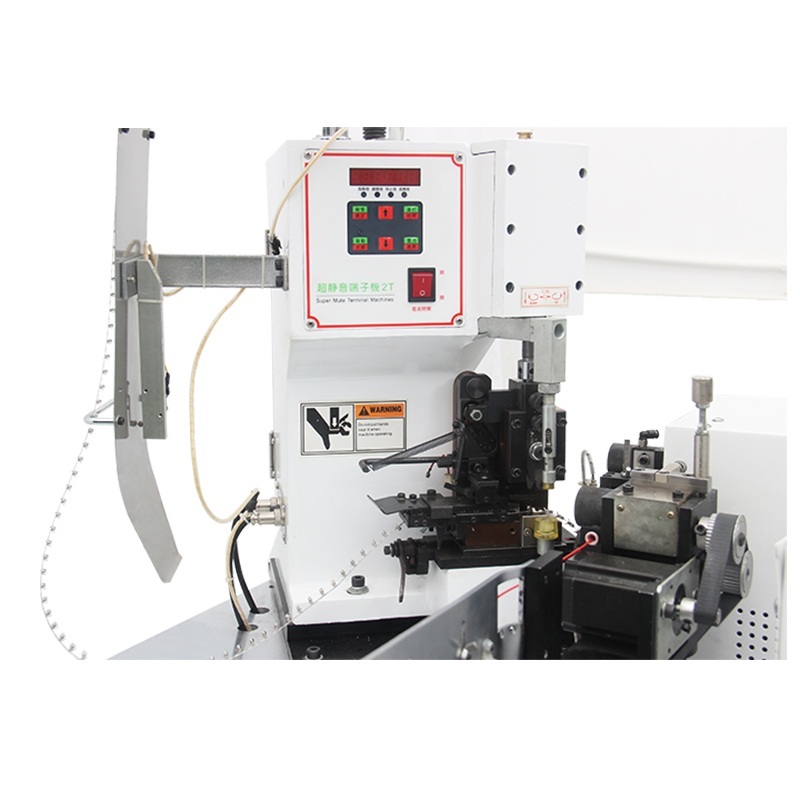

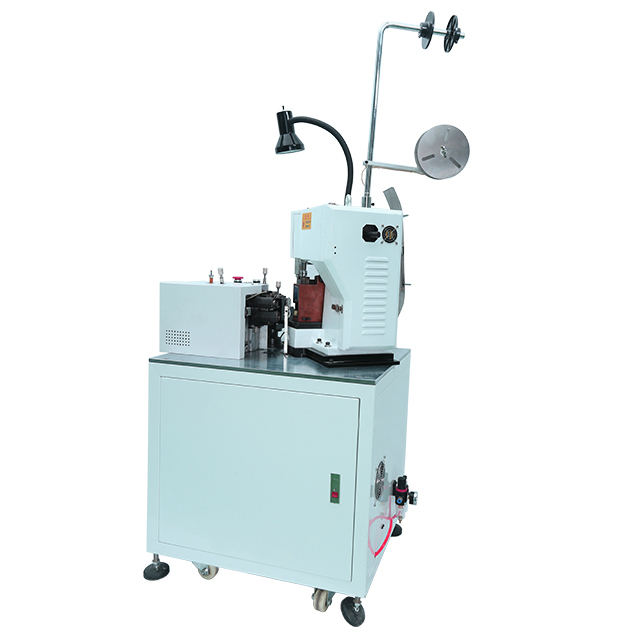

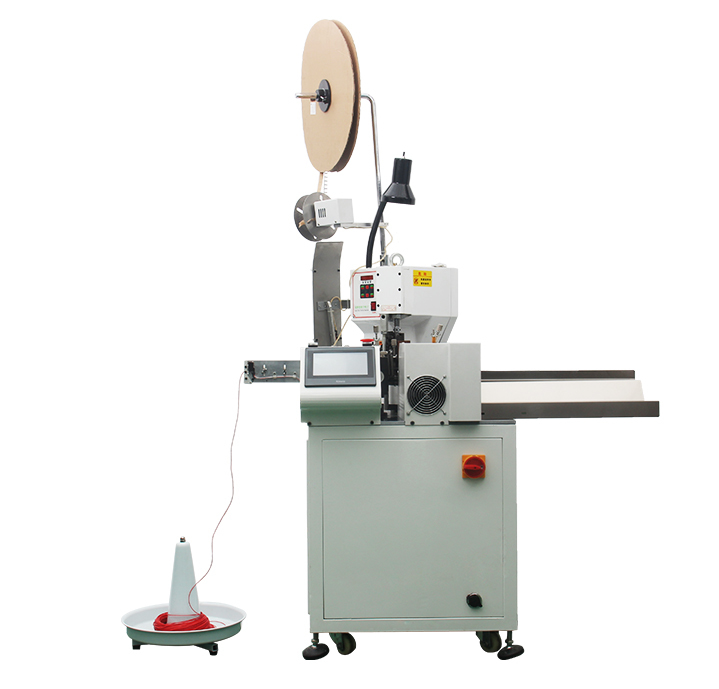

Details Images
Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine
Available Terminal Crimping
Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine
Product packaging
Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine
Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine
Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine
Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine
Exhibition & customer Photos
Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine
Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine
Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine
Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine
Company Profile
Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine
Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine
Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine
Factory Price HR-601 Automatic Wire Cutting Stripping Terminal Crimping Machine
FAQ
Q1. What is your delivery date?
A: The delivery date is about 5-7 working days after receive the payment.

Q2.What is the payment way ?
We provide Visa, Mastercard, T/t, Paypal, Apple Pay, Google Pay, Gc Real Time Bank Transfer.

Q3.What the service can you provide?
Support product customization, any requirements you need can be customized according to your requirements.

Q4.How about the after service and guarantee period?
We offer 1 year warranty since the arrival of the machine. Besides, we provide 7x24 hours Online support, or face-to-face online
communications, free training are available.

Q5.Do you provide the user manual and operating video to support us ?
A: We will provide the English user manual for free and the operating video is available. Our software is all English
