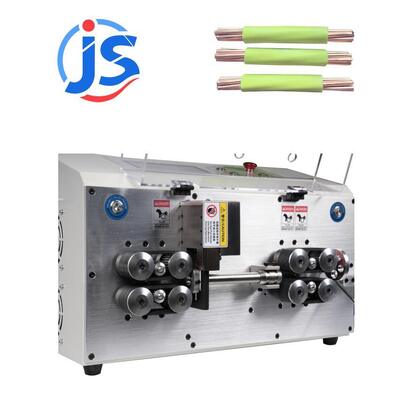

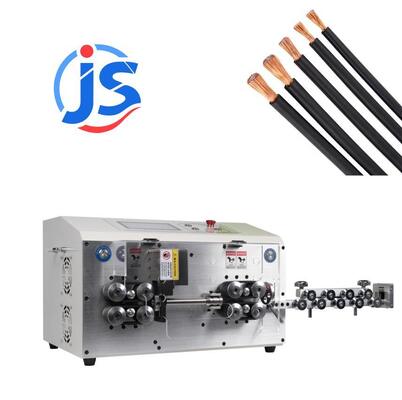

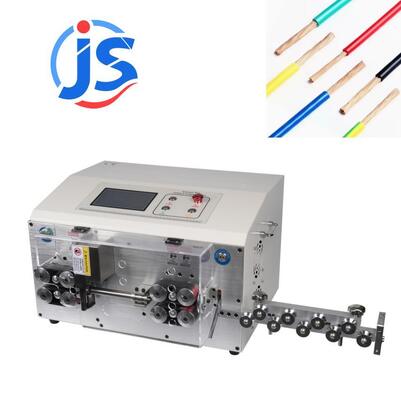

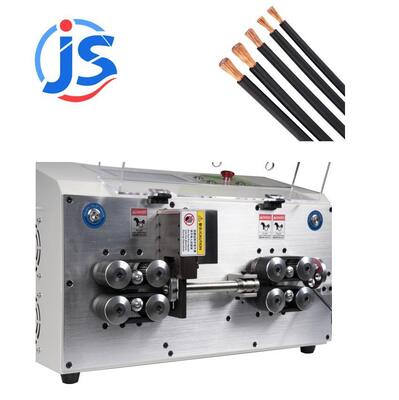

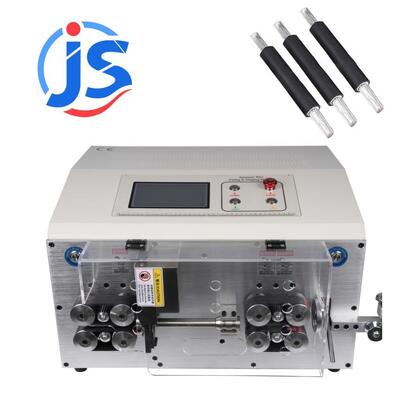

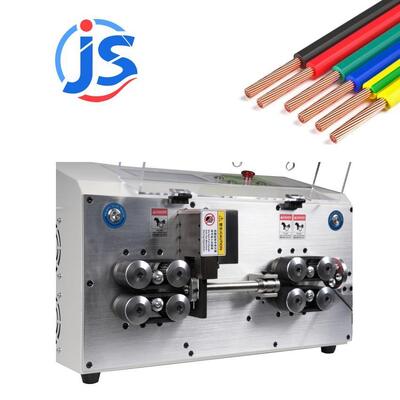

Electric Automatic Cable Cutting and Stripping Machine BVR AWG 1.0~70mm² with 110V/220V 1000W Motor and Easy Operation Cutter

Durable: Stripping Blade Can Cut at least 500000 times at least

Model:HR-ST70D(70mm² motor lifting conduit, motor screw lifting wheel ,Knife holder with stepper motor) (BV wire maximum 50mm², BVR wire maximum 70mm²)

Machine dimension:650*570*425mm/

Weight:108KG Power:1000W/

Electrical connection: 110V/220V 50HZ/60HZ /

Operation interface: 7 inch Chinese and English switching touch screen display/

Wire cross section: MAX 18mm (Round sheath wire)/

Wire cross section: 1.0~70mm² (BV wire maximum 50mm², BVR wire maximum 70mm²)/

Length accuracy: ± 0.2mm/

Max conduit inside diameter:20mm (Motor driven jump tube, no need to connect air pump)/

Wire length range:Max 100m/

Round sheath outer wire strip length: Front end:1-200mm, rear end:1-150mm/

Strip length:Front end:1-100mm; rear end:1-100mm/

Blade material: high-speed steel/

Transport speed: (L=200mm) 2500~3000pieces /hour pieces Depends on the material of the wire/

Drive method for inlet and outlet weir wheels: screw motor lifts the wheels, and the inlet and outlet wire pressure wheels are automatically adjusted up and down/

Driving mode: 8-wheel belt drive (silent hybrid stepper motor, 0.1mm forward per step) /

Good Price : Agent Price Support if you can be our distributor

Fast Delivery : Delivery within 7 days after payment

Good After Service: 24 Hours technical surpoort always

Pvc Insulated Cables Stripping Machine //

low Voltage Cable Strip Machine pvc Sheathed Cable Stripping Machine //

pvc Sheathed Cable Cutting Stripping Machine //

multi Cores Power Cable Stripping Machine //

new Energy Cable Rotary Stripping Machine //

charge Gun Cable Stripper Machine rotary Blade Stripping Machine

Founded in 2015, Shenzhen Junsheng Automation Equipment Co., Ltd. is a high-tech automation enterprise engaged in the R & D, manufacturing, sales and service of various types of automation equipment including cable harness processing equipment and automatic cutting equipment. Our main products are as below:Automatic Cable Cutting Machine;Automatic Cable Stripping Machine;Automatic Cable Twisting Machine;Automatic Cable Coiling Machine;Automatic Cable Bundling Machine;Automatic Cable Soldering Machine;Automatic Cable Testing Machine;Automatic Cable Scrap Machine;Automatic Cable Payoff Device;Mainly for the automobile and motorcycle, electronics, home appliances, electrical wiring harness production and harness processing business services. Division I have a complete and scientific quality management system, in strict accordance with the ISO9002 management procedures, the enterprise for the quality and efficiency of the struggle and strive to continue efforts. For the major electronic manufacturers at home and abroad to provide supporting products and equipment and improve after-sales service. Division I sincerely welcome all walks of life at home and abroad come to visit, study, business negotiations and guidance co-ambitious. The whole company up and down adhere to the "progressive and realistic rigorous unity" approach, and constantly blaze new trails, technology as the core, depending on the quality of life, Feng users for God and dedication to provide our clients with cost-effective products and meticulous after-sales service. "Rely on science and technology and development, and constantly provide users with the satisfaction of high-tech products" is our constant pursuit.
