HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine

5
MOQ
$1,500
Price
HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine
Features Gallery Product Description Chat Now
Features
Specifications
Usage: Stripping
Dimension(L*W*H): 45*40*30cm(17.72*15.75*11.81in)
Weight (KG): 40
Operating Mode: Automatic
Product Name: Automatic Cable Wire Stripping Bending Machine
Cutting Length: 0.1-99999mm
Voltage: 220V/ 380V 60/50Hz
Function: Wire Stripping Bending
Bend Times: 20 Times
Cable OD Range: 0.5mm2-10mm2
Bend Degree: Max 150 Dgree
Highlight:

Automatic Wire Stripping Machine

,

Cable Bending Machine

,

Wire Cutting Stripping Machine
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: JUNSHENG
Model Number: HR-10SQB
Payment & Shipping Terms
Product Description
Product Overview

High Speed fully Automatic Wire Cutting and Stripping machine For Large Wire

This machine is used for high speed cutting,double end stripping,single-end stripping and half-stripping.The servo motor is used to control the cutting and stripping to make cutting length more precise.It combines the advantages of computerized wire cutting machine with easy adjustment and high efficiency of mechanical cutting machine.The function of the front clip and the post-release increases the applicability,speed,stability and accuracy of the machine.Cable type for USB, AC, RGB, 1394, DC power cables,single-strand,isolation cables and flat cable.
Products Description
HR-10SQB Automatic Wire Stripping machine Cable Bending Machine Wire Cutting Machine
Model
HR-10SQB
Voltage
220V
Power
350W
Frequency
50HZ/60HZ
Drive Way
2 wheels
Display
7inch LCD
Cable OD Range
0.5mm2-6mm2
Bend Degree
Max 150 dgree
Cutting Length
0.1-99999mm
Stripping Length
0.1-50mm
Cutting Tolerance
±0.002Lmm
Min bend size
5mm
Speed of Stripping
800-1500PCS/H
Pipe ID
6mm/8mm
Net Weight
40KGS
Gross Weight
45KGS
Package
Export Carton with Foam
Package Size
56*52*37cm
Machine Size
45*40*30cm
Delivery Time
Within 5 days after deposit
Warranty
Warranty for one year with lifetime maintain service

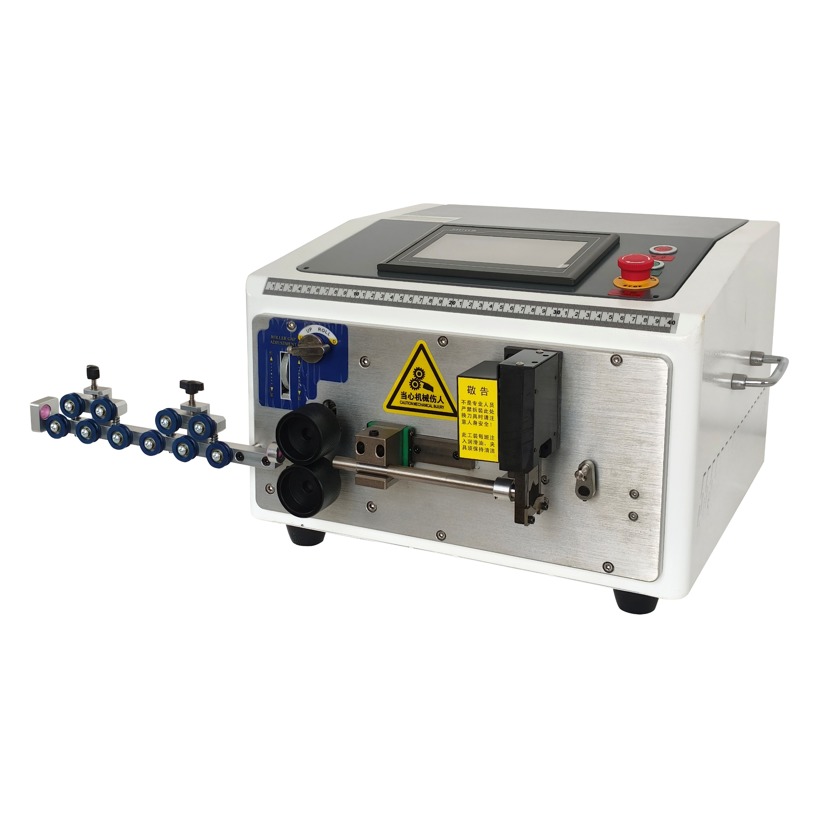

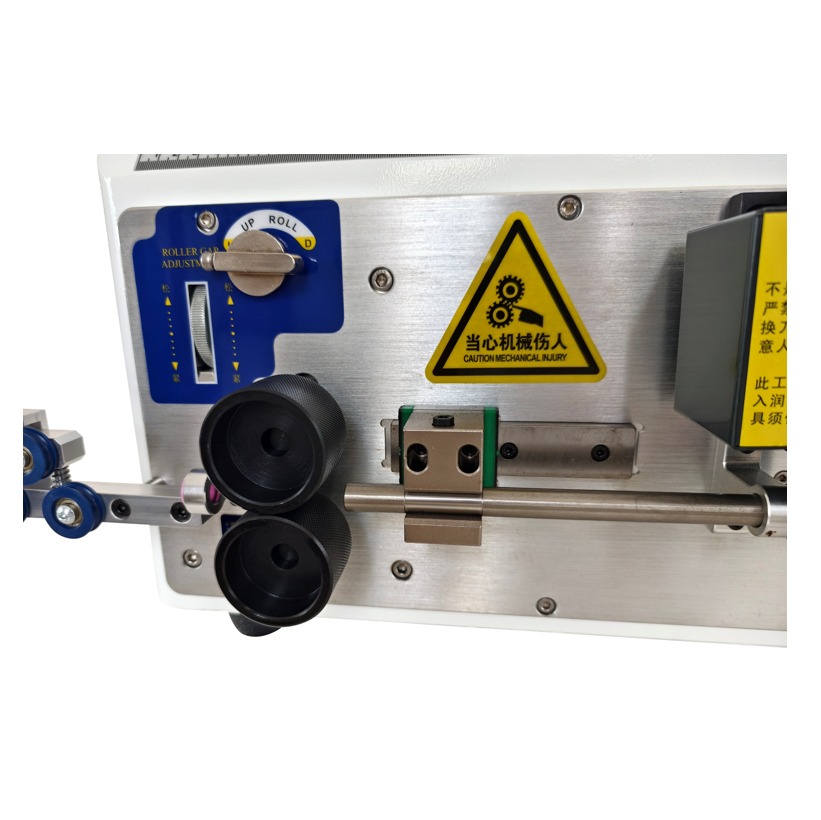

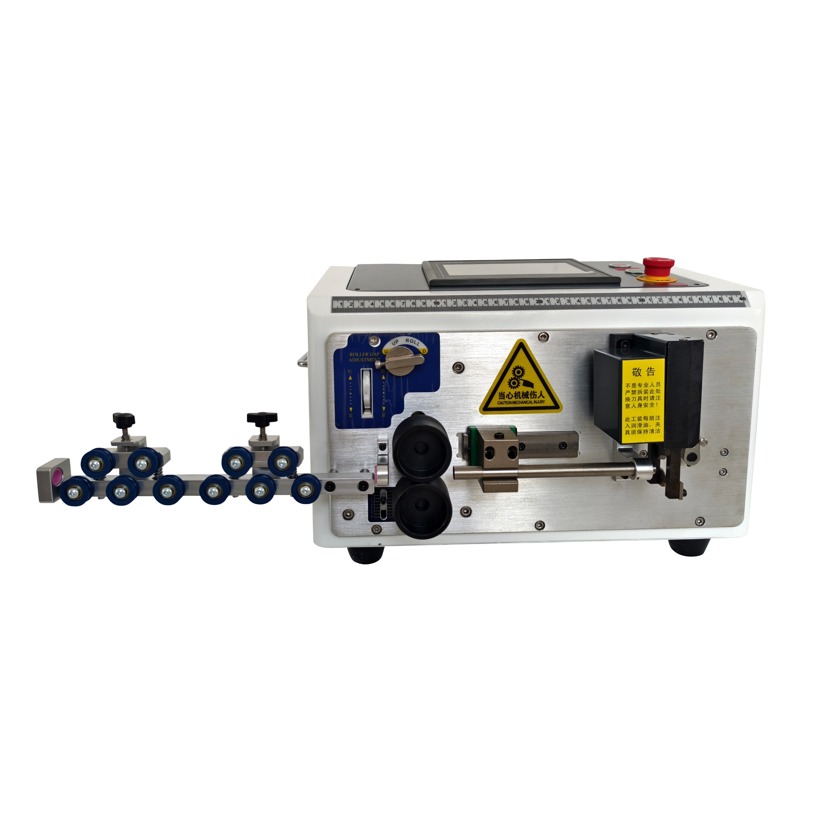

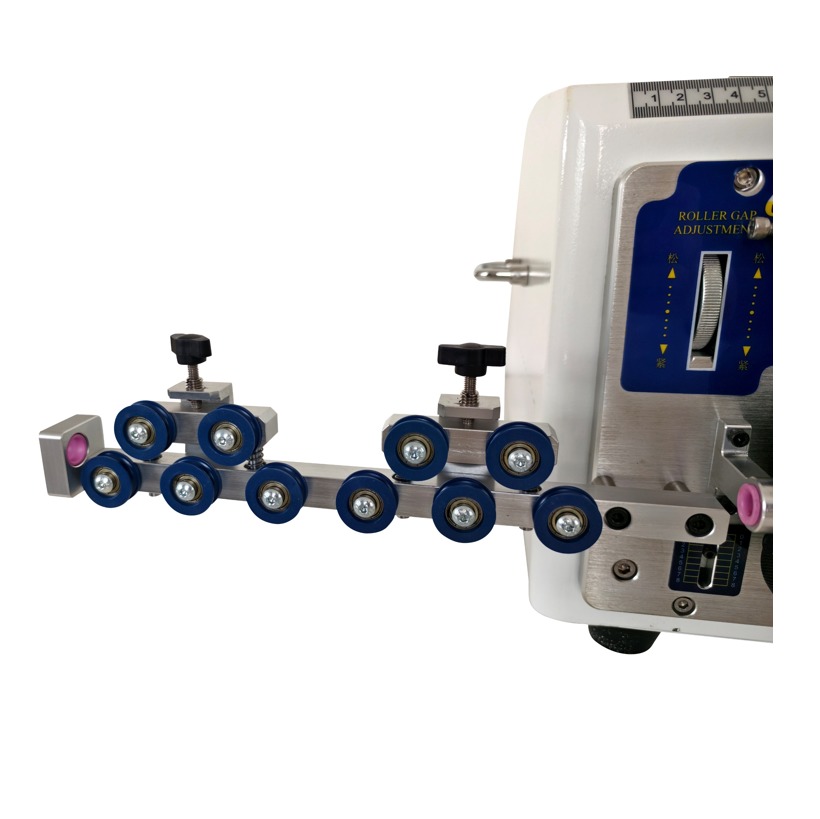

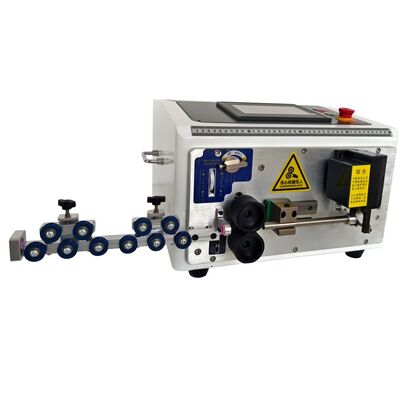

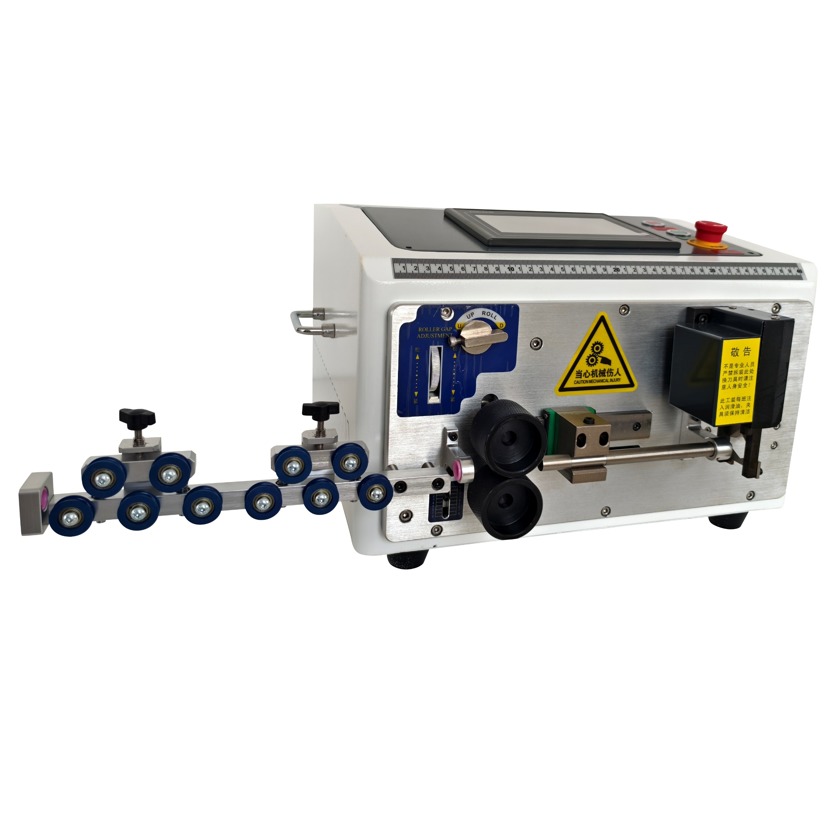

Details Images
HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine
HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine
HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine
Stripping Effect Display
HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine
HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine
HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine

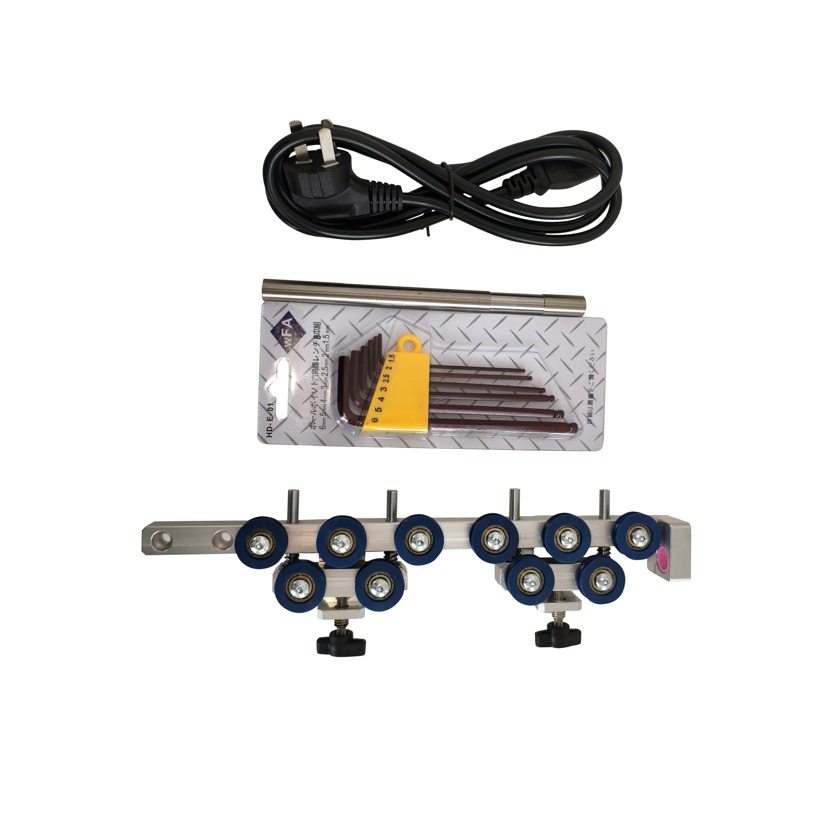

Product packaging
HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine
Exhibition & customer Photos
HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine
HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine
HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine
HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine
Company Profile
HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine
HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine
HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine
HR-10SQB Automatic Wire Stripping Machine Cable Bending Machine Wire Cutting Machine
FAQ
Q1. What is your delivery date?
A: The delivery date is about 5-7 working days after receive the payment.

Q2.What is the payment way ?
We provide Visa, Mastercard, T/t, Paypal, Apple Pay, Google Pay, Gc Real Time Bank Transfer.

Q3.What the service can you provide?
Support product customization, any requirements you need can be customized according to your requirements.

Q4.How about the after service and guarantee period?
We offer 1 year warranty since the arrival of the machine. Besides, we provide 7x24 hours Online support, or face-to-face online
communications, free training are available.

Q5.Do you provide the user manual and operating video to support us ?
A: We will provide the English user manual for free and the operating video is available. Our software is all English
