Home /Products/Cable Stripping Machine/HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine

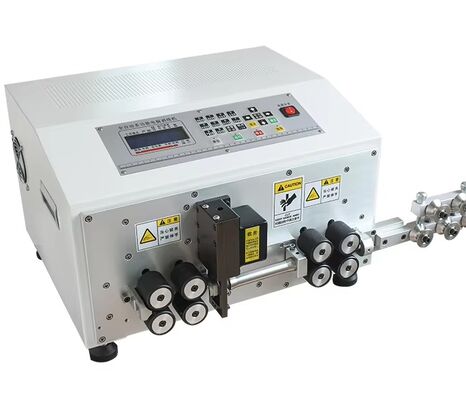

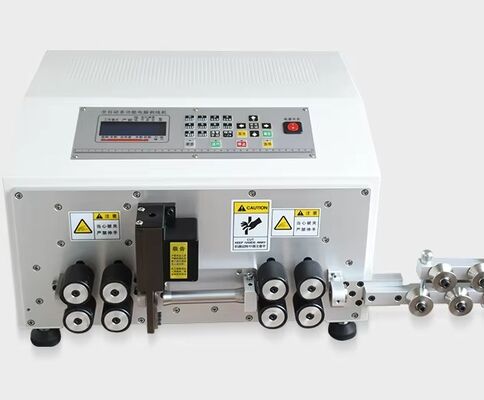

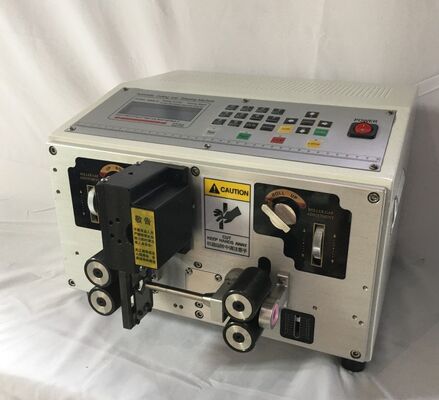

HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine

5
MOQ
$780
Price
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
Features Gallery Product Description Chat Now
Features
Specifications
Usage: Stripping
Dimension(L*W*H): 55*50*40cm
Power(W): 780W
Weight (KG): 50
Operating Mode: Automatic
Product Name: Automatic Cable Wire Stripping Twisting Machine
Cable SPE: 35mm SQ Max
Voltage: 110/220V 60/50Hz
Function: Wire Stripping
Wire Type: Electronic Wire, Silicone Wire, Glass Fiber Cable
Stripping Length: 1-999999mm
Cutting Tolerance: ±0.002Lmm
Highlight:

35mm2 Cable Stripping Machine

,

Automatic Wire Stripping Machine

,

Middle Wire Strip Machine
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: JUNSHENG
Model Number: HR-230SN
Payment & Shipping Terms
Product Description
Product Overview

HR-230SN 35MM SQ cable stripping machine

Fully automated Single wire stripping, Twisting at the same time with High efficiency output
Products Description
HR-230SN 35MM SQ cable stripping machine
Model
HR-230SN
Voltage
110/220V
Power
780W
Frequency
50HZ/60HZ
Operation System
32 bit Intelligent Control
Display
LCD
Cable SPE
35mm SQ Max
Cable Type
Isolation, coaxial cable, sheathed cable, multi-core cable.
Front Stripping length
80mm
End Stripping length
50mm
Cutting Tolerance
±0.002Lmm
Max Cutting length
99999mm
Speed of Stripping
1500-2000PCS/H
Blade Material
Tungsten Steel
Net Weight
60KGS
42Gross Weight
50KGS
Package
Export Carton with Foam
Package Size
60*55*45cm
Machine Size
55*50*40cm
Delivery Time
Within 3 working days after deposit
Warranty
Warranty for one year with lifetime maintain service
Related Products
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
Terminal crimping machine(OEM/ODM Applicator available)
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
Winding and tying machine
Binding Diameter: 8-30mm
Coil Diameter: 50-200mm
Binding Length: 75-140mm




HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
Cutting machine
Cutting Length: 0.1mm-9999.9mm
Cutting Diameter:25mm

Stripping Effect Display
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
Product packaging
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
Exhibition & customer Photos
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
Company Profile
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
HR-230SN 35mm SQ cable stripping machine wire stripping machine Middle Wire Strip Machine
FAQ
Q1. What is your delivery date?
A: The delivery date is about 5-7 working days after receive the payment.

Q2.What is the payment way ?
We provide Visa, Mastercard, T/t, Paypal, Apple Pay, Google Pay, Gc Real Time Bank Transfer.

Q3.What the service can you provide?
Support product customization, any requirements you need can be customized according to your requirements.

Q4.How about the after service and guarantee period?
We offer 1 year warranty since the arrival of the machine. Besides, we provide 7x24 hours Online support, or face-to-face online
communications, free training are available.

Q5.Do you provide the user manual and operating video to support us ?
A: We will provide the English user manual for free and the operating video is available. Our software is all English
