HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine

5
MOQ
$480
Price
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
Features Gallery Product Description Chat Now
Features
Specifications
Usage: Stripping
Dimension(L*W*H): 50*45*40cm(19.69*17.72*15.75in)
Power(W): 220W(0.30hp)
Weight (KG): 50
Operating Mode: Automatic
Product Name: Automatic Cable Wire Stripping Twisting Machine
Twisting Length: 0.1-30mm
Voltage: 110/220V 60/50Hz
Function: Wire Stripping
Wire Type: Electronic Wire, Silicone Wire, Glass Fiber Cable
Stripping Length: 0.1-99mm (depends On Material Of Wire)
Cutting Tolerance: ±0.002Lmm
Highlight:

Single Wire Stripping Machine

,

Cable Stripping Twisting Machine

,

Automatic Wire Cutting Stripping Machine
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: JUNSHENG
Model Number: HR-220S
Payment & Shipping Terms
Product Description
Product Overview

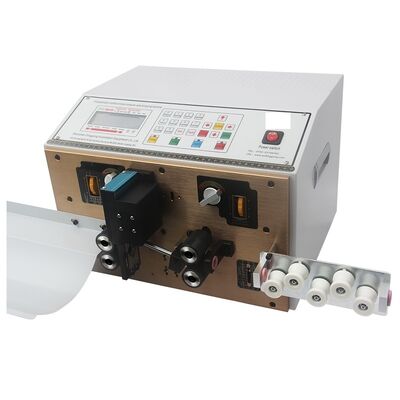

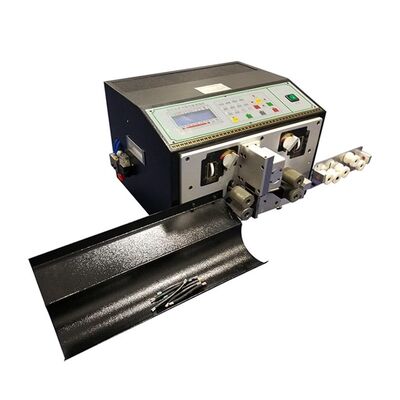

HR-220S Single Wire Stripping Twisting Machine

Fully automated Single wire stripping, Twisting at the same time with High efficiency output
Products Description
HR-220S Single Wire Stripping Twisting Machine
Model
HR-220S
Voltage
110/220V
Power
220W
Frequency
50HZ/60HZ
Operation System
32 bit Intelligent Control
Display
LCD
Max Stripping diameter
6.6mm

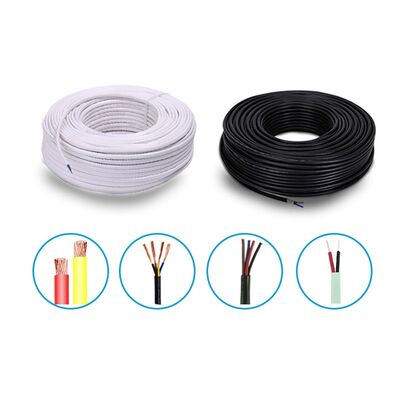

Cable Type
Isolation, coaxial cable, sheathed cable, multi-core cable.
Front Stripping length
0.1-250mm
End Stripping length
0.1-150mm
Cutting Tolerance
±0.002Lmm
Max Cutting length
99999mm
Speed of Stripping
5000-6000PCS/H
Blade Material
Tungsten steel/High-speed steel
Net Weight
40KGS
42Gross Weight
50KGS
Package
Export Carton with Foam
Package Size
55*50*45cm
Machine Size
50*45*40cm
Delivery Time
Within 3 working days after deposit
Warranty
Warranty for one year with lifetime maintain service
Simultaneously Cutting
2 pcs (supply ODM service)
Related Products
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
Terminal crimping machine(OEM/ODM Applicator available)
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
Winding and tying machine
Binding Diameter: 8-30mm
Coil Diameter: 50-200mm
Binding Length: 75-140mm




HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
Cutting machine
Cutting Length: 0.1mm-9999.9mm
Cutting Diameter:25mm

Stripping Effect Display
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
Product packaging
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
Exhibition & customer Photos
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
Company Profile
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220S Single-wire stripping machine Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
FAQ
Q1. What is your delivery date?
A: The delivery date is about 5-7 working days after receive the payment.

Q2.What is the payment way ?
We provide Visa, Mastercard, T/t, Paypal, Apple Pay, Google Pay, Gc Real Time Bank Transfer.

Q3.What the service can you provide?
Support product customization, any requirements you need can be customized according to your requirements.

Q4.How about the after service and guarantee period?
We offer 1 year warranty since the arrival of the machine. Besides, we provide 7x24 hours Online support, or face-to-face online
communications, free training are available.

Q5.Do you provide the user manual and operating video to support us ?
A: We will provide the English user manual for free and the operating video is available. Our software is all English
